With up to 1200 MHz of new channels, capacity is nearly tripled—so you can meet growing demands due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.

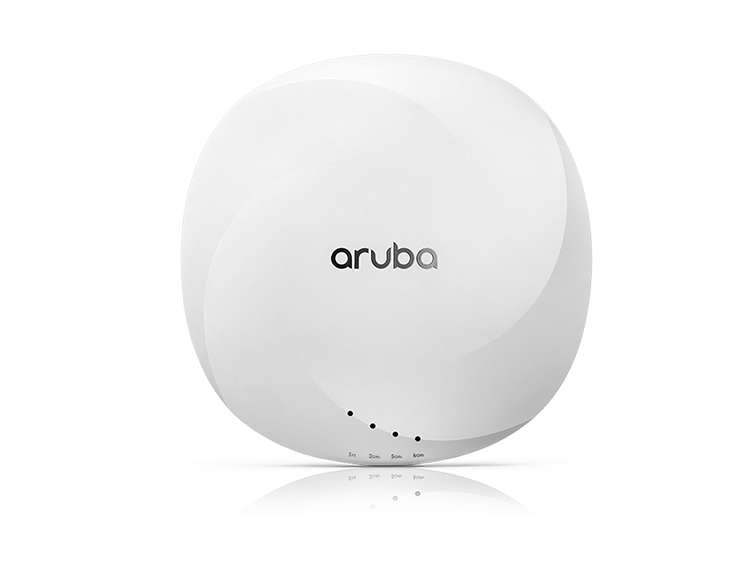

The 650 Series APs are indoor access points that are fully equipped to support the 6 GHz band for faster performance, wider channels, and minimal interference. Our flagship campus Wi-Fi 6E APs deliver 7.8 Gbps maximum aggregate data rates and 4x4 MU-MIMO.
Aruba 650 Series APs take advantage of the 6 GHz band for fast, secure connectivity plus configurable 5 Gbps dual Ethernet ports for high availability.
Provide hitless failover for data and power with two configurable HPE ® Smart Rate ethernet ports that can support 1, 2.5, or 5 Gbps.
Supports WPA3 and Enhanced Open as part of the Wi-Fi 6E standard for stronger guest access and data encryption.
By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. The three 4x4 MIMO radios of the platform deliver a combined peak datarate of up to 7.8Gbps.
Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices.
For operation in the 6GHz band, the 650 Series APs are part of the low power indoor (LPI) device class. This fixed indooronly class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
| AP-654 | External antenna models |
| AP type | Indoor, tri-radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 4x4 MIMO |
| 2.4GHz radio | Four spatial streams MIMO for up to 1,147Mbps wireless data rate with HE40 802.11ax client devices |
| 5GHz radio | Four spatial streams MIMO for up to 2.4Gbps wireless data rate with HE80 802.11ax client devices |
| 6GHz radio | Four spatial streams MIMO for up to 4.8Gbps wireless data rate with HE160 802.11ax client devices |
| Supported frequency bands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM 5.850 to 5.895GHz U-NII-4 5.925 to 6.425GHz U-NII-5 6.425 to 6.525GHz U-NII-6 6.525 to 6.875GHz U-NII-7 6.875 to 7.125GHz U-NII-8 |
| Available bands and channels | Dependent on configured regulatory domain (country) |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal |
| AP-654 | Two sets of four (female) RP-SMA connectors for external antennas (A0 through A3 corresponding with radio chains 0 through 3 for the 2.4GHz and 5GHz radios, and B0 through B3 corresponding with radio chains 0 through 3 for the 6GHz radio). Worst-case internal loss between radio interface and external antenna connectors: 1.0dB in 2.4GHz, 1.0dB in 5GHz and 1.0dB in 6GHz. |
| Operating conditions | Temperature: 0°C to +50°C / +32°F to +122°F Relative humidity: 5% to 95% ETS 300 019 class 3.2 environments AP is plenum rated for use in air-handling spaces |
| Storage conditions | Temperature: -25°C to +55°C / +13°F to +131°F Relative humidity: 10% to 100% ETS 300 019 class 1.2 environments |
| Transportation conditions | Temperature: -40°C to +70°C / -40°F to +158°F Relative humidity: up to 95% ETS 300 019 class 2.3 environments |
| Mean Time Between Failure (MTBF) | 544khrs (62yrs) at +25°C operating temperature |
| FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
| Wi-Fi Alliance | Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6GHz) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband Wi-Fi Location* Passpoint (release 2) |
| ArubaOS and Aruba InstantOS 8.10.0.0 |
| R3J15A | Aruba AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
| JZ370A | Aruba AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16 |
| R3J16A | Aruba AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
| Q9G69A | Aruba AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16 |
| R6T34A | Aruba AP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick |
| R3J17A | Aruba AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
| Q9G70A | Aruba AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16 |
| R3J18A | Aruba AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
| Q9G71A | Aruba AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface |
| R3J19A | Aruba AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
| R1C72A | Aruba AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box |
| R3T20A | Aruba AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts |
| R3K00A | Aruba AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector |
| R1C73A | Aruba AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W midspan injector |
| JY728A | Aruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable |
| R6Q99A | Aruba AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module |
| R2X45A | Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
| R2Y09A | Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
| R2Y10A | Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
