Aruba 518 Series Outdoor Ruggedized Access Point
Earn 1,563 points when you buy me!
Earn 1,563 points when you buy me!
This high-performance, ruggedized access point is designed to simultaneously serve multiple clients and traffic types in dense environments utilizing the Wi-Fi 6 standard.
Purpose-built to survive in the harshest weather-protected situations, the 518 Series APs can withstand exposure to extreme high and low temperatures, persistent moisture, and is sealed to keep out airborne contaminants. It’s everything you need for demanding environments.
The 518 Series delivers ruggedized APs for connectivity across the harshest environments.
Provides the speed and reliability needed for the harshest, most demanding environments.
Reduces cellular interference with Advanced Cellular Coexistence (ACC) to minimize the impact of interference from high-powered cellular base stations.
Purpose-built to survive in the harshest weather-protected environments, 518 Series APs withstand exposure to extreme high and low temperatures, persistent (non-precipitant) moisture, and are sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rate of 3 Gbps (HE80/HE40), the 518 Series APs deliver the speed and reliability needed for demanding environments.
The 518 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU MIMO) and cellular co-location. With up to 4 spatial stream and 160 MHz channel capability, the 518 provides groundbreaking wireless capabilities for any application.
This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio.
Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as Resource Units (RU).

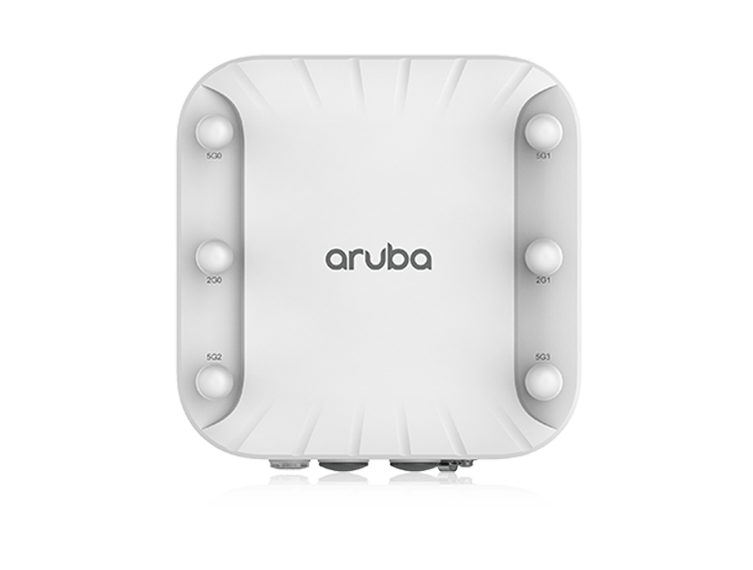

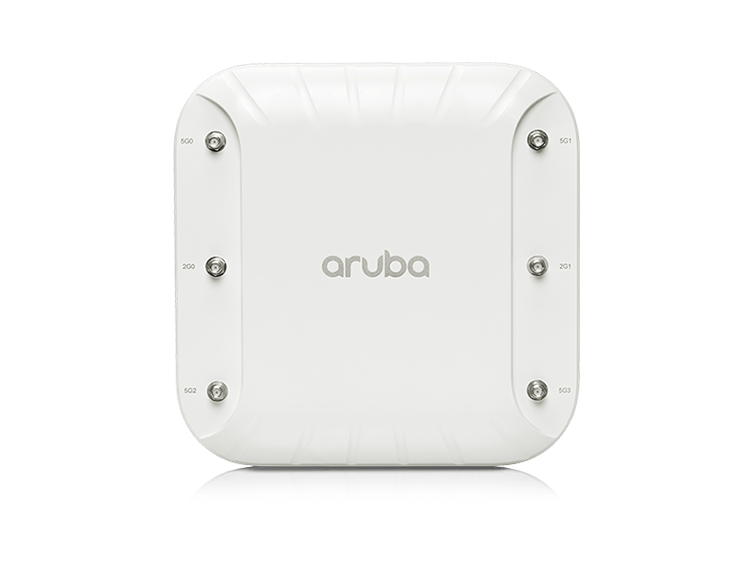

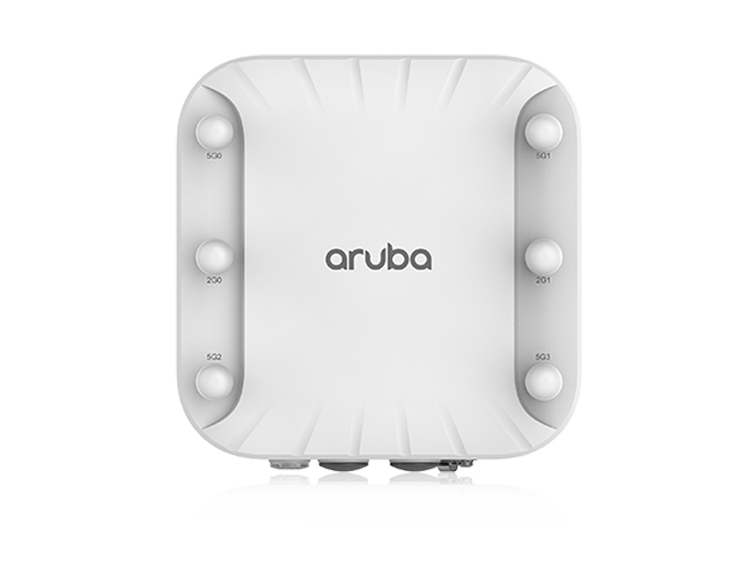

AP-518 | 5 GHz: Four RP-SMA connectors for external antenna operation 2.4 GHz Two RP-SMA connectors for external antenna operation |
AP type | Indoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max) |
5GHz radio | Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max) |
6GHz radio | - |
Supported frequency bands | 2.400 to 2.4835 GHz 5.850 to 5.925 GHz 5.825 to 5.875 GHz |
Available bands and channels | Dependent on configured regulatory domain |
Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) |
Dimensions/weight (excluding mount) | 211mm (W) x 211 mm (D) x 70 mm (H) / 8.31" (W) x 8.31" (D) x 2.76" (H) Weight: 1.5kg / 3.3 lbs |
Operating conditions | Temperature: -40°C to +55°C / -40°F to +140°F Humidity: 5% to 93% non-condensing internal to chassis |
Storage conditions | Temperature: -40°C to +70°C / -40°F to +158°F |
Operating Altitude | 3,000 m |

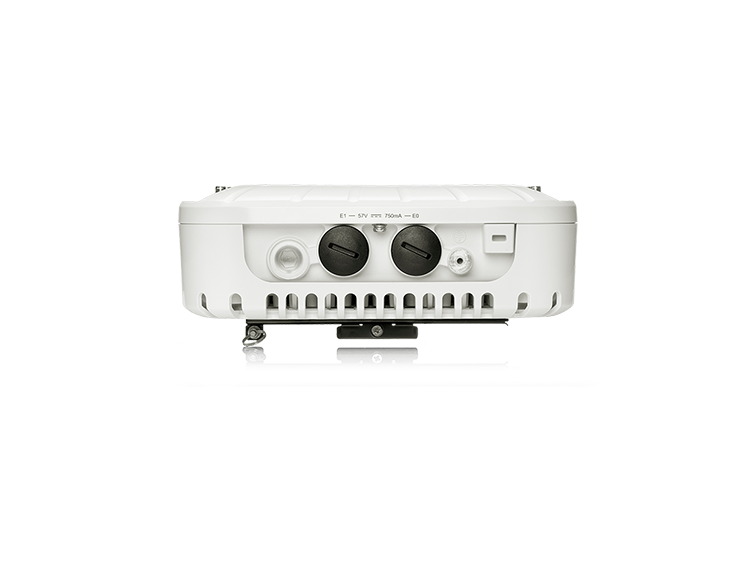

Wired network interface (E0) | Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5Gbps speed complies with NBase-T and 802.3bz specifications PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher) 802.3az Energy Efficient Ethernet (EEE) |
Wired network interface (E1) | Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 48vDC (nominal) 802.3at/bt (Class4 or higher) |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Passpoint (Release 2) with ArubaOS and Instant |
ArubaOS & Aruba InstantOS 8.7.0.0 |
R4H02A | Aruba AP-518 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H03A | Aruba AP-518 (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4G99A | Aruba AP-518 (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H00A | Aruba AP-518 (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H01A | Aruba AP-518 (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H04A | Aruba AP-518 (EG) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H05A | Aruba AP-518 (IL) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H06A | Aruba AP-518 (JP) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H07A | Aruba AP-518 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R4H08A | Aruba AP-518 (US) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
R3J15A | AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
R3J16A | AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
R3J17A | AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
R3J18A | AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
R3J19A | AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
R3T20A | AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts |
JW052A | AP-270-MNT-V1 AP-270 Series Outdoor Pole/Wall Long Mount Kit |
JW053A | AP-270-MNT-V2 AP-270 Series Outdoor Pole/Wall Short Mount Kit |
JW054A | AP-270-MNT-H1 AP-270 Series Outdoor AP Hanging or Tilt Install Mount Kit |
JW055A | AP-270-MNT-H2 AP-270 Series Access Flush Wall or Ceiling Mount |
R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector |
R1C73A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector |
JW629A | PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
JW630A | PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector |
JW700A | PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector |
JW701A | PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector |
R7T40A | PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
JW066A | AFC2DL60-00 Indoor AP RPSMAm to Nf 60cm Flexible Indoor Rated RF Cable |
JW067A | AFCSJMTM-00 Indoor AP RPSMAm to Nm 60cm Flexible Indoor Rated RF Cable |
