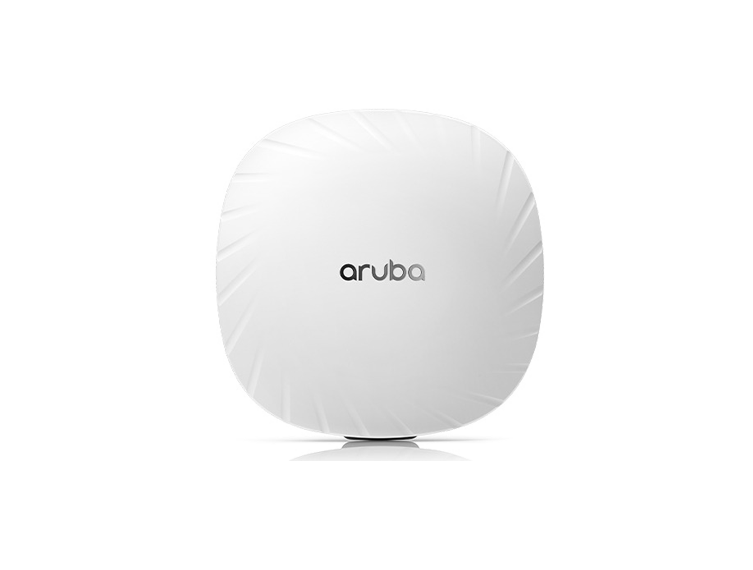

Wi-Fi 6 solution designed for indoor environments, offering speed and reliability for smaller offices and clinics, and supports growth.
Built on Wi-Fi 6 standards, 500 Series APs include features such as OFDMA and Target Wake Time for better multi-user performance, improved efficiency, and green energy savings.
Supports wired and wireless connectivity (in a single device) for up to 1.5 Gbps wireless and 256 associated clients per radio.
Delivers speed and reliability for work and indoor environments.
Flexible and scalable, it automatically enforces consistent policies across wired and wireless networks.
Handles multiple clients on each channel regardless of device or traffic type, using AI to eliminate sticky client issues.
These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a combined peak datarate of up to 1.49Gbps, they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.
The 500 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA), and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 500 Series provides groundbreaking wireless capabilities for budget-conscious deployments.
This capability allows Aruba’s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.
Aruba’s patented AI-powered ClientMatch technology eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. Client Match steers traffic from the noisy 2.4 GHz band to the preferred 5 GHz or 6 GHz band depending on client capabilities. ClientMatch also dynamically steers traffic to load balance APs to improve the user experience.
| AP-505 | Internal antenna models |
| AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO |
| 2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously |
| 5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
| Supported frequency bands | 2.400 to 2.4835GHz 5.850 to 5.895GHz U-NII-4 |
| Available bands and channels | Dependent on configured regulatory domain |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units |
| AP-505 | Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. |
| Dimensions/weight (AP-505; unit without mount bracket) | 160mm (W) x 161mm (D) x 37mm (H) Weight: 500g |
| Dimensions/weight (AP-505; shipping) | 193mm (W) x 183mm (D) x 63mm (H) Weight: 645g |
| Operating conditions | Temperature: 0C to +50C / +32F to +122F Humidity: 5% to 93% non-condensing AP is plenum rated for use in air-handling spaces ETS 300 019 class 3.2 environments |
| Storage conditions | Temperature: -40C to +70C / -40F to +158F Humidity: 5% to 93% non-condensing ETS 300 019 classes 1.2 and 2.3 environments |
| Mean Time Between Failure (MTBF) | 1.3Mhrs (148yrs) at +25°C operating temperature |
| FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
| Wi-Fi Alliance | Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6GHz) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband Wi-Fi Location* Passpoint (release 2) |
| ArubaOS and Aruba InstantOS 8.6.0.0 |
| R2H25A | Aruba AP-505 (EG) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP |
| R2H26A | Aruba AP-505 (IL) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP |
| R2H27A | Aruba AP-505 (JP) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP |
| R2H28A | Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP |
| R2H29A | Aruba AP-505 (US) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP |
| JZ370A | AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16 |
| Q9G69A | AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16 |
| R6T34A | AP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick |
| Q9G70A | AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16 |
| Q9G71A | AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface |
| R1C72A | AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box |
| R3T20A | AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts |
| R3J15A | AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
| R3J16A | AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
| R3J17A | AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
| R3J18A | AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
| R3J19A | AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
| R6P68A | AP-POE-AFGE 1-Port GbE 802.3af 15.4W midspan injector |
| R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector |
| R3K00A | AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector |
| JY728A | Aruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable |
| R2X45A | Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
| R2Y09A | Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
| R2Y10A | Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
