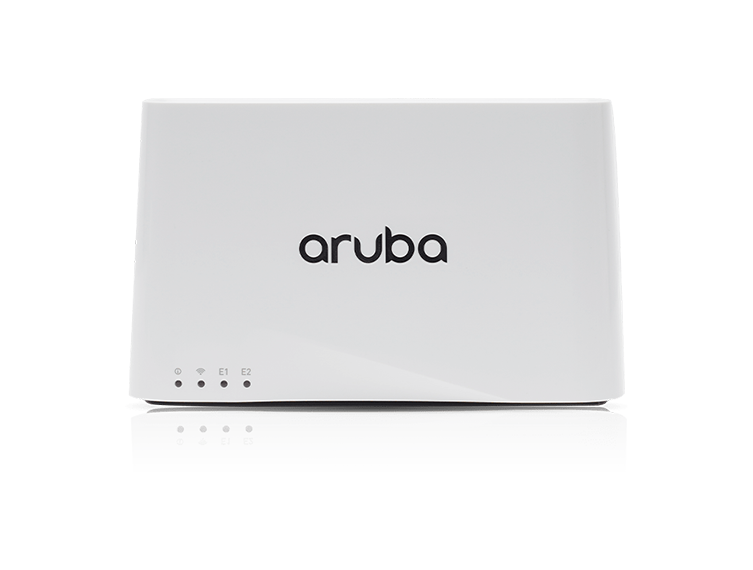

The multifunctional Aruba 203R Remote AP delivers secure and fast 802.11ac wireless and wired network access to corporate resources for branch and home offices.
The highly secure and reliable 203R Series ensures corporate applications work remotely without disruption. Compact and cost-effective, they’re the perfect access point for home and small branch offices.
802.11ac access point for home and small branch offices
Compact and cost-effective, the 203R Series APs offer a variety of enterprise-class features giving remote workers the same high-quality Wi-Fi 5 experience they get at corporate headquarters.
Delivering Wi-Fi 5 connectivity (802.11ac, Wave 1), the 203R Series APs are software-configurable to operate in either 1x1 dual radio mode or 2x2 single radio mode. Easily deployed as a wall-mounted or desk-mounted access point, it’s perfect for home offices and small branch offices.
The multifunctional 203R Series remote APs support both wall-box and desk-mount deployments, delivering secure and fast 802.11ac wireless and wired network access to corporate resources.
With no IT support required, the 203R Series APs deliver remote access point (RAP) benefits from the convenience of a small office or home.
Unique in the industry, the compact Aruba 203R remote AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band when operating in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203R AP are 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band.
The 203R AP offers a variety of enterprise-class features, including role-based network access, policy-based forwarding, and Adaptive Radio Management (ARM), which gives remote workers the same high-quality Wi-Fi experience they get at corporate headquarters. When additional capacity is desired, this low-cost 203R AP can be quickly added to an existing Aruba WLAN to improve network performance.
Managed by the Aruba Mobility Controller, the 203R AP supports centralized configuration, data encryption, policy enforcement and network services. It extends corporate resources to remote locations by establishing site-to-site VPN tunnels to the data center.
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, APs can configure themselves when powered up, slashing the cost and time to deploy wireless in remote branches and home offices.
IOT PLATFORM CAPABILITIES
| AP-203R | Unified flexible radio 802.11ac remote AP with internal antennas. Supports wall-box and desk mount deployments |
| AP type | 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO1, or 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x11 |
| 2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices) |
| 5GHz radio | Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices |
| Supported frequency bands | 2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) |
| Dimensions/weight (unit, with cable cover) | 155mm (W) x 50mm (D) x 95mm (H) Weight: 320g (AP-203R) |
| Dimensions/weight (shipping) | 224mm (W) x 159mm (D) x 78mm (H) Weight: 510g (AP-203R) |
| Operating conditions | Temperature: 0° C to +40° C (+32° F to +104° F) Humidity: 5% to 93% non-condensing |
| Storage conditions | Temperature: -40° C to +70° C (-40° F to +158° F) |
| Power Sources | The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz. |
| Maximum (worst-case) power consumption | An optional PoE power injector is sold separately |
| Maximum (worst-case) power consumption in idle mode | 4.6W |
| Maximum (worst-case) power consumption in deep-sleep mode | 7.5W |
| Regulatory compliance | FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
| Wi-Fi Alliance | CB Scheme Safety, cTUVus Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac |
| ArubaOS™ 6.5.2.0/8.2.0.0 Aruba InstantOS™ 6.5.2.0/8.2.0.0 |
| JY712A | Aruba AP-203R (RW) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY713A | Aruba AP-203R (RW) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY714A | Aruba AP-203R (US) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY715A | Aruba AP-203R (US) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY716A | Aruba AP-203R (JP) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY717A | Aruba AP-203R (JP) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY718A | Aruba AP-203R (IL) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY719A | Aruba AP-203R (IL) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY976A | Aruba AP-203R (EG) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY977A | Aruba AP-203R (EG) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas |
| JY720A | Aruba AP-203RP (RW) Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY721A | Aruba AP-203RP (RW) FIPS/TAA Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY722A | Aruba AP-203RP (US) Flex-radio 802.11ac 2x2 PoE Unified Remote AP and Internal Antennas |
| JY723A | Aruba AP-203RP (US) FIPS/TAA Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY724A | Aruba AP-203RP (JP) Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY725A | Aruba AP-203RP (JP) FIPS/TAA Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY726A | Aruba AP-203RP (IL) Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY727A | Aruba AP-203RP (IL) FIPS/TAA Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY978A | Aruba AP-203RP (EG) Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| JY979A | Aruba AP-203RP (EG) FIPS/TAA Flex-radio 802.11ac 2x2 PoE Unified Remote AP with Internal Antennas |
| J9869A | HPE 1.8m C7 to AS/NZS 3112 Power Cord |
| J9870A | HPE 1.8m C7 to BS 1363/A Power Cord |
| J9871A | HPE 1.8m C7 to CEE 7-xvi Power Cord |
| J9872A | HPE 1.8m C7 to CEI 23-50 Power Cord |
| J9873A | HPE 1.8m C7 to CNS 690 2-pole Power Cord |
| J9874A | HPE 1.8m C7 to GB 1002 Power Cord |
| J9875A | HPE 1.8m C7 to IRAM 2063 Power Cord |
| J9876A | HPE 1.8m C7 to IS 1293 Power Cord |
| J9877A | HPE 1.8m C7 to N1/15J JP Power Cord |
| J9878A | HPE 1.8m C7 to KSC 8305 2-wire Power Cord |
| J9879A | HPE 1.8m C7 to BR3 10Amp 2-pole Power |
| J9880A | HPE 1.8m C7 to NEMA 1-15P NA Power Cord |
| J9881A | HPE 1.8m C7 to NEMA 1-15P Power Cord |
