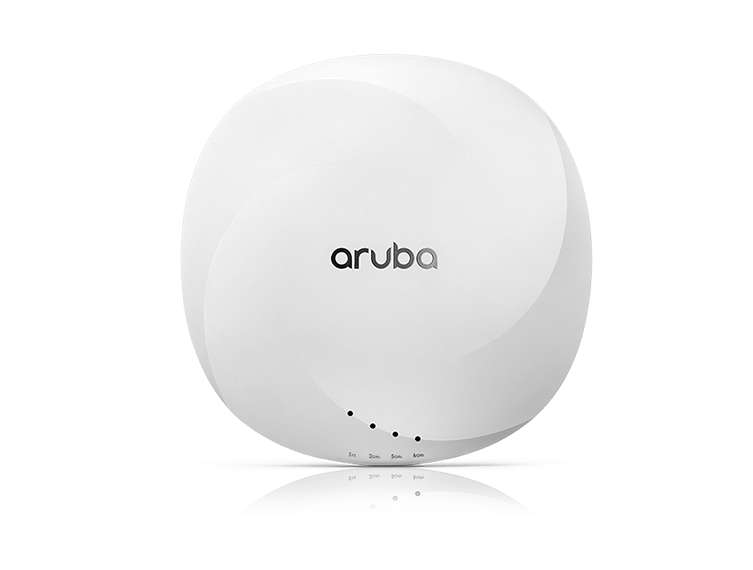

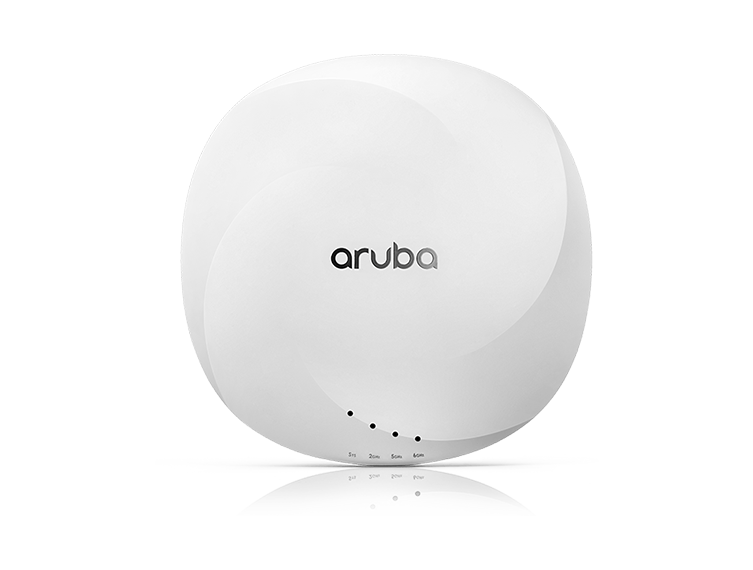

Aruba AP-634 Access Points
Earn 1,195 points when you buy me!
Earn 1,195 points when you buy me!
For enterprises who will need more wireless capacity and wider channels to grow, Aruba 630 Series APs take advantage of the 6 GHz band via three dedicated radios.
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9Gbps aggregate peak).
Aruba 630 Series APs take advantage of the 6 GHz band and include ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps and deliver fast, secure connectivity.
Ensures high availability with two 2.5 Gbps HPE® Smart Rate ethernet ports for hitless failover for both data and power.
Includes Wi-Fi 6E standards such as WPA3 and Enhanced Open and WPA2-MPSK for stronger encryption and authentication.
Improves security and ease of management by allowing IT to centrally configure and automatically enforce role-based policies across wired and wireless networks.
For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).
Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.
The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.
AP-634 | External antenna models |
AP type | Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices |
5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices |
6GHz radio | Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices |
Supported frequency bands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM 5.850 to 5.895GHz U-NII-4 5.925 to 6.425GHz U-NII-5 6.425 to 6.525GHz U-NII-6 6.525 to 6.875GHz U-NII-7 6.875 to 7.125GHz U-NII-8 |
Available bands and channels | Dependent on configured regulatory domain (country) |
Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units (37 for the 6GHz radio) |
AP-634 | Two sets of two (female) RP-SMA connectors for external antennas (A0 & A1 corresponding with radio chains 0 and 1 for the 2.4GHz and 5GHz radios, and B0 & B1 corresponding with radio chains 0 and 1 for the 6GHz radio). Worst-case internal loss between radio interface and external antenna connectors: 1.0dB in 2.4GHz, 1.0dB in 5GHz and 1.0dB in 6GHz. |
Dimensions/weight (AP-634; unit without mount bracket) | - |
Dimensions/weight (AP-634; shipping) | - |
Operating conditions | Temperature: 0°C to +50°C / +32°F to +122°F Relative humidity: 5% to 95% ETS 300 019 class 3.2 environments AP is plenum rated for use in air-handling spaces |
Storage conditions | Temperature: -25°C to +55°C / +13°F to +131°F Relative humidity: 10% to 100% ETS 300 019 class 1.2 environments |
Transportation conditions | Temperature: -40°C to +70°C / -40°F to +158°F Relative humidity: up to 95% ETS 300 019 class 2.3 environments |
Mean Time Between Failure (MTBF) | 520 khrs (59 yrs) at +25C operating temperature |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
Wi-Fi Alliance | Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6GHz) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband Wi-Fi Location* Passpoint (release 2) |
ArubaOS and Aruba InstantOS 8.9.0.0 |
R3J15A | Aruba AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
JZ370A | Aruba AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16 |
R3J16A | Aruba AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
Q9G69A | Aruba AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16 |
R6T34A | Aruba AP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick |
R3J17A | Aruba AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
Q9G70A | Aruba AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16 |
R3J18A | Aruba AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
Q9G71A | Aruba AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface |
R3J19A | Aruba AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
R1C72A | Aruba AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box |
R3T20A | Aruba AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts |
R3K00A | Aruba AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector |
R1C73A | Aruba AP-635 (JP) Tri-radio 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
JY728A | Aruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable |
R6Q99A | Aruba AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module |
R2X45A | Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
R2Y09A | Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
R2Y10A | Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
