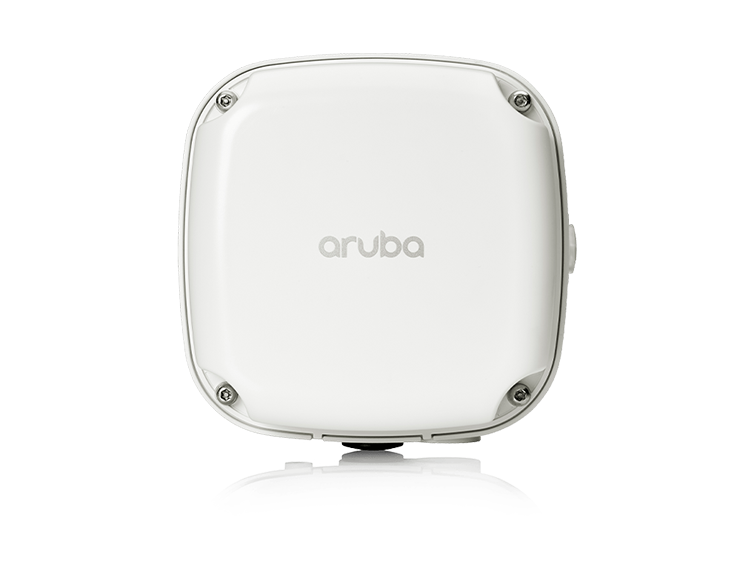

Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds.
Supporting higher speed and higher user densities, the 560 Series APs maximize performance and efficiency with support for OFDMA and MU-MIMO technologies, enabling the most efficient communication between the client and access point.
Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.
Delivers higher speed and reliability for environmentally challenging work and indoor environments.
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.

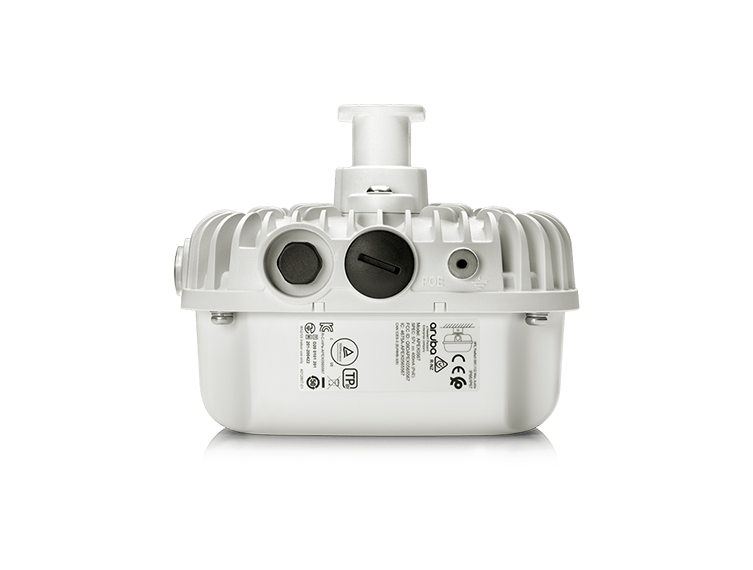

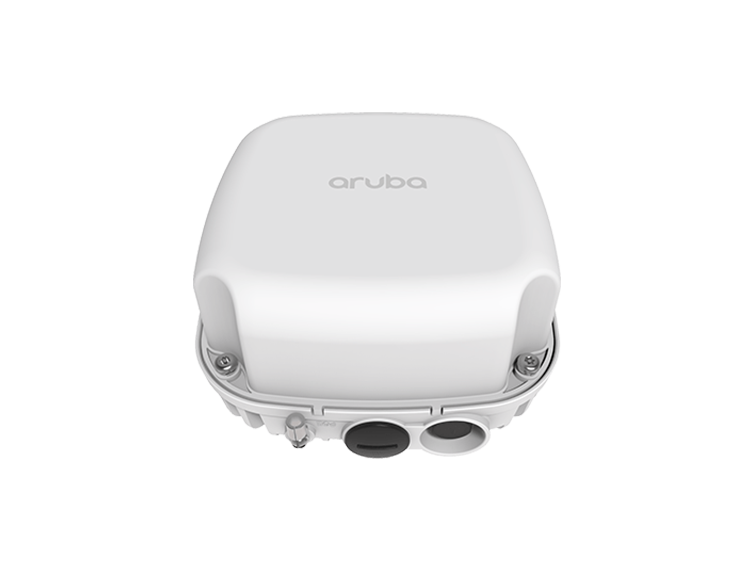

Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
Aruba’s advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
The 560 Series access points (APs) are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 2 spatial streams, the 560 Series provides reliable connectivity for most any application.
OFDMA capability allows Aruba APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel yet not competing for airtime and bandwidth.
| AP-567 | Built-in 90°H x 90°V Directional Antennas 5 GHz Antennas 6.8 dBi 2.4 GHz Antennas 7.1 dBi BLE/802.15.4 Antennas 3.0 dBi |
| AP type | Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO |
| 2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously |
| 5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
| Supported frequency bands | 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz 5.850 to 5.875 GHz |
| Available bands and channels | Dependent on configured regulatory domain |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) |
| Dimensions/weight (AP-567; excluding mount) | 16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H) 1.09 kg/2.4 lbs |
| Operating conditions | Temperature: -40° C to +55° C (-40° F to +140° F) with full solar loading Humidity: 5% to 95% non-condensing internal Rated for operation in all weather conditions |
| Storage conditions | Temperature: -40° C to +70° C (-40° F to +158° F) |
| Operating Altitude | 3,000 m |
| Wired network interface (E0) | E0: 10/100/1000BASE-T (RJ-45) Auto-sensing link speed and MDI/MDX PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 or higher) 802.3az Energy Efficient Ethernet (EEE) |
| FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017 – Railway Applications EN 50121-1:2017 – Railway EMC EN 50121-3-2 – Railway EMC EN 50121-4:2016 – Railway Immunity IEC 61373 ed2:2008 – Railway Shock and Vibration For more country-specific regulatory information and approvals, please see your Aruba representative. |
| CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Passpoint (Release 2) with ArubaOS and Instant 8.3+ |
| ArubaOS and Aruba InstantOS 8.7.1.0 |
| R4W40A | Aruba AP-565 (EG) 802.11ax Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP |
| R4W41A | Aruba AP-565 (IL) 802.11ax Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP |
| R4W42A | Aruba AP-565 (JP) 802.11ax Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP |
| R4W43A | Aruba AP-565 (RW) 802.11ax Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP |
| R4W44A | Aruba AP-565 (US) 802.11ax Dual 2x2:2 Radio Integrated Omni Ant Outdoor AP |
| R4W45A | Aruba AP-567 (EG) 802.11ax Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP |
| R4W46A | Aruba AP-567 (IL) 802.11ax Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP |
| R4W47A | Aruba AP-567 (JP) 802.11ax Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP |
| R4W48A | Aruba AP-567 (RW) 802.11ax Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP |
| R4W49A | Aruba AP-567 (US) 802.11ax Dual 2x2:2 Radio Integrated Directional Ant Outdoor AP |
| R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector |
| JW629A | PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
| JW630A | PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector |
| JW700A | PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector |
| JW701A | PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector |
| R7T40A | PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
