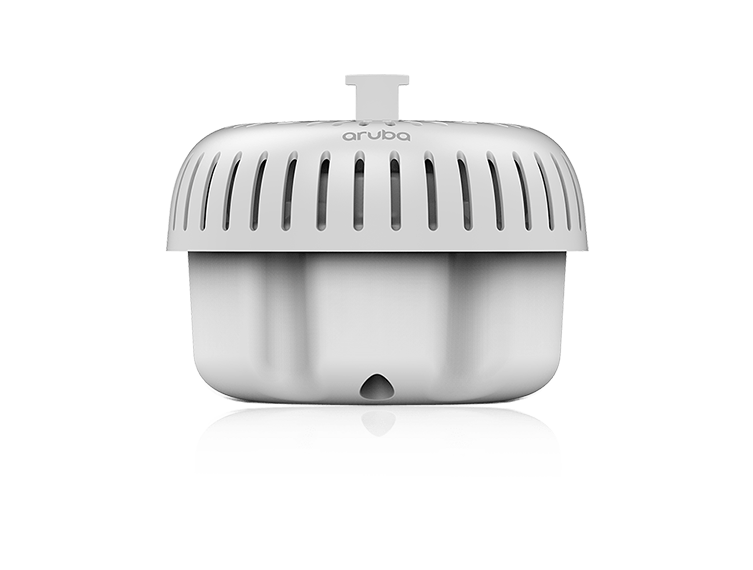

Aruba AP-577 Outdoor Access Point
Earn 1,898 points when you buy me!
Earn 1,898 points when you buy me!
Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots.
Built for Wi-Fi 6 standards and high-density outdoor connectivity, the 570 Series APs maximize performance and efficiency. Supports OFDMA and MU-MIMO multiuser technologies, enabling the most efficient communication between the client and AP.
Ensures predictable, secure, and optimized connectivity with centralized policy management for large, outdoor, harsh weather events and environments.
Delivers higher data rates for the harshest environments.
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.
Handles multiple clients, regardless of device or traffic type, plus WPA3 and Enhanced Open increases enterprise security.
Purpose-built to survive in the harshest outdoor environments, 570 Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rates of 3 Gbps (HE80/HE40), the 570 Series APs deliver the speed and reliability needed for demanding environments.
The 570 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO) and cellular co-location. With up to 4 spatial stream and 160 MHz channel capability, the 570 Series provides groundbreaking wireless capabilities for any application.
Aruba Wi-Fi 6 APs include an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors. This allow organizations to leverage the 570 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
Ideal for IoT solutions that communicate infrequently, this Wi-Fi 6 capability allows IoT devices to use 802.11ax protocol. TWT coordinates with client devices to allow them to sleep for extended periods and use shorter wake times to communicate before returning to sleep. This substantially extends the useful operating life of Wi-Fi 6 based battery powered sensors.
AP-577 | Built in 90°H x 90°V Directional Antennas 5 GHz: Antennas 5.6 dBi 2.4 GHz: Antennas 6.8 dBi BLE/Zigbee: Integrated omnidirectional antennas with peak gain of 8.4dBi |
AP type | Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max) Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical) Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio |
5GHz radio | Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical) |
Supported frequency bands | 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz 5.825 to 5.875 GHz |
Available bands and channels | Dependent on configured regulatory domain |
Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) |
AP-577 Dimensions/weight (excluding mount) | 230mm (W) x 220mm (D) x 140mm (H) / 9.0" (W) x 8.7" (D) x 5.6" (H) 2.1 kg / 4.6 lbs |
Operating conditions | Temperature: -40°C to +65°C / -40°F to +149°F with full solar loading Humidity: 5% to 93% non-condensing internal Rated for operation in all weather conditions |
Storage conditions | Temperature: -40°C to +70°C / -40°F to +158°F |
Operating Altitude | 3,000 m |
Wired network interface (E0) | Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5Gbps speed complies with NBase-T and 802.3bz specifications PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher) 802.3az Energy Efficient Ethernet (EEE) |
Wired network interface (E1) | Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher) |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Passpoint (Release 2) with ArubaOS and Instant |
ArubaOS & Aruba InstantOS 8.7.0.0 |

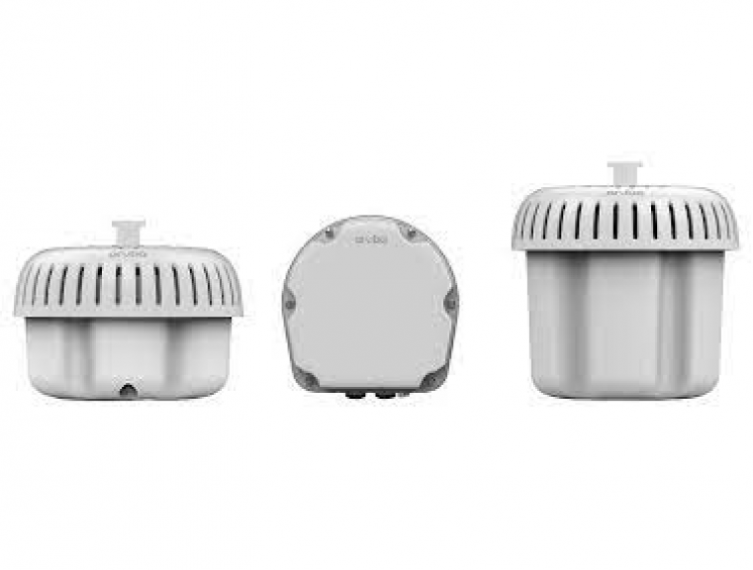

R4H09A | Aruba AP-574 (EG) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
R4H10A | Aruba AP-574 (IL) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
R4H11A | Aruba AP-574 (JP) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
R4H12A | Aruba AP-574 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
R4H13A | Aruba AP-574 (US) 802.11ax 2x2:2/4x4:4 Dual Radio 6xNf Connectorized Outdoor AP |
R4H14A | Aruba AP-575 (EG) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
R4H15A | Aruba AP-575 (IL) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
R4H16A | Aruba AP-575 (JP) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
R4H17A | Aruba AP-575 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
R4H18A | Aruba AP-575 (US) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP |
JW052A | AP-270-MNT-V1 AP-270 Series Outdoor Pole/Wall Long Mount Kit |
JW053A | AP-270-MNT-V2 AP-270 Series Outdoor Pole/Wall Short Mount Kit |
JW054A | AP-270-MNT-H1 AP-270 Series Outdoor AP Hanging or Tilt Install Mount Kit |
JW055A | AP-270-MNT-H2 AP-270 Series Access Flush Wall or Ceiling Mount |
R6W11A | AP-270-MNT-H3 AP-270 Series Outdoor AP Hanging or Dual-Tilt Install Mount Kit |
R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector |
R1C73A | AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W Indoor Midspan Injector |
JW629A | PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
JW630A | PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector |
JW700A | PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector |
JW701A | PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector |
R7T40A | PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
R2X45A | Aruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
R2Y09A | Aruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
R2Y10A | Aruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
