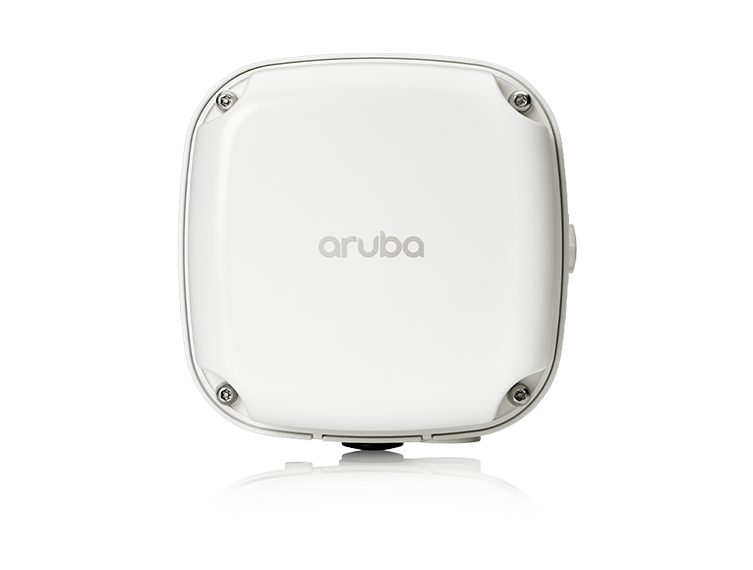

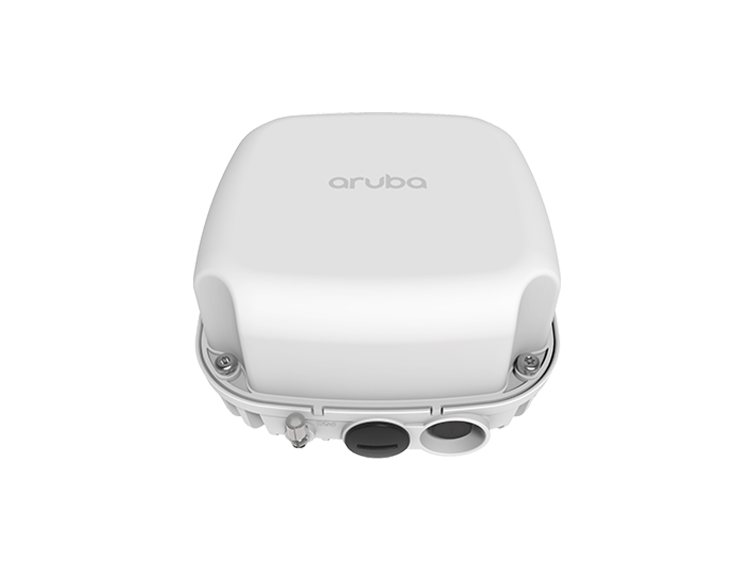

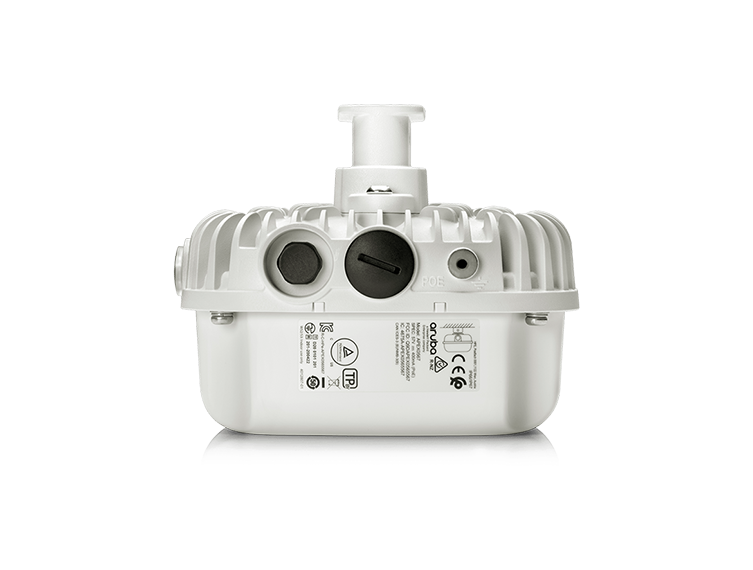

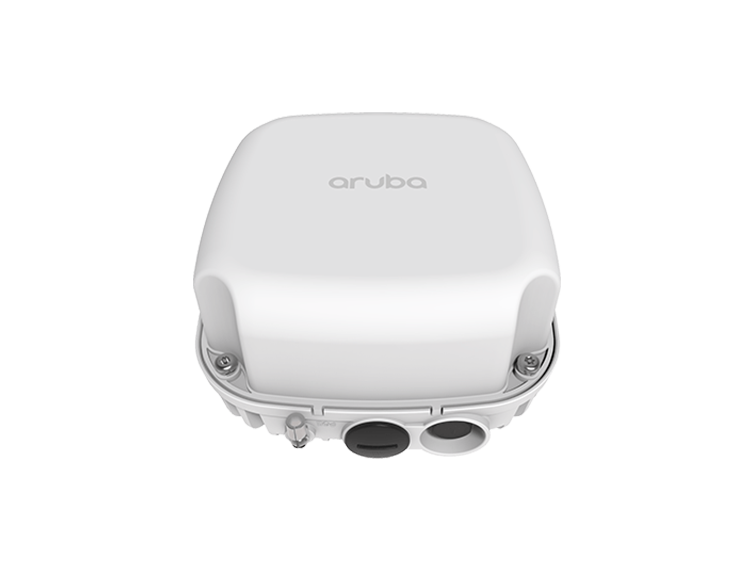

Aruba 565EX Wi-Fi 6 HazLoc Access Point

MFG.PART: R4W63A
Item Condition : Brand New

Earn 1,536 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
Aruba 565EX Wi-Fi 6 HazLoc Access Point
Add a Review
Be the first to review this product
Special Price $1,536.99 Regular Price $2,299.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 1 people are watching this product
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging hazardous locations.
Details

Features

Multi-user Efficiency with Wi-Fi 6

The 560EX Series Hazardous Location APs feature Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations like oil and gas and potentially explosive environments – with Wi-Fi 6 to support critical access and IoT functionality.

Ultimate efficiency

Supporting higher speed and higher user densities, the 560EX Series APs maximize performance and efficiency with support for OFDMA and MU-MIMO technologies, enabling the most efficient communication between the client and access point.

Groundbreaking Wi-Fi 6 capabilities

Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.

1.5 Gbps maximum speed (HE80/HE20)

Delivers higher speed and reliability for hazardous locations like oil and gas and potentially explosive environments.

Dynamic Segmentation and policy-enforcement firewalls

Enforces (automatically) consistent policies across all networks, keeping users and devices secure.

Engaging experiences delivered with automation and security.

Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.

Aruba’s advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.

INCREDIBLE EFFICIENCY

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.

Features include Orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 2 spatial streams, the 560 Series provides reliable connectivity for most any application.

Advantages of OFDMA

OFDMA capability allows Aruba APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel yet not competing for airtime and bandwidth.

Tech Specs

Tech specs

HARDWARE VARIANTS

AP-565EXBuilt-in Omni Directional Antennas
5 GHz Antennas 5.4 dBi
2.4 GHz Antennas 3.2 dBi
BLE/802.15.4 Antennas 3.3d Bi

WI-FI RADIO SPECIFICATIONS

AP typeOutdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
2.4GHz radioTwo spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
5GHz radioTwo spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
Supported frequency bands

2.400 to 2.4835 GHz
5.150 to 5.250 GHz

5.250 to 5.350 GHz (U-NII-2A)

5.470 to 5.725 GHz (U-NII-2C)

5.725 to 5.850 GHz (U-NII-3/ISM)

5.850 to 5.875 GHz (U-NII-4)

Available bands and channelsDependent on configured regulatory domain
Supported radio technologies

802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)

MECHANICAL SPECIFICATIONS

Dimensions/weight (AP-565EX; excluding mount)16.5 cm (W) x 16.5 cm (D) x 11 cm (H)
6.5” (W) x 6.5” (D) x 4.3” (H)
1.03 kg/2.27 lbs

ENVIRONMENTAL SPECIFICATIONS

Operating conditionsTemperature: -40° C to +55° C (-40° F to +140° F) with full solar loading
Humidity: 5% to 95% non-condensing internal
Rated for operation in all weather conditions
Storage conditionsTemperature: -40° C to +70° C (-40° F to +158° F)
Operating Altitude3,000 m

ADDITIONAL INTERFACES

Wired network interface (E0)Auto-sensing link speed and MDI/MDX
PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)
Bluetooth 5 and 802.15.4 radio2.4 GHz
Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity

REGULATORY COMPLIANCE

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1, EN60601-1-2
 Railway Certs:
EN 50155:2017 – Railway Applications
EN 50121-1:2017 – Railway EMC
EN 50121-3-2 – Railway EMC
EN 50121-4:2016 – Railway Immunity
IEC 61373 ed2:2008 – Railway Shock and Vibration
For more country-specific regulatory information and approvals, please see your Aruba representative.

CERTIFICATIONS

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with Wave 2 features)
Passpoint® (Release 2) with ArubaOS and Instant 8.3+

MINIMUM SOFTWARE VERSIONS

ArubaOS and Aruba InstantOS 8.7.1.0
Models

Access Points

Ordering Information

Aruba 560EX Series ordering information

Part Number Description

R4W62AAruba AP-565EX (RW) 802.11ax Dual 2x2:2 Radio Internal Omni Antenna Outdoor HazLoc AP
R4W63AAruba AP-565EX (US) 802.11ax Dual 2x2:2 Radio Internal Omni Antenna Outdoor HazLoc AP
R4W60AAruba AP-565EX (EG) 802.11ax Dual 2x2:2 Radio Internal Omni Antenna Outdoor Hazloc AP
R4W28AAruba AP-565EX (IL) 802.11ax Dual 2x2:2 Radio Internal Omni Antenna Outdoor HazLoc AP
R4W61AAruba AP-565EX (JP) 802.11ax Dual 2x2:2 Radio Internal Omni Antenna Outdoor HazLoc AP
R4W66AAruba AP-567EX (RW) 802.11ax Dual 2x2:2 Radio Internal Directional Ant Outdoor HazLoc AP
R4W67AAruba AP-567EX (US) 802.11ax Dual 2x2:2 Radio Internal Directional Ant Outdoor HazLoc AP
R4W64AAruba AP-567EX (EG) 802.11ax Dual 2x2:2 Radio Internal Directional Ant Outdoor HazLoc AP
R4W29AAruba AP-567EX (IL) 802.11ax Dual 2x2:2 Radio Internal Directional Ant Outdoor HazLoc AP
R4W65AAruba AP-567EX (JP) 802.11ax Dual 2x2:2 Radio Internal Directional Ant Outdoor HazLoc AP

Mounting Kits

JW052AAP-270-MNT-V1 AP-270 Series Outdoor Pole/Wall Long Mount Kit
JW053AAP-270-MNT-V2 AP-270 Series Outdoor Pole/Wall Short Mount Kit
JW054AAP-270-MNT-H1 AP-270 Series Outdoor AP Hanging or Tilt Install Mount Kit
JW055AAP-270-MNT-H2 AP-270 Series Access Flush Wall or Ceiling Mount
R6W11AAP-270-MNT-H3 AP-270 Series Outdoor AP Hanging or Dual-Tilt Install Mount Kit

Power accessories

JW629APD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector
R6P67AAP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector
JW630APD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector
JW700APD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot NA Power Cord Midspan Injector
JW701APD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector
R7T40APD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector
R7T41APD-9501-5GCO-DC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector

Other accessories

Q8N47AOutdoor AP Covers and Glands 1-pk M25/5-pk M20 Cover/2-pk M16 Cover/5-pk M20 Gland/2-pk Ground Kit
Q8N84AOutdoor AP Metric to Standard M20 to 1/2 inch NPT 5-pk Thread Adapter
