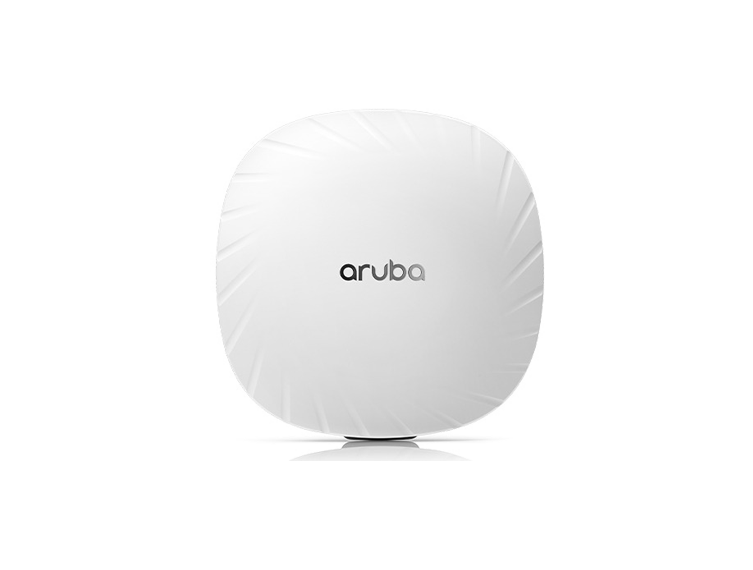

Aruba AP-515 Access Point

Aruba AP-515 Access Point

From
Special Price $977.50 Regular Price $1,486.00
compare favorite favorite
  • Home
  • Aruba AP-515 Access Point
Aruba AP-515 Access Point
Sale
See all specs
Have questions about this purchase?
Chat with Uvation Assistant

Aruba AP-515 Access Point

MFG.PART: Q9H63A
Item Condition : Brand New

Earn 977 points when you buy me!

Hurry! Other 2 people are watching this product
SKU
Aruba AP-515 Access Point
Add a Review
Be the first to review this product
Special Price $977.50 Regular Price $1,486.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 2 people are watching this product

• High performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO)
• Supports all mandatory and several optional 802.11ax features
• Maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps)

Details

Features

For medium-sized mobile and IoT deployments

Wi-Fi 6 access point high-performance, medium-density connectivity designed for environments such as education centers, lodging, and typical office spaces.

Ultimate efficiency

Built on Wi-Fi 6 standards, 510 Series APs include features such as OFDMA, MU-MIMO, and Target Wake Time for better multi-user performance and improved efficiency.

Groundbreaking Wi-Fi 6 capabilities

Connectivity across mid-range density deployments such as office spaces, training and meeting facilities, and hospitals. Up to 2.69 Gbps maximum real-world speed (HE80/HE20) and maximum of 512 associated clients per radio.

2.69 gigabit per second maximum real-world speed

Delivers speed and reliability for work and indoor campus environments.

Dynamic segmentation and policy enforcement firewalls

Flexible and scalable, it automatically enforces consistent policies across wired and wireless networks.

Wi-Fi 6 support for OFDMA, MU-MIMO, plus Client Match

Handles multiple clients on each channel, regardless of device or traffic type. Uses AI to eliminate sticky client issues.

Engaging experiences delivered with automation and security.

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a combined peak datarate of up to 2.69Gbps, they deliver the speed and reliability needed for any enterprise environment.

MORE CAPACITY AND WIDER CHANNELS

The 510 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 160MHz channel bandwidth (VHT160), the 510 Series provides groundbreaking wireless capabilities for any enterprise.

Advantages of OFDMA

This capability allows Aruba’s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

Aruba Air Slice™ for Extended Application Assurance

This capability allows Aruba’s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

Tech Specs

Tech specs

HARDWARE VARIANTS

AP-515Internal antenna models

WI-FI RADIO SPECIFICATIONS

AP typeIndoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate to individual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max)


Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

5GHz radio

Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max)


Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)


Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)


Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Supported frequency bands

2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz

5.850 to 5.895GHz U-NII-4

Available bands and channelsDependent on configured regulatory domain
Supported radio technologies802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units (for an 80MHz channel)

WI-FI ANTENNAS

AP-515Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

MECHANICAL SPECIFICATIONS

Dimensions/weight (AP-515; unit without mount bracket)(H) 46mm x (W) 200mm x (D) 200mm (1.8" x 7.9" x 7.9")
Weight: 810g (28.5oz)
Dimensions/weight (AP-515; shipping)(H) 72mm x (W) 230mm x (D) 220mm (2.8" x 9.1" x 9.1")
Weight: 1,010g (35.5oz)

ENVIRONMENTAL SPECIFICATIONS

Operating conditionsTemperature: 0C to +50C / +32F to +122F
Humidity: 5% to 93% non-condensing
AP is plenum rated for use in air-handling spaces
ETS 300 019 class 3.2 environments
Storage conditionsTemperature: -40C to +70C / -40F to +158F
Humidity: 5% to 93% non-condensing
ETS 300 019 classes 1.2 and 2.3 environments

RELIABILITY

Mean Time Between Failure (MTBF)560,000 hrs (64yrs) at +25°C operating temperature.

REGULATORY COMPLIANCE

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.

CERTIFICATIONS

Wi-Fi AllianceWi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
Wi-Fi Location*
Passpoint (release 2)

MINIMUM SOFTWARE VERSIONS

ArubaOS and Aruba InstantOS 8.4.0.0
Models

Access Points

Ordering Information

Aruba 510 Series ordering information

Part Number Description

Q9H59AAruba AP-515 (EG) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H60AAruba AP-515 (IL) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H61AAruba AP-515 (JP) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H62AAruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H63AAruba AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP

Mounting Kits

JZ370AAP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16
Q9G69AAP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16
R6T34AAP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick
Q9G70AAP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16
Q9G71AAP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface
R1C72AAP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box
R3T20AAP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts
R3J15AAP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16
R3J16AAP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16
R3J17AAP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16
R3J18AAP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface
R3J19AAP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box

Power accessories

R6P67AAP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector
R3K00AAP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector

Other accessories

JY728AAruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
R2X45AAruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP
R2Y09AAruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP
R2Y10AAruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP
