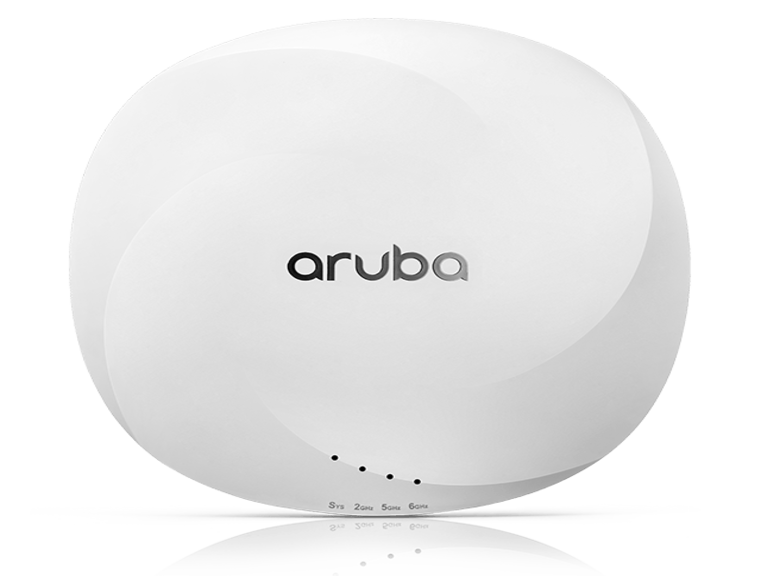

Aruba AP-615 Access Points
Earn 672 points when you buy me!
Deliver the highest levels of performance with Wi-Fi 6E – greater capacity, wider channels, and less interference – in a compact, cost-effective form factor.
Earn 672 points when you buy me!
Deliver the highest levels of performance with Wi-Fi 6E – greater capacity, wider channels, and less interference – in a compact, cost-effective form factor.
Meet Aruba’s compact, cost-effective Wi-Fi 6E access point
More capacity to meet growing demands. The new 610 Series provides fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform.
Greater capacity with 6 GHz
The Aruba 610 Series extends all the benefits of Wi-Fi 6 to the 6 GHz band: speed, more 80/160 MHz channels, and less interference to support high-definition video and more clients
Compact and cost-effective Wi-Fi 6E platform
Ideal for branch and small campus environments, Aruba 610 Series Wi-Fi 6E APs offer fast, secure connectivity.
Cost-effective and compact
For enterprises who needed more wireless capacity and/or wider channels, the Aruba 610 Series features two radios that can be tuned to any two of the three available spectrum bands for cost-effective connectivity in a compact form factor. The 610 Series provides tri-band coverage when deployed in a multi-AP environment.
Highly efficient and secure
Wi-Fi 6E extends support to the 6 GHz band based on the 802.11ax standard. 802.11ax provides greater efficiency and higher levels of guest and password security with orthogonal frequency-division multiple access (OFDMA), Enhanced Open, and WPA3. The 610 Series APs also offer client optimization, automated radio frequency management, and intelligent power monitoring.
Low power, compact form factor
Compact form with 802.3af, class 3 power and the ability to enable/disable capabilities based on available POE.
Indoor location ready
Built in GPS receivers and fine time measurement (FTM) enable APs to automatically locate themselves and serve as reference points for accurate client location.
Application assurance
Aruba Air Slice dynamically allocates and tunes radio resources to ensure application service levels and optimize the user experience.
AP-615 | Internal antenna models |
AP type | Indoor, dual-radio/tri-band 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2x2 MIMO |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20) |
5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices |
6GHz radio | Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices |
Supported frequency bands | 2.400 to 2.4835GHz ISM 5.150 to 5.250GHz U-NII-1 5.250 to 5.350GHz U-NII-2A 5.470 to 5.725GHz U-NII-2C 5.725 to 5.850GHz U-NII-3/ISM 5.850 to 5.895GHz U-NII-4 5.925 to 6.425GHz U-NII-5 6.425 to 6.525GHz U-NII-6 6.525 to 6.875GHz U-NII-7 6.875 to 7.125GHz U-NII-8 |
Available bands and channels | Dependent on configured regulatory domain (country) |
Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units |
AP-615 | Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees. |
Dimensions/weight (AP-615; unit without mount bracket) | 160mm (W) x 160mm (D) x 39mm (H) 520g |
Dimensions/weight (AP-615; shipping) | 212mm (W) x 194mm (D) x 66mm (H) 800g |
Operating conditions | Temperature: 0C to +50C / +32F to +122F Relative humidity: 5% to 95% ETS 300 019 class 3.2 environments AP is plenum rated for use in air-handling spaces |
Storage conditions | Temperature: -25C to +55C / -13F to +131F Relative humidity: 10% to 100% ETS 300 019 class 1.2 environments |
Transportation conditions | Temperature: -40C to +70C / -40F to +158F Relative humidity: up to 95% ETS 300 019 class 2.3 environments |
Mean Time Between Failure (MTBF) | Mean Time Between Failure (MTBF): 540khrs (62yrs) at +25C operating temperature |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
Wi-Fi Alliance | Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6GHz) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Passpoint (release 2) Wi-Fi location |
R7J46A | Aruba AP-615 (EG) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J47A | Aruba AP-615 (IL) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J48A | Aruba AP-615 (JP) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J49A | Aruba AP-615 (RW) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J50A | Aruba AP-615 (US) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R7J51A | Aruba AP-615 (EG) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J52A | Aruba AP-615 (IL) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J53A | Aruba AP-615 (JP) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J54A | Aruba AP-615 (RW) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP Add mount kit |
R7J55A | Aruba AP-615 (US) TAA Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP |
R3J15A | Aruba AP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16 |
JZ370A | Aruba AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16 |
R3J16A | Aruba AP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16 |
Q9G69A | Aruba AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16 Note: this kit contains mounts for 10 access points |
R6T34A | Aruba AP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick Note: this kit contains mounts for 10 access points |
R3J17A | Aruba AP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16 |
Q9G70A | Aruba AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16 Note: this kit contains mounts for 10 access points |
R3J18A | Aruba AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface |
Q9G71A | Aruba AP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface Note: this kit contains mounts for 10 access points |
R3J19A | Aruba AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box |
R1C72A | Aruba AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box Note: this kit contains mounts for 10 access points |
R3T20A | Aruba AP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts |
