• Deliver high performance to harsh, weatherprotected environments
• 2 Gbps of maximum throughput
• WPA3 and Enhanced Open security

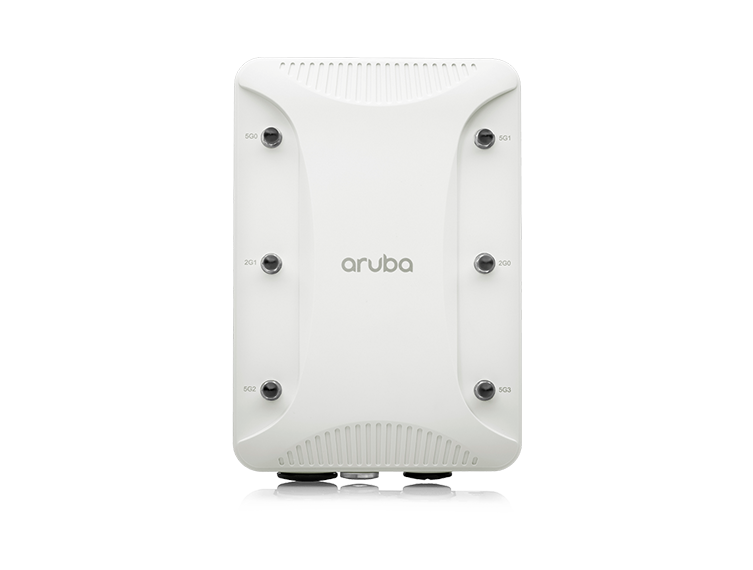

The ruggedized Aruba 318 Series access points deliver Wi-Fi 5 (802.11ac Wave 2) gigabit performance for client devices in extreme environments such as warehouses, industrial freezers, or for use in under-seat enclosures in stadiums and arenas.
With hardened, industrial design, the 318 Series is purpose-built to survive in the harshest weather-protected situations. Ideal for environments that lack heating and cooling, this access point can quickly add capacity to existing or new wireless networks in temperature-sensitive, dust-ridden, or other extreme environments.
The 318 Series delivers ruggedized access points for connectivity across the most extreme environments.
Offering 5GHz: 1,733 Mbps and 2.4GHz: 300 Mbps, the 318 Series can quickly add capacity to existing or new wireless networks in temperature-sensitive, dust-ridden, or other extreme environments.
Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.
With a maximum concurrent data rate of 2 Gbps (5GHz: 1,733 Mbps and 2.4GHz: 300 Mbps), the 318 Series can quickly add capacity to existing or new wireless networks in temperaturesensitive, dust-ridden, or other extreme environments. The 318 Series also comes with multi-user MIMO (MU-MIMO), 4 spatial streams (4SS), and optional 160 MHz channel bandwidth (VHT160) for the highest performance and density applications.
The 318 Series includes Aruba’s patented ClientMatch technology to eliminate sticky client issues while optimizing 802.11ac Wave 2 performance. These APs continuously gather session performance metrics to steer mobile devices to the best-available AP - even while users roam. With MUMIMO awareness, ClientMatch can group MU-MIMO capable devices together to increase network capacity and efficiency. ClientMatch also participates in Aruba’s AI-powered Mobility solution.
The 318 Series includes an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the 318 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
To simplify policy enforcement, the Aruba 318 Series uses Aruba’s policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation.
| AP-318 | - |
| AP type | Indoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO |
| 2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices |
| 5GHz radio | Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously |
| 6GHz radio | - |
| Supported frequency bands | 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz |
| Available bands and channels | Dependent on configured regulatory domain |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) |
| Dimensions/weight (unit, excluding mount accessories) | 16 cm (W) x 22.2 cm (D) x 7.5 cm (H) 6" (W) x 8.5" (D) x 2.5" (H) 1.225 kg / 2.7 lbs |
| Operating conditions | Temperature: -40° C to +60° C (-40° F to +140° F) Humidity: 5% to 95% noncondensing |
| Storage conditions | Temperature: -40° C to +70° C (-40° F to +158° F) |
| Operating Altitude | 3,000 m |
| Wired network interface | One 10/100/1000BASE-T Ethernet network interfaces (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) |
| FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. |
| CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n Wi-Fi CERTIFIED™ ac (with Wave 2 features) |
| ArubaOS & Aruba InstantOS 8.3.0.0 |
| JZ152A | Aruba AP-318 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ153A | Aruba AP-318 (US) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ149A | Aruba AP-318 (EG) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ150A | Aruba AP-318 (IL) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ151A | Aruba AP-318 (JP) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ157A | Aruba AP-318 (RW) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ158A | Aruba AP-318 (US) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ154A | Aruba AP-318 (EG) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ155A | Aruba AP-318 (IL) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JZ156A | Aruba AP-318 (JP) FIPS/TAA 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xRPSMA Connectors Indoor Hardened AP |
| JW046A | AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit |
| JW047A | AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit |
| JW056A | AP-270-MNT-ADP AP-228 to AP-270-MNT-XX Outdoor Mount Adapter |
| JW052A | AP-270-MNT-V1 AP-270 Series Outdoor Pole/Wall Long Mount Kit |
| JW053A | AP-270-MNT-V2 AP-270 Series Outdoor Pole/Wall Short Mount Kit |
| JW629A | PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
| R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor Midspan Injector |
| JW630A | PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector |
| JW700A | PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot NA Power Cord Mdspan Injector |
| JW701A | PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector |
| R7T40A | PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
| R7T41A | PD-9501-5GCO-DC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector |
| JW066A | AFC2DL60-00 Indoor AP RPSMAm to Nf 60cm Flexible Indoor Rated RF Cable |
| JW067A | AFCSJMTM-00 Indoor AP RPSMAm to Nm 60cm Flexible Indoor Rated RF Cable |
