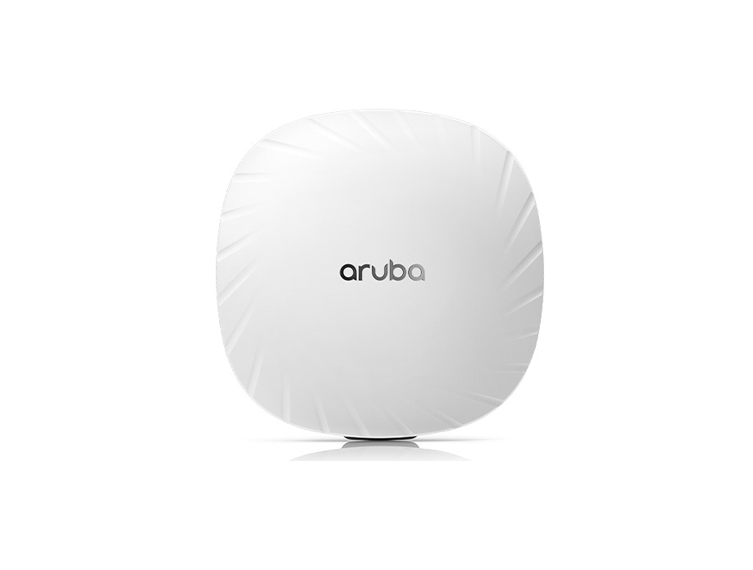

Aruba AP-535 Access Points

MFG.PART: JZ337A
Item Condition : Brand New

Earn 1,355 points when you buy me!

Hurry! Other 2 people are watching this product
SKU
Aruba AP-535 Access Points
Special Price $1,355.99 Regular Price $2,028.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 2 people are watching this product
High performance 802.11ax wireless for high density mobile and IoT deployments
Details

Features

High density. High performance.

WI-Fi 6-certified for high-performance connectivity across high-density deployments such as larger office spaces, training and meeting facilities, and hospitals.

Ultimate efficiency

Built on Wi-Fi 6 standards, 530 Series APs include features such as OFDMA, bidirectional uplink/downlink MU-MIMO, and Target Wake Time for better multi-user performance and improved efficiency.

High speed. High performance indoor Wi-Fi 6 APs

Connectivity across high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Up to 2.97 Gbps maximum real-world speed and maximum of 1,024 associated clients per radio.

Wi-Fi 6 OFDMA and MU-MIMO, plus ClientMatch

Handles multiple clients on each channel, regardless of device or traffic type, using AI to eliminate sticky client issues.

IoT-ready Bluetooth 5 and Zigbee support

Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

Air Slice for SLA-grade performance

Provides service level agreement-grade performance for latency-sensitive, high-bandwidth, and IoT services.

Engaging experiences delivered with automation and security.

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a combined peak datarate of up to 2.97Gbps, the 530 Series deliver the speed and reliability needed for any enterprise.

MORE CAPACITY AND WIDER CHANNELS

Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a combined peak datarate of up to 2.97Gbps, the 530 Series deliver the speed and reliability needed for any enterprise.

Features include Orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 160MHz channel bandwidth, the 530 Series provides groundbreaking wireless capabilities for any enterprise.

Advantages of OFDMA

This capability allows Aruba’s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

Aruba Air Slice™ for Extended Application Assurance

Initially, APs in controller-less mode (Instant) can provide SLA-grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic types. By combining Aruba’s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit.

Tech Specs

Tech specs

HARDWARE VARIANTS

AP-535Internal antenna models

WI-FI RADIO SPECIFICATIONS

AP typeIndoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO
2.4GHz radioFour spatial stream HE40 (HE20) MIMO for up to 1,147Mbps (574Mbps) wireless data rate
5GHz radioFour spatial stream HE80 (or 2SS HE160) MIMO for up to 2.4Gbps wireless data rate
Supported frequency bands

2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz

5.850 to 5.895GHz U-NII-4

Available bands and channelsDependent on configured regulatory domain
Supported radio technologies802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units (for an 80MHz channel)

WI-FI ANTENNAS

AP-534Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.3dB in 5GHz.
AP-535Four integrated dual-band downtilt omni- directional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

MECHANICAL SPECIFICATIONS

Dimensions/weight (AP-535; unit, excluding mount bracket)240mm (W) x 240mm (D) x 57mm (H) / 9.4" (W) x 9.4" (D) x 2.1" (H)
1,270g / 44.8oz
Dimensions/weight (AP-535; shipping)285mm (W) x 300mm (D) x 105mm (H) / 11.2" (W) x 11.9" (D) x 4.1" (H)
1,930g / 68.1oz

ENVIRONMENTAL SPECIFICATIONS

Operating conditionsTemperature: 0C to +50C / +32F to +122F
Humidity: 5% to 93% non-condensing
AP is plenum rated for use in air-handling spaces
ETS 300 019 class 3.2 environments
Storage conditionsTemperature: -40C to +70C / -40F to +158F
Humidity: 5% to 93% non-condensing
ETS 300 019 classes 1.2 and 2.3 environments

RELIABILITY

Mean Time Between Failure (MTBF)995,000hrs (114yrs) at +25C operating temperature.

REGULATORY COMPLIANCE

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.

CERTIFICATIONS

Wi-Fi AllianceWi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
Wi-Fi Location*
Passpoint (release 2)

MINIMUM SOFTWARE VERSIONS

ArubaOS and Aruba InstantOS 8.5.0.0
Models

Access Points

Ordering Information

Aruba AP-535 ordering information

Part Number Description

JZ333AAruba AP-535 (EG) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
JZ334AAruba AP-535 (IL) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
JZ335AAruba AP-535 (JP) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
JZ336AAruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
JZ337AAruba AP-535 (US) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP

Mounting Kits

JZ370AAP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16
Q9G69AAP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16
R6T34AAP-MNT-MP10-B1 Campus AP mount bracket kit (10-pack) type B1: suspended ceiling rail, flat 15/16 thick
Q9G70AAP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16
Q9G71AAP-MNT-MP10-D Campus AP mount bracket kit (10-pack) type D: solid surface
R1C72AAP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box
R3T20AAP-MNT-MP10-X Campus AP mount adapter kit (10-pack) for existing W2/W3 mounts
R3J15AAP-MNT-A Campus AP mount bracket kit (individual) type A: suspended ceiling rail, flat 9/16
R3J16AAP-MNT-B Campus AP mount bracket kit (individual) type B: suspended ceiling rail, flat 15/16
R3J17AAP-MNT-C Campus AP mount bracket kit (individual) type C: suspended ceiling rail, profile 9/16
R3J18AAP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface
R3J19AAP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box

Power accessories

R1C73AAP-POE-BTSR 1-Port Smart Rate 802.3bt 60W midspan injector
R3K01AAP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector

Other accessories

JY728AAruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
R6Q99AAruba AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module
R2X45AAruba AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP
R2Y09AAruba AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP
R2Y10AAruba AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP
