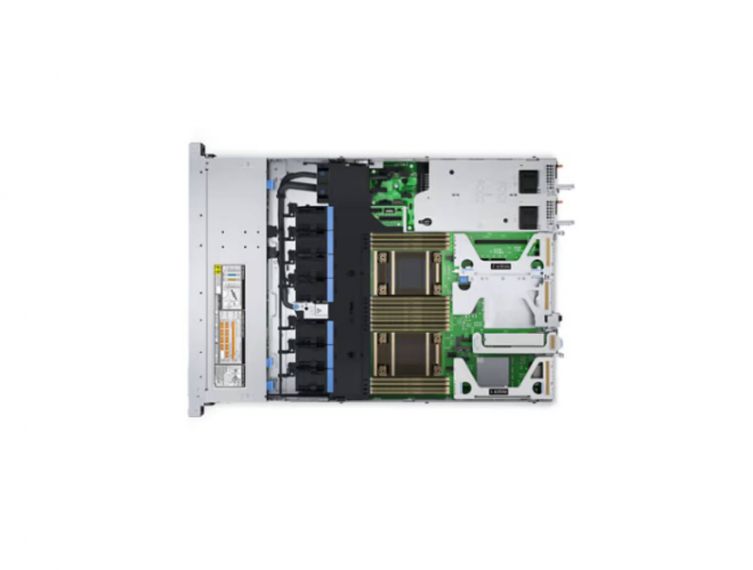

Base | PowerEdge R650xs Server |
Front Storage | 8x2.5 Front Storage |
BackPlane | SAS/SATA Backplane |
Trusted Platform Module | No Trusted Platform Module |
Chassis | 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU |
Processor | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
Processor Thermal Configuration | Heatsink for 1 CPU configuration (CPU less than 185W) |
Memory Configuration Type | Performance Optimized |
Memory DIMM Type and Speed | 3200MT/s RDIMMs |
Form Factor | 1U Rack Server |
Memory | 16GB RDIMM, 3200MT/s, Dual Rank |
RAID | C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers | Front PERC H755 Front Load |
Storage | 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug |
BIOS and Advance System Configuration | Power Saving Dell Active Power Controller |
Advance System Configuration | UEFI BIOS Boot Mode with GPT Partition |
Fans | Standard Fan x5 |
Power Supply | Single, Hot-plug, Power Supply (1+0), 800W, Mixed Mode TM |
Power Cords | NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser | Riser Config 4, 1xOCP 3.0(x16)+ 1x16LP |
Bezel | No Bezel for x8 and x10 chassis |
Boot Optimized Storage Cards | None |
OCP 3.0 Network Adapter | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
Operating System | No Operating System |
OS Media Kits | No Media Required |
Embedded Management Systems | iDRAC9, Express 15G |
Quick Sync | No Quick Sync |
Password | iDRAC,Factory Generated Password |
IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
Group Manager | iDRAC Group Manger, Disabled |
Rack Rails | No Rack Rails or Cable Management Arm |
