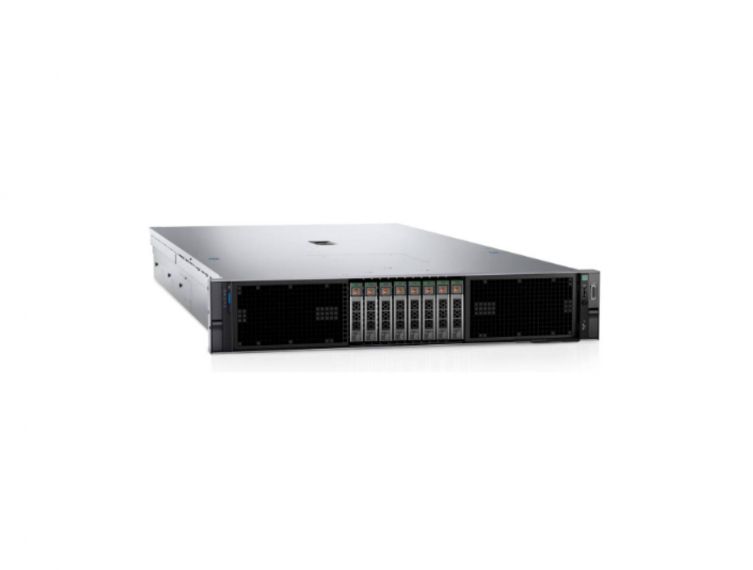

Dell PowerEdge R760xa Rack Server
Earn 29,888 points when you buy me!
The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs
Earn 29,888 points when you buy me!
The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs
The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs. Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.
Maximize your workload performance and boost outcomes with scale as you grow compute, flexibly supporting a wide range of GPUs in a dual-socket/2U air-cooled server, accelerating applications from AI training and inferencing to Digital Twins to performance graphics and dense power-user collaboration environments.
-Leverage a powerful architecture and the power of two 4th Generation Intel Xeon processors with high core count of up to 56 cores and the latest on-chip innovations to boost AI and ML operations
-Up to four double-width PCIe Gen5 accelerators or up to 12 single-width PCIe accelerators to break through the density boundaries of todays and tomorrow’s computing
-Support for PCIe GPU adapters from NVIDIA, AMD, and Intel, delivering superior outcomes with one platform
-Deploy latest generation technologies including DDR5, Gen4 NVLink, PCIe Gen 5, and E3.S NVMe SSDs to push the boundaries of data flow and computing possibilities.
-Scale up your needs supporting up to 32 DDR5 memory DIMM slots, up to eight drives, and PCIe Gen 5 expansion slots.
-Air-cooled design with front-facing accelerators enables better cooling and supports higher TDP accelerators (up to 350 W).
Systems Management and Security Solutions
OpenManage systems management: The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.
Intelligent Automation:PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.
Built-in security:PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.
Base | PowerEdge R760XA Server |
Trusted Platform Module | No Trusted Platform Module |
Chassis | 2.5" Chassis with up to 8 SAS/SATA Drives, Front PERC 11 |
Processor | Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000 |
Processor Thermal Configuration | Heatsink for 2 CPU Configuration |
Memory Configuration Type | Performance Optimized |
Memory DIMM Type and Speed | 4800MT/s RDIMMs |
Form Factor | 2U Rack Server |
Memory | 16GB RDIMM, 4800MT/s Single Rank |
RAID | C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers | Front PERC H355 Rear Load |
Storage | 800GB SSD SAS Mixed Use up to 24Gbps 512e 2.5in Hot-Plug, AG Drive |
Power Management BIOS Settings | Power Saving Dell Active Power Controller |
Advance System Configuration | UEFI BIOS Boot Mode with GPT Partition |
Fans | Gen 2 Fan |
Power Supply | Dual, Hot-Plug,Power Supply Fault Tolerant Redundant (1+1), 2400W, Mixed Mode |
Power Cords | PowerCord, 250V, 2FT, C19/C20, US |
PCLe Riser | Riser Config 0, 4x16 FH Slots (Gen5), 4x16 FH DW GPU Capable Slots (Gen5) |
Embedded Systems Management (Multi) | iDRAC9, Express 16G |
OCP 3.0 Network Adapter | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
Additional Network Cards | Broadcom 5720 Dual Port 1GbE LOM |
GPU Acceleration Cards | NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Full Height GPU |
Bezel | No Bezel |
Boot Optimized Storage Cards | BOSS Blank |
Operating System | No Operating System |
OS Media Kits | No Media Required |
Quick Sync | No Quick Sync |
Password | iDRAC,Factory Generated Password |
IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
Group Manager | iDRAC Group Manger, Disabled |
Rack Rails | No Rack Rails or Cable Management Arm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
