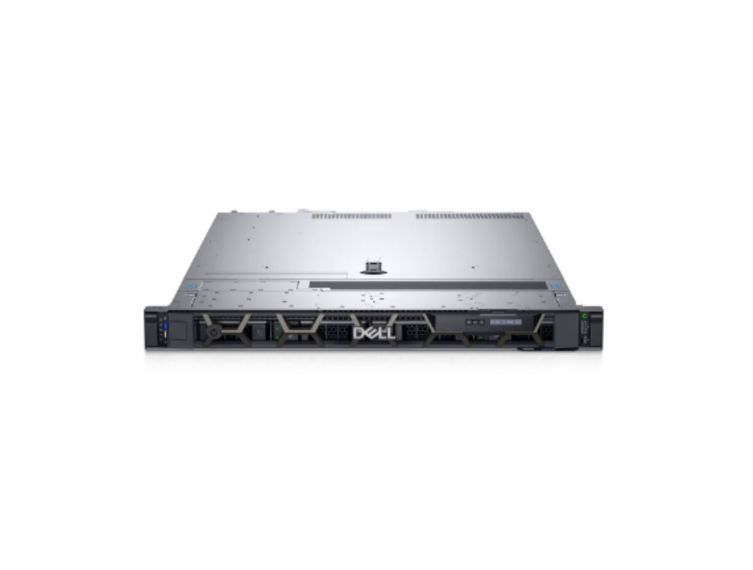

Base | PowerEdge R6515 Server |
Front Storage | Chassis with up to 8x2.5" Drives |
Trusted Platform Module | No Trusted Platform Module |
Chassis | 2.5" Chassis with up to 8 Hot Plug Hard Drives |
Processor | AMD EPYC 7443P 2.85GHz, 24C/48T, 128M Cache (200W) DDR4-3200 |
Processor Thermal Configuration | Heatsink for CPU equal to or greater than 180W |
Memory Configuration Type | Performance Optimized |
Memory DIMM Type and Speed | 3200MT/s UDIMM |
Form Factor | 1U Rack Server |
Memory | 16GB RDIMM, 3200MT/s, Dual Rank |
RAID | C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers | No Controller |
Storage | 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD |
BIOS and Advance System Configuration | Power Saving BIOS Setting |
Advance System Configuration | UEFI BIOS Boot Mode with GPT Partition |
Fans | Standard Fan |
Power Supply | Single, Hot-plug Power Supply (1+0), 550W |
Power Cords | NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser | No PCIe Riser |
Motherboard | PowerEdge R6515 Motherboard, with 2 x 1Gb Onboard LOM (BCM5720)MLK |
Bezel | Standard Bezel for x4 and x8 chassis |
Boot Optimized Storage Cards | None |
Operating System | No Operating System |
OS Media Kits | No Media Required |
Embedded Management Systems | iDRAC9, Express 15G |
Quick Sync | Quick Sync 2 (At-the-box mgmt) |
Password | iDRAC,Factory Generated Password |
IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
Group Manager | iDRAC Group Manger, Disabled |
Rack Rails | No Rack Rails or Cable Management Arm |
Internal Optical Drive | No Internal Optical Drive |
