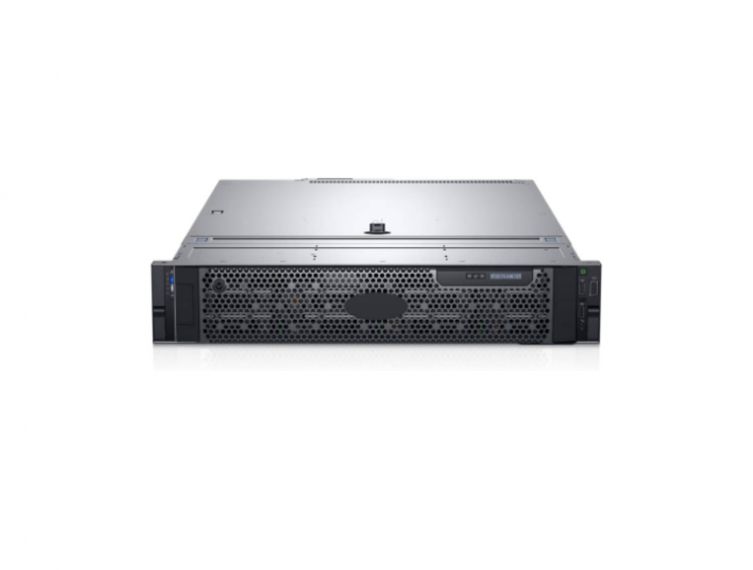

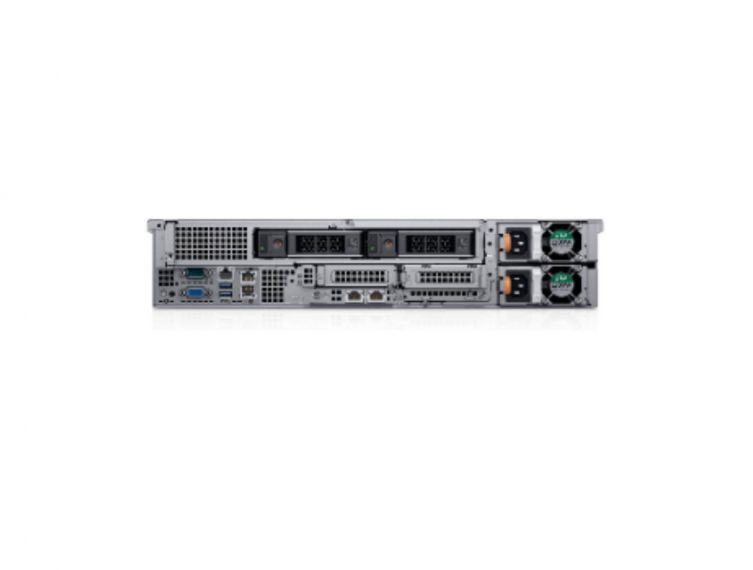

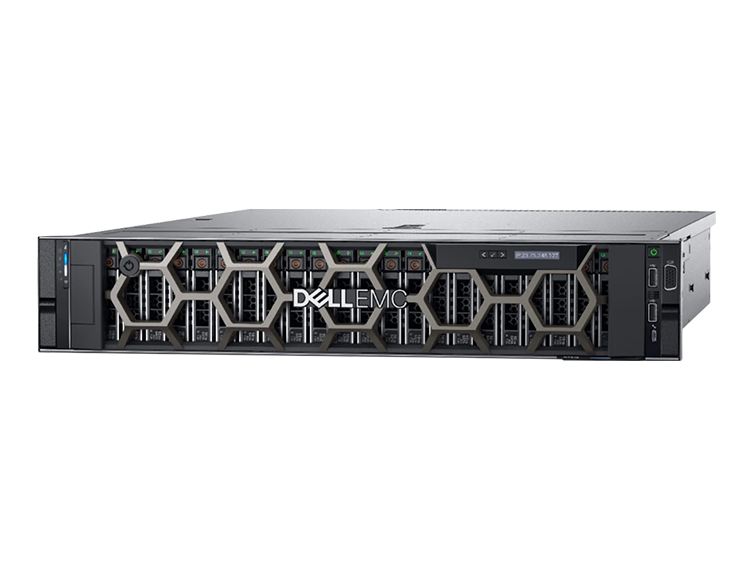

Base | PowerEdge R7515 Server |
Front Storage | Chassis with up to 8x3.5" Drives |
BackPlane | SAS/SATA Backplane |
Trusted Platform Module | No Trusted Platform Module |
Chassis | 3.5" Chassis with up to 8 Hot Plug Hard Drives for SOFTWARE RAID |
Processor | AMD EPYC 7443P 2.85GHz, 24C/48T, 128M Cache (200W) DDR4-3200 |
Processor Thermal Configuration | Standard Heatsink |
Memory Configuration Type | Performance Optimized |
Memory DIMM Type and Speed | 3200MT/s RDIMMs |
Form Factor | 2U Rack Server |
Memory | 16GB RDIMM, 3200MT/s, Dual Rank |
RAID | C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers | No Controller |
Storage | 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive |
BIOS and Advance System Configuration | Power Saving BIOS Setting |
Advance System Configuration | UEFI BIOS Boot Mode with GPT Partition |
Fans | 6 Standard Fans |
Power Supply | Single, Hot-plug, Power Supply (1+0), 750W |
Power Cords | NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser | Riser Config 2, 2 x 16 FH + 2 x 16 LP PCIe slot |
MotherBoard | PowerEdge R7515 Motherboard, with 2 x 1Gb Onboard LOM (BCM5720)MLK2 |
Bezel | PowerEdge 2U Standard Bezel |
Boot Optimized Storage Cards | None |
Operating System | No Operating System |
OS Media Kits | No Media Required |
Embedded Management Systems | iDRAC9, Express 15G |
Quick Sync | No Quick Sync |
Password | iDRAC,Factory Generated Password |
IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
Group Manager | iDRAC Group Manger, Disabled |
Rack Rails | No Rack Rails or Cable Management Arm |
