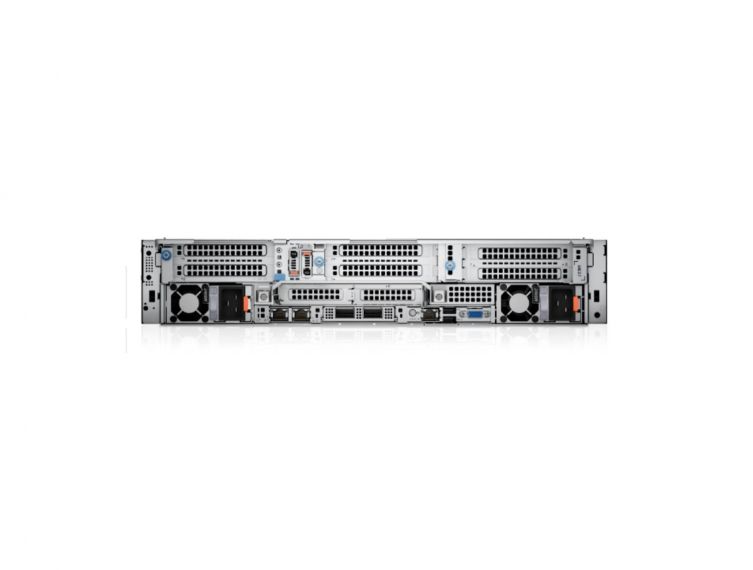

The Dell PowerEdge R750xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.
The Dell EMC PowerEdge R750xa, powered by the 3rd Generation Intel® Xeon® Scalable processors, is a dualsocket/2U rack server that delivers outstanding performance for the most demanding emerging and intensive GPU workloads. It supports 8 channels/CPU, up to 32 DDR4 DIMMs 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge R750xa supports PCIe Gen 4 and up to 8 SAS/SATA SSD or NVMe drives. With one platform that supports all of the PCIe GPUs in the PowerEdge portfolio, this makes the PowerEdge R750xa the ideal server for emerging workloads including AI-ML/DL Training and Inferencing, HighPerformance Computing and virtualization environments.
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
-Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management.
-Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity.
-Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation.
Systems Management and Security Solutions
OpenManage systems management: The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.
Intelligent Automation:PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.
Built-in security:PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.
| Base | PowerEdge R750XA Server |
| Front Storage | Chassis with up to 8x2.5" Drives |
| Trusted Platform Module | No Trusted Platform Module |
| Chassis | 2.5" Chassis with up to 8 SAS/SATA Drives |
| Processor | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Processor Thermal Configuration | Heatsink for 2 CPU |
| Memory Configuration Type | Performance Optimized |
| Memory DIMM Type and Speed | 3200MT/s RDIMMs |
| Form Factor | 2U Rack Server |
| Memory | 16GB RDIMM, 3200MT/s, Dual Rank |
| RAID | C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
| RAID Internal Storage Controllers | Front PERC H755 Rear Load |
| Storage | 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD |
| BIOS and Advance System Configuration | Performance BIOS Setting |
| Advance System Configuration | UEFI BIOS Boot Mode with GPT Partition |
| Fans | Very High Performance Fan |
| Power Supply | Dual, Hot-Plug,Power Supply Fault Tolerant Redundant (1+1), 1400W, Mixed Mode |
| Power Cords | NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
| PCLe Riser | Riser Config 0, 6x16 + 2x8 slots |
| GPU/FPGA/Acceleration cards | NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Full Height GPU |
| OCP 3.0 Network Adapters | Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0 |
| Embedded Systems Management | iDRAC9, Express 15G |
| Bezel | No Bezel |
| Boot Optimized Storage Cards | BOSS Blank |
| Operating System | No Operating System |
| OS Media Kits | No Media Required |
| Quick Sync | No Quick Sync |
| Password | iDRAC,Factory Generated Password |
| IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
| Group Manager | iDRAC Group Manger, Disabled |
| Rack Rails | No Rack Rails or Cable Management Arm |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
