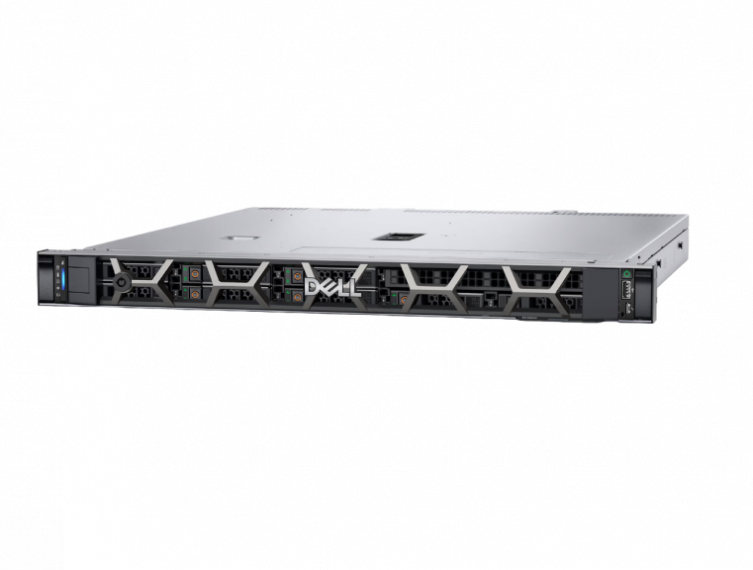

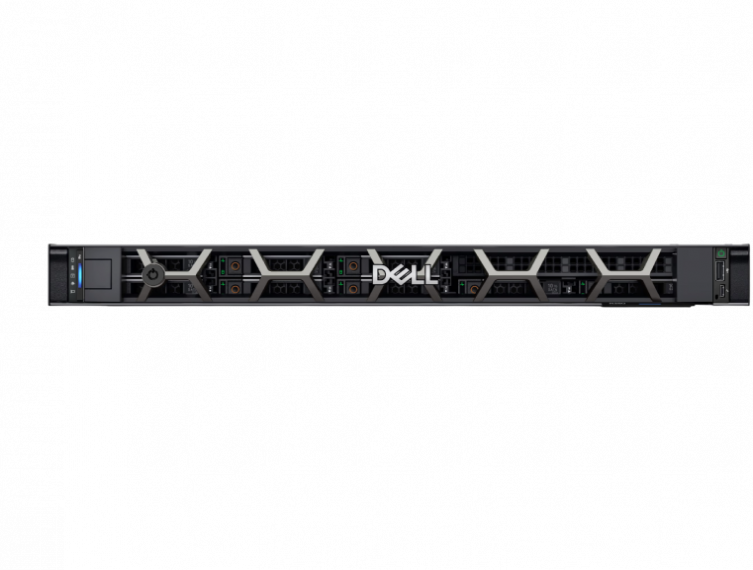

Base | PowerEdge R660xs Server |
Trusted Platform Module | No Trusted Platform Module |
Chassis | 3.5" Chassis with up to 4 Hard Drives (SAS/SATA), 1 CPU, PERC11 |
Processor | Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000 |
Additional Processor | No Additional Processor |
Processor Thermal Configuration | Heatsink for 1 CPU configuration (CPU less than or equal to 150W) |
Memory Configuration Type | Performance Optimized |
Memory DIMM Type and Speed | 4800MT/s RDIMMs |
Form Factor | 1U Rack Server |
Memory | 16GB RDIMM, 4800MT/s Single Rank |
RAID | C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers | Front HBA355i Front Load |
Storage | 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug |
BIOS and Advanced System Configuration Settings | Power Saving Dell Active Power Controller |
Advanced System Configurations | UEFI BIOS Boot Mode with GPT Partition |
Advanced System Configurations | No Energy Star |
Fans | Standard Fan X5 |
Power Supply | Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF |
Power Cords | NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser | No PCIe Riser |
Motherboard | PowerEdge R660xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM |
OCP 3.0 Network Adapters | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
Bezel | No Bezel for x4 chassis |
Boot Optimized Storage Cards | None |
Operating System | No Operating System |
OS Media Kits | No Media Required |
Embedded Systems Management | iDRAC9, Express 16G |
Quick Sync | No Quick Sync |
Password | iDRAC,Factory Generated Password |
IDRAC Service Module | iDRAC Service Module (ISM), NOT Installed |
Group Manager | iDRAC Group Manger, Disabled |
Rack Rails | No Rack Rails or Cable Management Arm |
