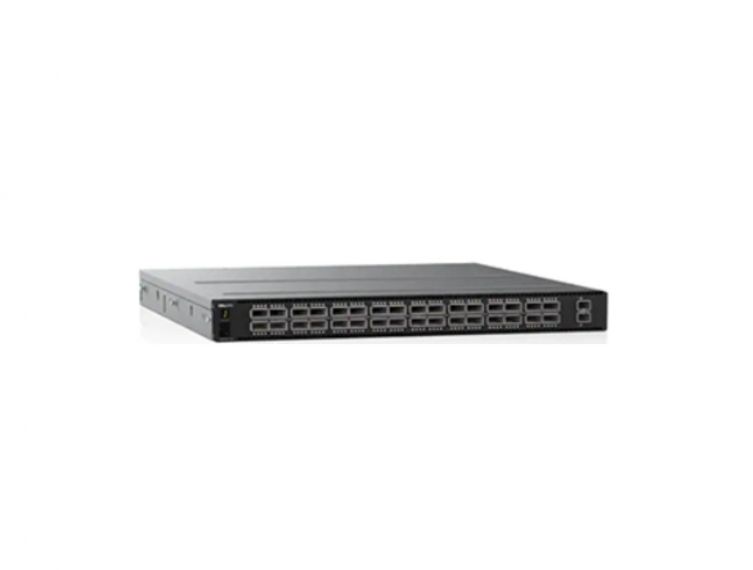

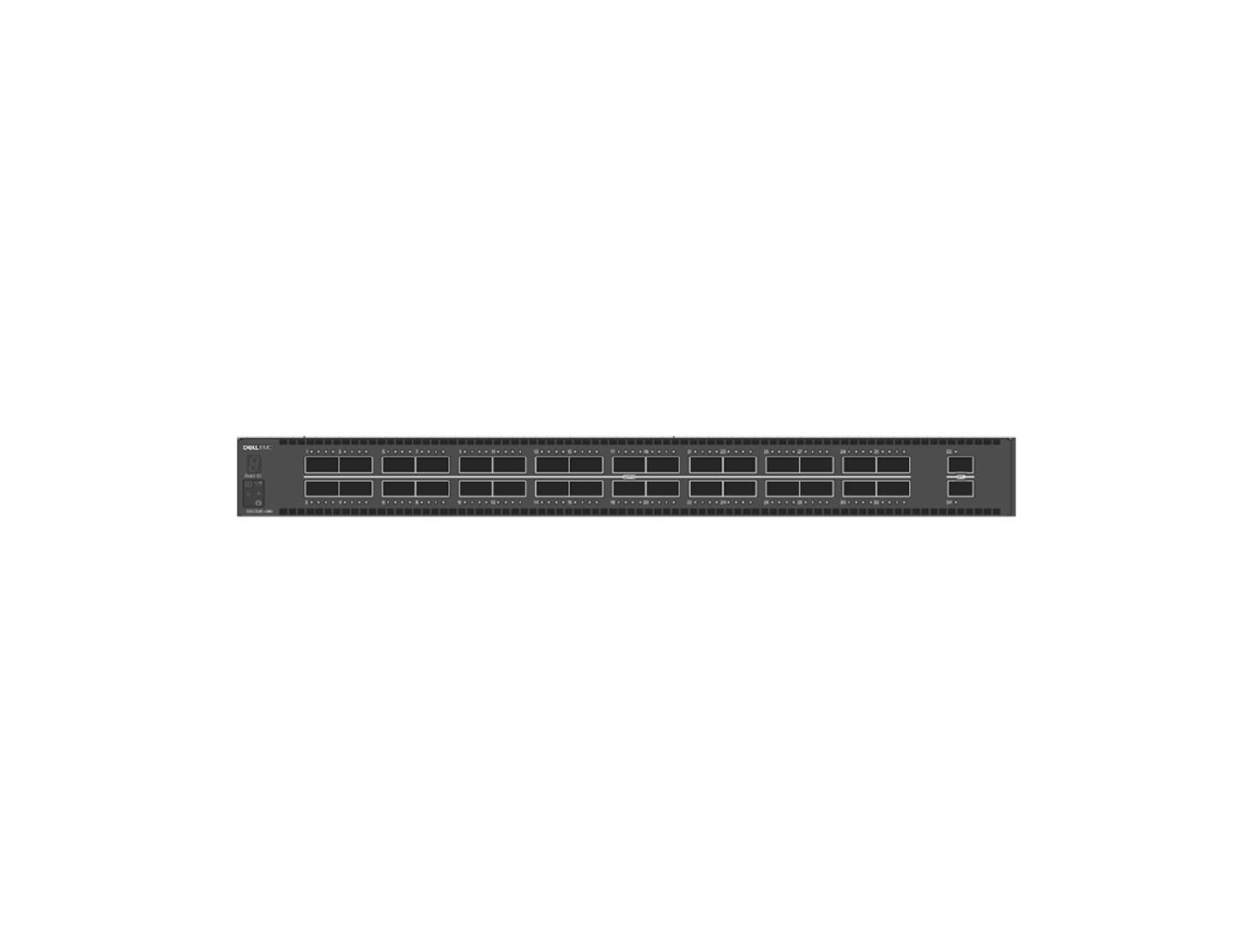

Dell PowerSwitch S5232F-ON S Series Switch

MFG.PART: #S5232F-ON
Item Condition : Brand New

Earn 4,790 points when you buy me!

Hurry! Other 12 people are watching this product
SKU
Dell-PowerSwitch-S5232F-ON-S-Series-Switch
Add a Review
Be the first to review this product
$4,790.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 12 people are watching this product

The PowerSwitch S5200-ON 25/100GbE fixed switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise and cloud service providers with demanding compute and storage traffic environments.

Details

Features:

• 1RU high-density ToR switches with up to 32 ports of 100GbE.

• Multi-rate 100GbE ports support 10/25/40/50/100GbE.

• Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support.

• Line-rate performance via non-blocking switch fabrics: 3.2Tbps (6.4Tbps full-duplex) on S5296F-ON and S5232F-ON.

• L2 multipath support via Virtual Link Trunking (VLT) and Routed VLT support.

• VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance.

• Converged network support for DCB, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV support.

• Routable RoCE to enable convergence of compute and storage on Leaf/Spine Fabric.

• IO panel to PSU airflow or PSU to IO panel airflow Redundant, hot-swappable power supplies and fans on most models.

• Supports the open source Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems.

• Tool-less enterprise ReadyRails™ mounting kits for most models reducing time and resources for switch rack installation.

S5232F
S5232F
S5232F

Key applications

• Organizations looking to enter the software defined data center era with a choice of networking technologies designed to maximize flexibility.

• High-density 10/25GbE To R server aggregation in high-performance data center environments at the desired fabric speed with the S5248F-ON or S5296FON

• Low-density 10/25GbE server and storage aggregation with the S5212F-ON and S5224F-ON.

• Small-scale Fabric implementation via the S5232FON switch in leaf and spine along with S5248F-ON 1/10/25GbE To R switches enabling cost-effective aggregation of 10/25/40/50/100 uplinks.

• Multi-functional 10/25/40/50/100GbE switching in High Performance Computing Clusters or other business sensitive deployments requiring the highest bandwidth.

• iSCSI deployments, including DCB converged lossless transactions.

• Single-pass VXLAN routing.

Tech Specs

Tech specs

Ports32xQSFP28
2xSFP+
Max 10GBE Density124 (QSFP28 breakout)
2 (SFP+)
Max 25GBE Density124 (QSFP28 breakout)
Stacking bandwidth200 Gbps
Max 25GBE Density32 (QSFP28)
Switching Capacity3.2 Tbps (6.4 Tbps full duplex)
Throughput2.4 Bpps (4.8 Bpps full duplex)
CPU Memory16GB
SSD64GB
Maximum Power635W
Maximum Current5.8A@110VAC /
2.9A@220VAC
Fan Modules4
Form Factor1RU
Weight9.8kg (21.6lbs)

Environmental

Operating temperature32° to 113°F (0° to 45°C)
Operating Relative Humidity5 to 90% (RH), non-condensing
Non-Operating5 to 90% (RH), non-condensing
Non-Operating Storage relative humidityStorage temperature: –40° to 158°F (–40° to 70°C)
