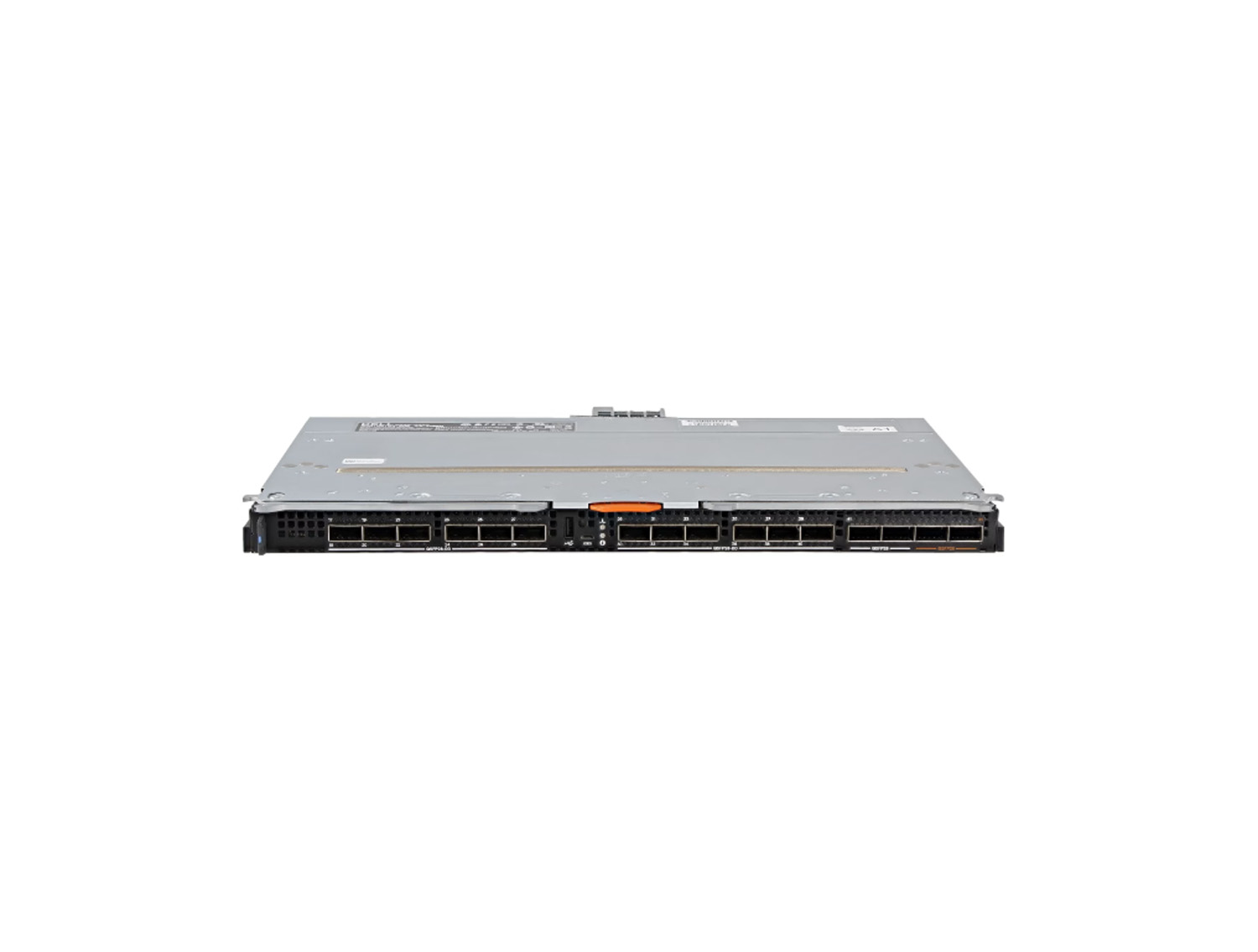

Dell EMC MX9116n Fabric Switching Engine

Dell EMC MX9116n Fabric Switching Engine

From
$4,500.00
compare favorite favorite
  • Home
  • Dell EMC MX9116n Fabric Switching Engine
Dell EMC MX9116n Fabric Switching Engine
See all specs
Have questions about this purchase?
Chat with Uvation Assistant
Rewards Banner

Dell EMC MX9116n Fabric Switching Engine

210-AODD
Item Condition : Brand New

Earn 4,500 points when you buy me!

Hurry! Other 4 people are watching this product
SKU
Dell-EMC-MX9116n-Fabric-Switching-Engine
Add a Review
Be the first to review this product
$4,500.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 4 people are watching this product
Details
MX5108n

SmartFabric Services

Robust yet simple fabric automation that goes beyond the ordinary.

  • Plug and Play fabric deployment with simplified I/O Aggregation providing a single pane of glass view.
  • Physical topology validation and compliance checking.
  • Automated per-VLAN Quality of Service assignment based on traffic types.
  • Self-healing fabric detects misconfigurations and link failure conditions and adjusts where possible.

Dell PowerEdge MX I/O Modules.

Scalable fabric architecture

Multi-chassis scalable Ethernet fabric architecture that can grow with your specific needs.

  • Fabric expansion capability with 25GbE and 100GbE connectivity options across multiple chassis.
  • 25GbE or 100GbE connections to all compute sleds with no port to port oversubscription.
  • Sub 600ns “Any to any” latency.
  • Supports Dell and 3rd party rack servers and other network devices.

Dell PowerEdge MX I/O Modules.

MX5108n Module
MX5108n Architecture

The power of open choice

An array of hardware platforms, operating systems and management services.

  • Choice of unique Open Networking modular switches.
  • Choice of models with Dell SmartFabric OS10 or Fibre Channel OS available.
  • Choice of leveraging standards-based open automation tools.

Dell PowerEdge MX I/O Modules.

MX I/O Performance

Highest performance connectivity

Optimum connectivity to servers and storage platforms in the chassis for demanding workloads.

  • High-performance 25GbE, 100GbE and 32G FC connectivity within the chassis.
  • High throughput and low latency performance throughout the chassis.
  • Fabric Switching Engine with 100GbE NICs or 32Gb Fibre Channel (trunk up to 256Gbps per ISL).

Navigate network complexity with Dell Services

Our global team of network experts understands the complexities of IT ecosystems, including multi-vendor environments. We have the skillset and experience to not only quickly resolve performance issues but also transform your network to meet the demands of your business.

Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Physical

  • Full-featured 25/100GE switch in PowerEdge MX Fabric A/B I/O sled form factor
  • 1 USB 2.0 type A storage port
  • 1 micro USB type B port for console/management port access
  • Indicators: Power/Health LED, ID LED, Link/activity LEDs
  • Size: 1.18”h x 17.11”w x 10.94”d
  • Weight: 8.49lbs (3.85kg)
  • Max. power consumption: 260 Watts w/5W QSFP28-DD Optics
  • Typ. power consumption: 237 Watts w/5W QSFP28-DD Optics
  • Standard Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Operating Relative Humidity: 5% to 85%, non-condensing
  • Storage temperature: -40°C to 65°C (-40°F to 149°F)
  • Storage humidity: 5 to 95% (RH), non-condensing
  • Expanded Operating Temperature, Continuous Operation: Not Supported

Redundancy

  • Redundant Power and Cooling provided by Dell EMC PowerEdge MX7000

Performance

  • Switching I/O bandwidth: 6.4Tbps
  • Forwarding capacity: 2380 Mpps
  • Latency: Sub 450ns
  • MAC addresses: 137K
  • IPv4 Unicast routes: 130K
  • IPv6 Unicast routes: 130K
  • ARP entries: 48K
  • Layer 2 VLANs: 60K P*V in Full Switch mode
  • Layer 3 VLANs: 30K P*V in Full Switch mode
  • MST: 32 instances
  • PVST+: 128 instances

VLT (Virtual Link Trunking)

  • VRRP Active/Active
  • RSTP, MSTP & RPVST+
  • Port Mirroring on VLT ports
  • DCB, iSCSI, FSB on VLT
  • RPM/ERPM over VLT
  • VLT Minloss upgrade
  • VxLAN with VLT
  • IGMP/MLD snooping over VLT
  • PIM SM/SSM over VLT

Linux Distribution

  • Debian Linux version 8
  • Linux Kernel 3.16

Network Management and Monitoring

  • SNMPv1/v2c/v3
  • IPv4/IPv6 Management support (Telnet, FTP, TACACS, RADIUS, SSH, NTP)
  • Port Mirroring
  • RPM/ERPM
  • SFlow
  • Support Assist (Phone Home)
  • RestConf APIs, Auto-docs XML Schema
  • CLI Commit (Scratchpad)
  • Uplink Failure Detection
  • Object Tracking
  • FarEnd Failure Detection
  • Bidirectional Forwarding Detection (BFD)–BGPv4/6, OSPFv2/3, Static Routes
  • Streaming Telemetry: System, Buffers, Data monitoring
  • gRPC Transport with gPB encoding

Automation

  • Control Plane Services APIs
  • Linux Utilities and Scripting Tools
  • CLI Automation (Multiline Alias)
  • Ansible, Puppet, Chef, SaltStack
  • Zero Touch Deployment (ZTD)
  • 3rd party packages support on Docker Container

Quality of Service

  • Prefix List
  • Route-Map
  • Rate Shaping (Egress)
  • Rate Policing (Ingress)
  • Scheduling Algorithms: Round Robin, Weighted Round Robin, Deficit Round Robin
  • Strict Priority
  • Weighted Random Early Detect

Data Center Bridging

  • 802.1Qbb Priority-Based Flow Control
  • 802.1Qaz Enhanced Transmission Selection (ETS)
  • Explicit Congestion Notification
  • Data Center Bridging eXchange (DCBx)
  • DCBx Application TLV (iSCSI, FCoE)
  • RoCEv2

Fibre Channel

  • FIP Snooping

Regulatory Compliance

  • Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FDA Regulation 21 CFR 1040.10 and 1040.11
  • Emissions & Immunity: AS/NZS CISPR 32:2015, ICES-3/NMB-3, EN 55024:2010, VCCI V-3/2010.04, FCC Part 15 Subpart B:2011
  • EN 300 386 V1.6.1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, -3, -4, -5, -6
  • RoHS: EN 50581:2012 – All MX9116n components are EU RoHS compliant
