Dell PowerSwitch S5224F-ON S Series Switch

From

$8,509.00

Home
Dell PowerSwitch S5224F-ON S Series Switch

Skip to the end of the images gallery

Skip to the beginning of the images gallery

See all specs

Have questions about this purchase?

Chat with Uvation Assistant

Ask An Expert → +1 833 631 7912 (North America)

S5224F-ON

Item Condition : Brand New

Earn 8,509 points when you buy me!

Hurry! Other 2 people are watching this product

SKU

DELL-PS-S5224F-SSS

Add a Review

Be the first to review this product

$8,509.00

In stock

Hurry! Other 2 people are watching this product

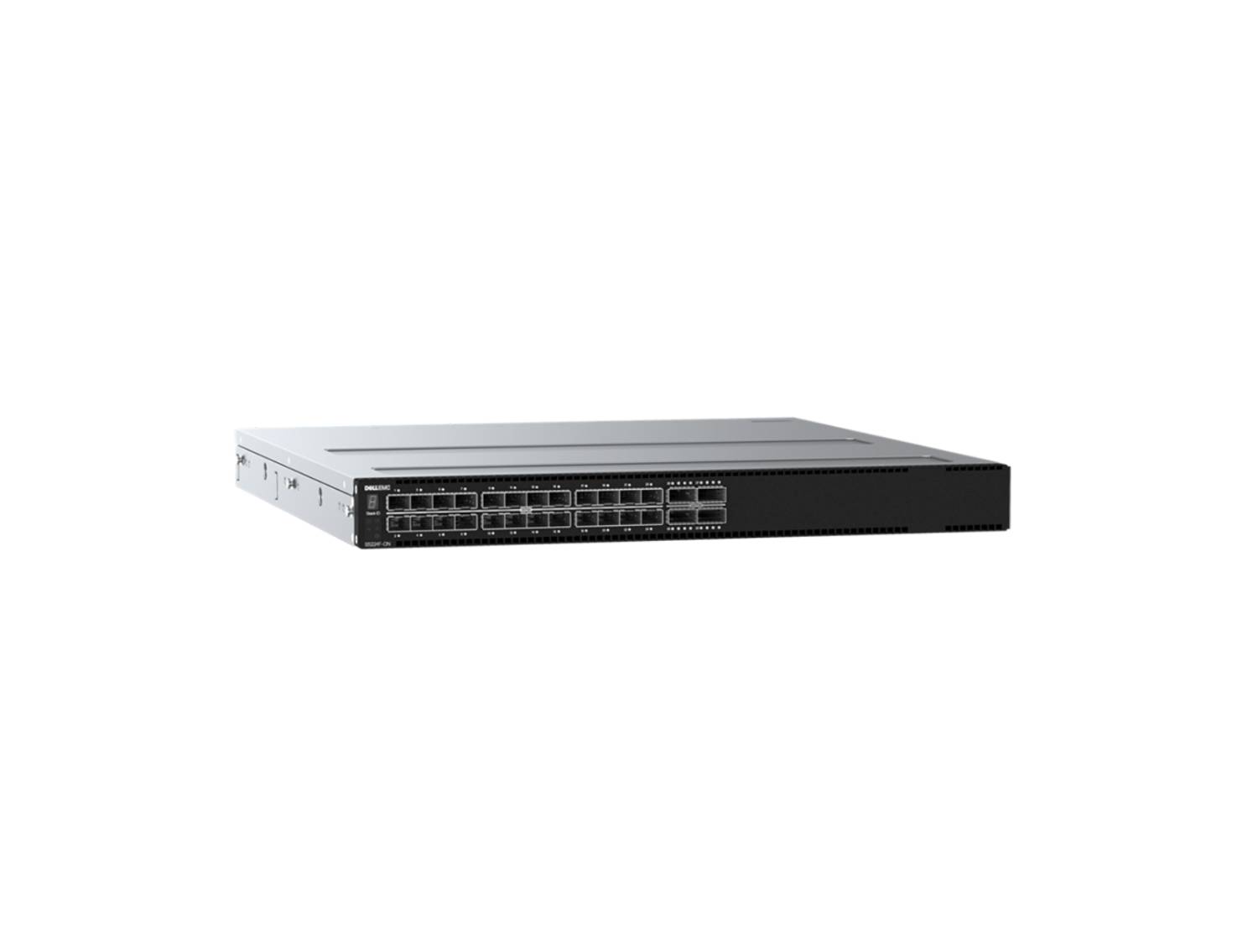

The PowerSwitch S5200-ON 25/100GbE fixed switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise and cloud service providers with demanding compute and storage traffic environments.

Details

Dell S5200-ON High Performance Networking

High-performance, open networking

Deliver agile, cost-effective 25GbE/100GbE top-of-rack and spine/leaf switching for high-density, high-performance data centers.

Flexible deployments across data centers

From 12-port to 96-port and spine/leaf options, S5200-ON delivers flexibility with non-blocking performance for software-defined, cloud, and HPC networks.

Smart fabric ready and highly compatible

Supports Dell SmartFabric OS10 or 3rd party NOS, with features like VXLAN, DCB, ONIE support, hot-swappable components, and airflow flexibility for maximum data center integration.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Ports

24x SFP28
4x QSFP28

Max Ethernet Density

10GbE: 24 (SFP28), 16 (QSFP28 breakout)
25GbE: 24 (SFP28), 16 (QSFP28 breakout)
40GbE: 4 (QSFP28)
50GbE: 8 (QSFP28 breakout)
100GbE: 4 (QSFP28)

Performance

Switching Capacity: 1.08 Tbps (2.16 Tbps full duplex)
Throughput: 720 Mpps (1.42 Bpps full duplex)
Latency: 881 nanoseconds

Memory & Storage

CPU Memory: 8 GB
SSD: 32 GB
Packet Buffer: 32 MB

Power

Maximum Power: 445 W
Typical Power: 200 W
Maximum Current: 4.2A@110VAC / 2.1A@220VAC

Cooling & Form Factor

Fan Modules: 4
Form Factor: 1RU

Physical Dimensions

Dimensions: 17.1”W x 18.1”D x 1.7”H (43.4W x 46.0D x 4.4H cm)
Weight: 9.7 kg (21.4 lbs)

Thermal Output

Max Thermal Output: 1552 BTU/h
