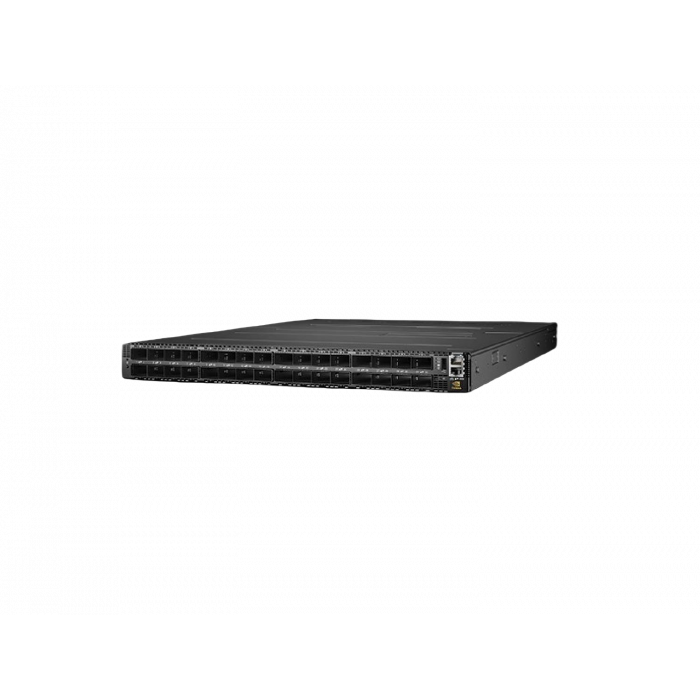

Dell PowerSwitch Quantum-2 QM9700 64-Port 400Gb/s InfiniBand Switch

Accelerate Research, Innovation, and Product Development

As HPC and AI workloads grow in complexity, NVIDIA Quantum-2 delivers the industry's highest-performance 400Gb/s InfiniBand networking—powering extreme-scale research, innovation, and development.

Advanced Computing Needs Advanced Networking

The QM9700 switch system offers 64 ports of 400Gb/s InfiniBand in a compact 1U chassis, delivering 51.2Tb/s throughput and 66.5B packets/sec. Featuring RDMA, SHARP, and adaptive routing, it meets the needs of modern AI and HPC.

NVIDIA Quantum-2 Bandwidth and Performance

The Era of Data-Driven Computing

SHARPv3 enables unmatched scalability for data aggregation and real-time processing, delivering up to 32X higher AI acceleration for large simulations and real-time applications through In-Network Computing.

Streamlining Network Design and Topologies

With port-splitting, the QM9700 switch supports up to 128 ports at 200Gb/s, making it the highest-density TOR switch for scalable deployments and efficient, cost-effective Fat Tree topologies.

Integrated Router Capabilities

NVIDIA Quantum-2 switches offer scalable routing to expand InfiniBand clusters with exceptional performance for AI, cloud, and research workloads—exceeding the limits of prior generations.

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Performance

400Gb/s per port
64 400Gb/s non-blocking ports
Up to 51.2Tb/s aggregate data throughput

Connectors and Cabling

32 OSFP connectors
Supports passive/active copper or active fiber cables
Supports optical modules

Power Supply

1+1 redundant and hot-swappable
Input: 200-240Vac (US: min 2 phases of 100-110V, at least 208V total)
80 Gold+ and ENERGY STAR certified

Cooling

Front-to-rear or rear-to-front airflow
6+1 hot-swappable fan units

Management Ports

1x USB 3.0
1x USB for I2C channel
1x RJ45
1x RJ45 (UART)

CPU

x86 Coffee Lake i3

System Memory

8GB DDR4 SO-DIMM, 2666MT/s

Storage

16GB M.2 SSD SATA (2242 FF)

Software

MLNX-OS

System Weight

14.5kg

System Dimensions

Height: 1.7 in (43.6 mm)
Width: 17.0 in (438 mm)
Depth: 26.0 in (660.4 mm)

Rack Mount

1U rack mount

Environmental Conditions

Operational Temp: 0° to 35°C (forward airflow), 0° to 40°C (reverse airflow)
Non-operational Temp: -40° to 70°C
Operating Humidity: 10% to 85% non-condensing
Non-operating Humidity: 10% to 90% non-condensing
Altitude: Up to 3050m

EMC (Emissions)

CE, FCC, VCCI, ICES, RCM

Product Safety Compliance

RoHS, CB, cTUVus, CE, CU

Warranty

1 year

Ethernet Switches

Ethernet Switches

DELL EMC MX7116N Fabric Expander Module

Price

38.01

Dell PowerSwitch Quantum-2 QM9700 Series 64-Port NDR 400Gb/s InfiniBand Switch

Have questions about this purchase?

Dell PowerSwitch Quantum-2 QM9700 Series 64-Port NDR 400Gb/s InfiniBand Switch

32x400GbE QSFP56-DD ports

1U

100-240 VAC 50/60 Hz

900 Watts

1.72”h x 17.3”w x 21.7”d

32° to 113°F (0° to 45°C)

Intel Denverton C3758 8 Core @ 2.2GHz

32GB DDR4 ECC

25.6Tbps (full duplex)

5.2Bpps

sub 850ns

All Z-series components are EU RoHS compliant

1 year return to depot constrained
