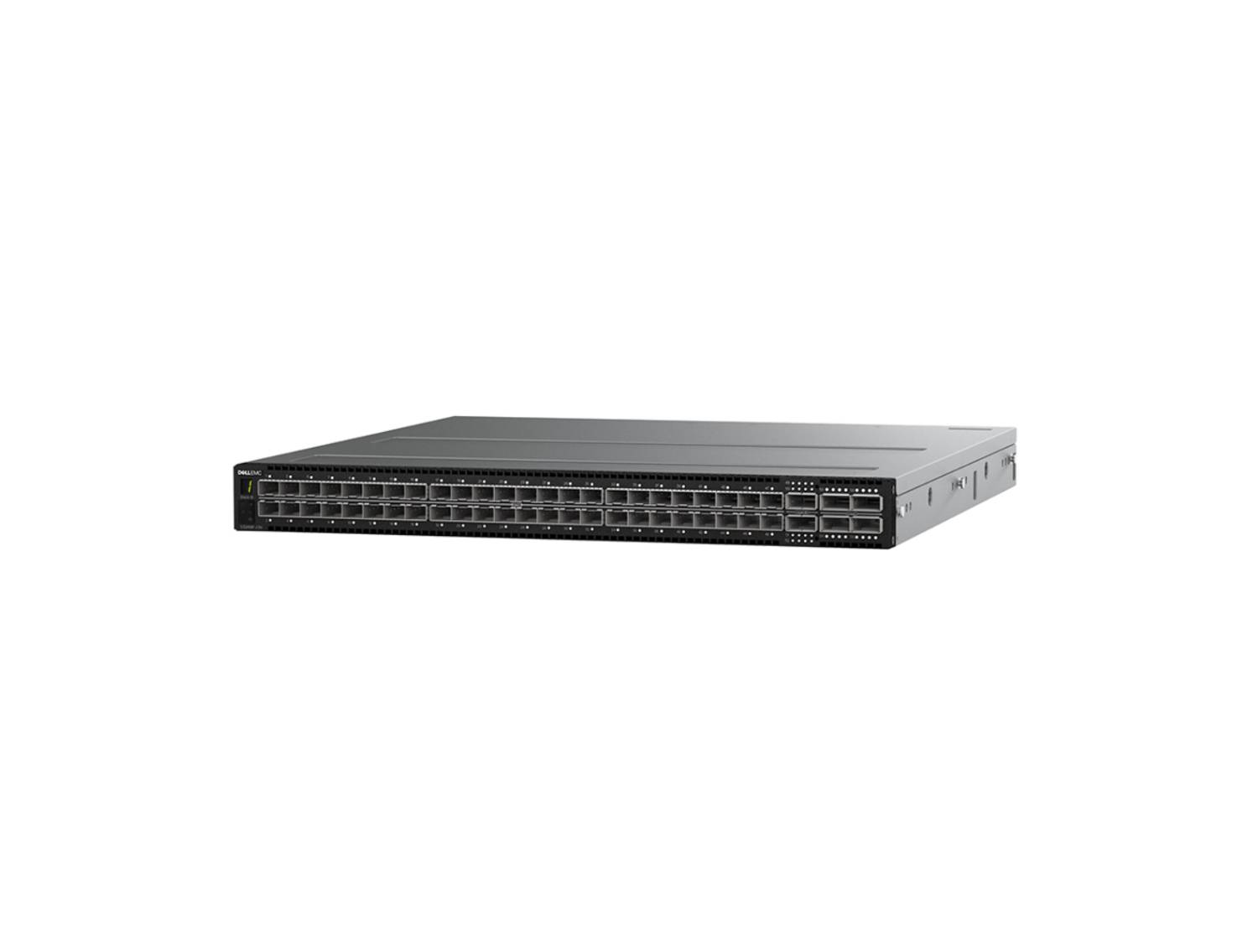

Dell PowerSwitch S5248F-ON S Series Switch

Dell PowerSwitch S5248F-ON S Series Switch

From
$11,391.00
Rewards Banner

Dell PowerSwitch S5248F-ON S Series Switch

MFG.PART: #S5248F-ON
Item Condition : Brand New

Earn 11,391 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
Dell PowerSwitch S5248F-ON S Series Switch
$11,391.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

The PowerSwitch S5200-ON 25/100GbE fixed switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise and cloud service providers with demanding compute and storage traffic environments.

Details

High-performance, open networking 25GbE top-of-rack and 100GbE spine/leaf switches

The Power Switch S5200-ON 25/100GbE fixed switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise and cloud service providers with demanding compute and storage traffic environments.

The S5200-ON is a complete family of switches:12-port, 24-port, and 48-port 25GbE/100GbE switches, 96- port 25GbE/100GbE Middle of Row (MoR)/End of Row (EoR) switch, and a 32-port 100GbE Multi-Rate Spine/ Leaf switch. From the compact half-rack width S5212FON providing an ideal form factor for hyper-converged deployments, to the high density S5296F-ON for Middle of Row deployments, the S5200-ON series offers performance and flexibility for a variety of network designs.

In addition to 100GbE Spine/Leaf deployments, the S5232F-ON can also be used in high density deployments using breakout cables to achieve up to 128 10GbE or 128 25GbE ports.

Using industry-leading hardware and a choice of Dell Smart Fabric OS10 or select 3rd party network operating systems and tools, the S5200-ON switches incorporate multiple architectural features that optimize data center network flexibility, efficiency and availability, including IO panel to PSU or PSU to IO panel airflow for hot/cold aisle environments, redundant, hot-swappable power supplies and fans and deliver non-blocking performance for workloads sensitive to packet loss.

Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S5200-ON family ideally suited for DCB environments.

Dell Power Switch S5200-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell SmartFabric OS10 networking operating system, as well as alternative network operating systems.

S5224F
S5224F
S5224F

Key applications

• Organizations looking to enter the software defined data center era with a choice of networking technologies designed to maximize flexibility
• High-density 10/25GbE server aggregation in high-performance data center environments at the desired fabric speed with the S5248F-ON or S5296FON
• Low-density 10/25GbE server and storage aggregation with the S5212F-ON and S5224F-ON
• Small-scale Fabric implementation via the S5232FON switch in leaf and spine along with S5248F-ON 1/10/25GbE switches enabling cost-effective aggregation of 10/25/40/50/100 uplinks
• Multi-functional 10/25/40/50/100GbE switching in High Performance Computing Clusters or other business sensitive deployments requiring the highest bandwidth.
• iSCSI deployments, including DCB converged lossless transactions
• Single-pass VXLAN routing

Optimized for the open networking era

Get more agility, more choices and lower costs than proprietary networks with select open-standards-based ON (open networking) switches.

• Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
• Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
• Your choice of network operating system helps simplify data-center fabric orchestration and automation.
• A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.

Tech Specs

Tech specs

Ports48xSFP28
2xQSFP28-DD
4xQSFP28
Max 10GbE density48 (SFP28)
16 (QSFP28-DD breakout)
16 (QSFP28 breakout)
Max 25GbE density48 (SFP28)
16 (QSFP28-DD breakout)
16 (QSFP28 breakout)
Max 40GbE density 6 (QSFP28)
4 (QSFP28-DD breakout)
Max 50GbE density16 (QSFP28 breakout)
Max 100GbE density4 (QSFP28)
4 (QSFP28-DD breakout)
Switching capacity2.0 Tbps (4.0 Tbps full duplex)
Throughput1.5 Bpps (3.0 Bpps full duplex)
Max power consumption647W
Typical operating power3310W
Form Factor1RU
Dimension17.1”Wx18.1”D x1.7”H
43.4Wx46.0D x4.4H (cm)
Weight9.7kg (21.4lbs)
Max thermal output2208 BTU/h

Product Specifications

Redundant power supplies
(not applicable to S4112)
AC Power Supply, IO Panel to PSU Airflow AC Power Supply, PSU to IO Panel Airflow
DC Power Supply, IO Panel to PSU Airflow (available as custom kit) DC Power Supply, PSU to IO Panel Airflow (available as custom kit)
Fans (not applicable to S4112)Fan module, IO Panel to PSU Airflow
Fan module, PSU to IO Panel Airflow
