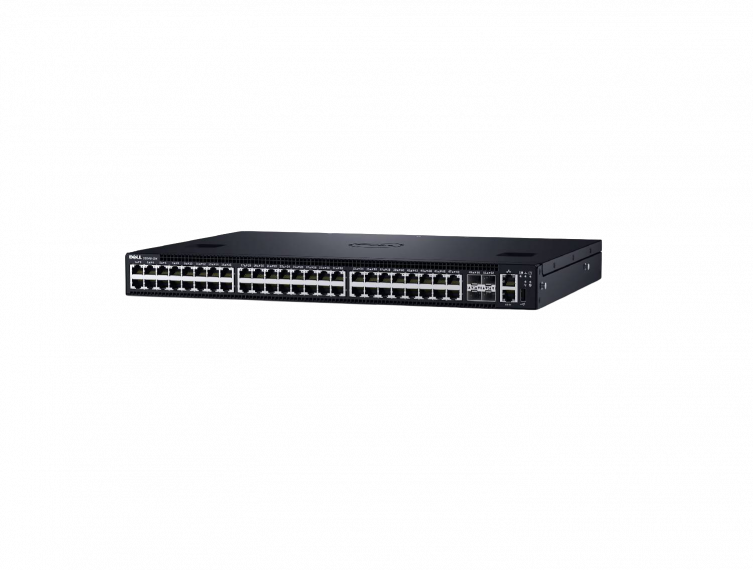

Dell PowerSwitch S3248T-ON 48-Port 1GbE RJ45 Switch with 4 SFP+ and 2 100GbE QSFP28 Uplinks

Modernize network architectures

The S3248T-ON supports VRF Lite, allowing it to be partitioned into multiple virtual routers with isolated control and data planes on the same physical switch.

Deploy with confidence at any scale

The S3248T-ON delivers data rates up to 576Gbps and forwarding rates up to 800Mpps, ensuring high-performance and resilience across deployments.

Enterprise-class support and services

Dell’s ProSupport Infrastructure Suite delivers support tailored to the criticality of your systems and complexity of your environment—available around the clock worldwide.

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Performance

Switch fabric capacity (full duplex): 576Gbps
Forwarding rate: 800Mpps

Power

100 - 240 VAC 50/60 Hz
550W AC hot swappable with IO/PS airflow (optional)
550W AC hot swappable with PS/IO airflow (optional)

Power Cords

C13 to NEMA 5-15, 3M
C13 to C14, 2M

Ports

48x RJ45 10M/100M/1G auto-sensing ports
4x 10G SFP+ ports
2x 100GbE QSFP28 uplink ports (rear)
Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port
USB (Type B) console port
RJ45 console port with RS232 signaling

Dimensions & Weight

H x W x D: 1.71 x 17.09 x 12.6 in (44 x 434 x 320 mm)
With fan trays & one PSU: 7 kg (15.43 lb)
With fan trays & two PSUs: 7.9 kg (17.42 lb)
Without PSU & fan trays: 5.9 kg (13.01 lb)
In package: 10 kg (22.05 lb)

Security

RADIUS
TACACS+
802.1x

Regulatory

Australia/New Zealand: ACMA RCM Class A
Canada: ICES Class A; cUL
China: CCC Class A; NAL
Europe: CE Class A
Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC
Germany: GS mark
RoHS compliance
EU WEEE
EU Battery Directive
REACH
Japan: JEL

Management

CLI
SNMP
REST APIs

Other Switching

Enterprise SONiC Distribution by Dell Technologies
Open networking

Environmental Operating Conditions

Power supply efficiency: 80% or better
Max. thermal output: 1111.40 BTU/hr
Max. power consumption: 212W
Operating temperature: 32° to 113°F (0° to 45°C)
Operating humidity: 5% to 95% noncondensing
Storage temperature: –40°F to 149°F (–40°C to 70°C)
Storage humidity: 5% to 95% noncondensing
