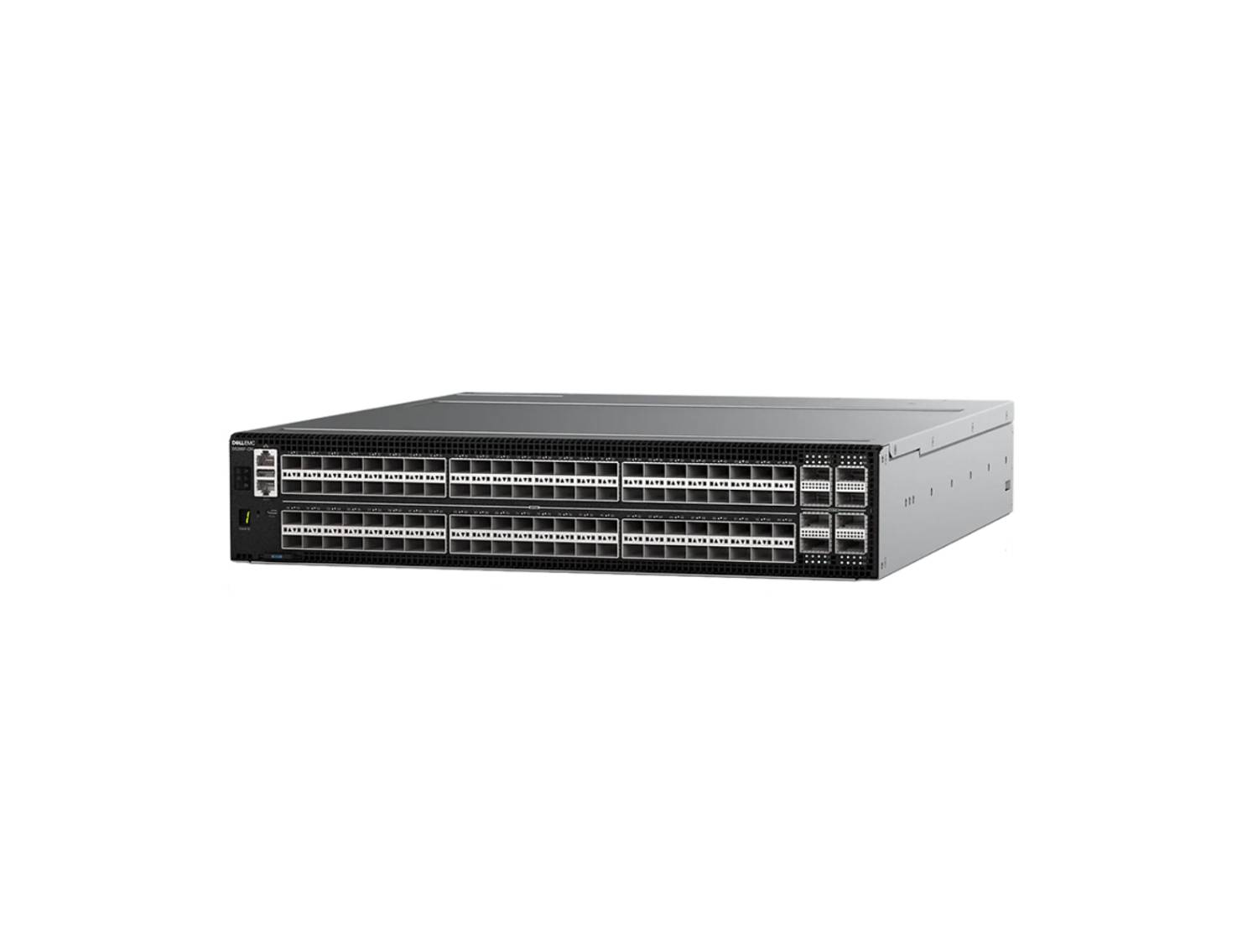

Dell PowerSwitch S5296F-ON S Series Switch

Dell PowerSwitch S5296F-ON S Series Switch

From
$17,689.00
Rewards Banner

Dell PowerSwitch S5296F-ON S Series Switch

S5296F-ON
Item Condition : Brand New

Earn 17,689 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
DELL-PS-S5296F-SSS
$17,689.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

The PowerSwitch S5200-ON 25/100GbE fixed switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and cost-effectiveness for web 2.0, enterprise and cloud service providers with demanding compute and storage traffic environments.

Details
Dell S5200-ON High Performance Networking

High-performance, open networking

Deliver agile, cost-effective 25GbE/100GbE top-of-rack and spine/leaf switching for high-density, high-performance data centers.

Dell PowerSwitch S5200-ON Deployment

Flexible deployments across data centers

From 12-port to 96-port and spine/leaf options, S5200-ON delivers flexibility with non-blocking performance for software-defined, cloud, and HPC networks.

Dell S5200-ON Series

Smart fabric ready and highly compatible

Supports Dell SmartFabric OS10 or 3rd party NOS, with features like VXLAN, DCB, ONIE support, hot-swappable components, and airflow flexibility for maximum data center integration.

Dell PowerSwitch SmartFabric Ready
Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Ports

  • 96x SFP28
  • 8x QSFP28

Max 10GbE Density

  • 96 (SFP28)
  • 32 (QSFP28 breakout)

Max 25GbE Density

  • 96 (SFP28)
  • 32 (QSFP28 breakout)

Max 40GbE Density

  • 8 (QSFP28)

Max 50GbE Density

  • 16 (QSFP28 breakout)

Max 100GbE Density

  • 8 (QSFP28)

Switching Capacity

  • 3.2 Tbps (6.4 Tbps full duplex)

Throughput

  • 2.4 Bpps (4.8 Bpps full duplex)

Latency

  • 850 ns

Memory & Storage

  • CPU Memory: 16GB
  • SSD: 64GB
  • Packet Buffer: 32MB

Power

  • Maximum Power: 893W
  • Typical Power: 457W
  • Maximum Current: 8.2A @110VAC / 4.1A @220VAC

Cooling

  • Fan Modules: 4

Form Factor

  • 2RU

Dimensions

  • 17.4”W x 20.1”D x 3.4”H
  • 44.2W x 51.1D x 8.7H (cm)

Weight

  • 15.1kg (33.2lbs)

Max Thermal Output

  • 3047 BTU/h
Models

Ethernet Switches
