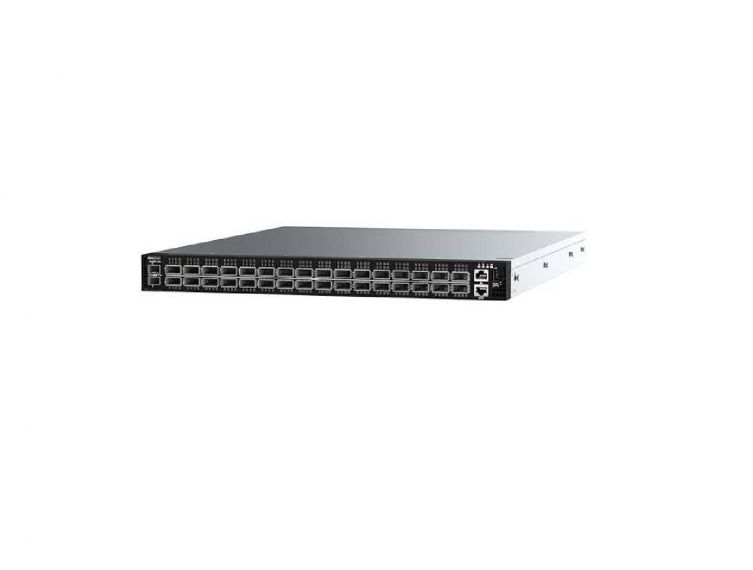

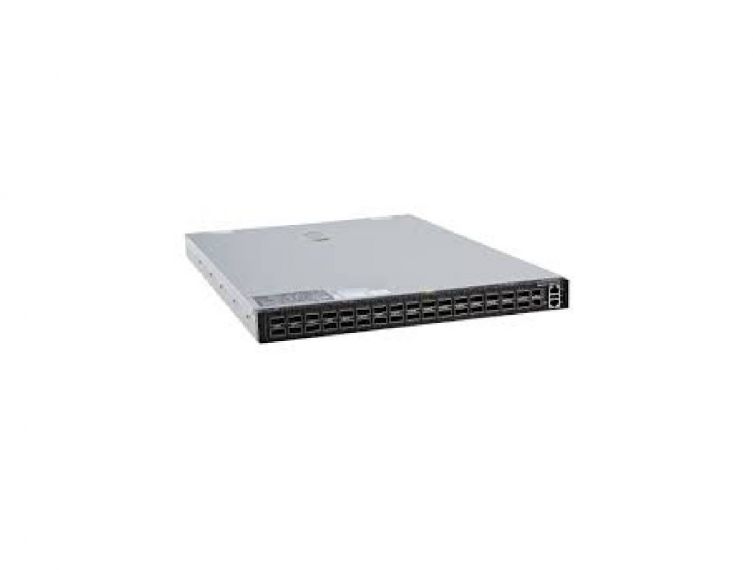

DELL PowerSwitch Z9432F-ON - High-Performance, High-Density Open Networking 400GbE Multi-Rate Aggregation Switch

Z9432F-ON
Item Condition : Brand New
Hurry! Other 3 people are watching this product
SKU
Dell-Z9432F-ON
Add a Review
Be the first to review this product
$15,299.99
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 3 people are watching this product

This unique open networking 400GbE switch provides state-of-the-art, high-density 100/400 GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment, offering optimum flexibility and cost-effectiveness for the web 2.0, enterprise, mid-market and cloud service providers with demanding compute and storage traffic environments.

Details

Networking for the future-ready data center

Our open networking vision embraces massive scalability along with added agility in open, disaggregated solutions. Pick and choose the hardware, software, and network operating software (and components) that best fit your requirements within your data center and at the edge.

At the same time, take advantage of automation and innovative management tools and other key integrations that streamline and simplify your experience with open networking technology.

Dell Z-Series Networking

Ultimate flexibility — from density to deployment

Dell PowerSwitch Z-series switches simplify manageability and give you the flexibility to stay ahead of data needs rather than react to them.

  • Optimized leaf/spine architecture with Z-series switches supports data centers of virtually any size, with up to 100,000 servers.
  • Exceptionally high density with Z9864F-ON providing 64 ports of 800GbE, Z9664F-ON with 64 ports of 400GbE, and Z9432F-ON with 32 ports of 400GbE.
Z-Series Deployment

On-demand performance

  • Multi-rate options including 10, 25, 40, 50, 100, 200, 400 and 800GbE.
  • Up to 51.2Tb/s non-blocking (half duplex) on Z9864F-ON, 25.6Tb/s on Z9664F-ON, and 12.8Tb/s throughput on Z9432F-ON.
  • Exceptional low latency delivering sub-microsecond performance.
  • User-configurable table adjustments for virtualized data-center deployments.
Z-Series Core Aggregation

Energy and resource efficient

Dell PowerSwitch Z-series offers outstanding performance and is one of the most power-efficient fabric switches on the market today. The Z-series switches help reduce energy costs, speed setup and improve the bottom line with:

  • Up to one-third the power consumption of comparable leading switches.
  • Up to 7x faster deployment over traditional deployment methods.
  • Tool-less enterprise ReadyRails™ for fast, easy installation.
Dell Z-Series Power Efficiency
Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Physical

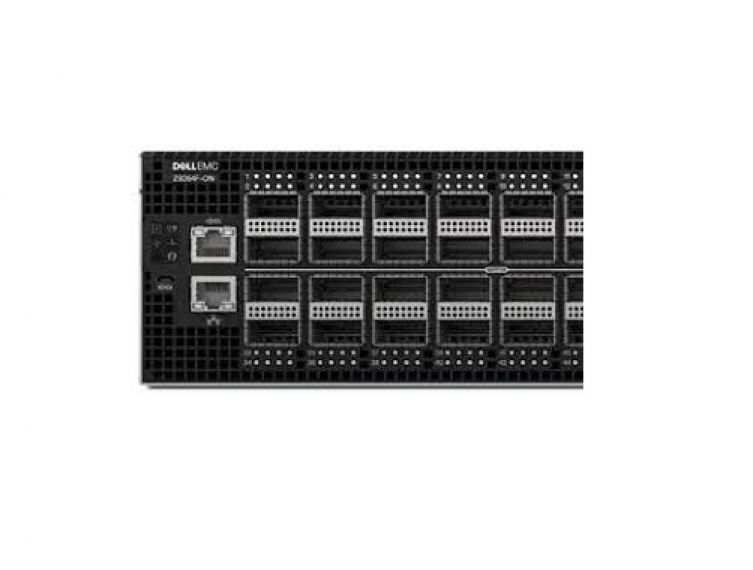

  • 1 RJ45 console/management port with RS232 signaling and Micro USB-B port
  • 1 10/100/1000BASE-T Ethernet for management
  • 1 USB 2.0 type A storage port

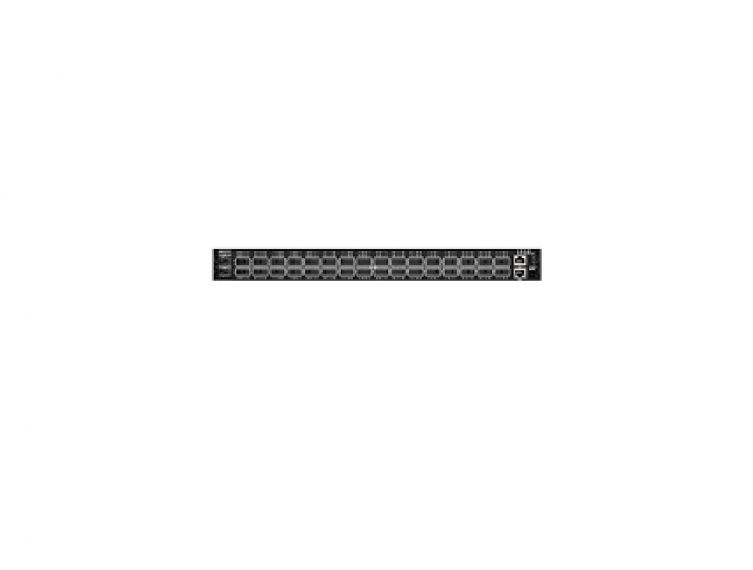

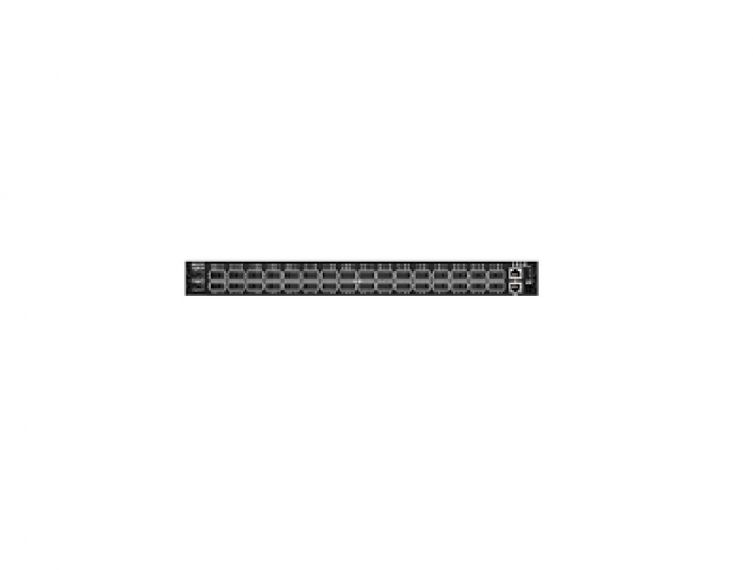

  • 32x400GbE QSFP56-DD ports + 2xSFP+ 10GbE

Chassis

  • Size: 1 RU, 1.72”h x 17.3”w x 21.7”d (4.35h x 43.8w x 55.0d)
  • Weight: 22 lbs (9.98 kg)

Environmental – Operating

  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Operating humidity: 5 to 90% RH, non-condensing

Environmental – Non-Operating

  • Storage temperature: -40°C to 70°C (-40°F to 158°F)
  • Storage humidity: 5 to 95% RH, non-condensing
  • Fresh air compliant to 45°C

Power

  • Power supply: 100–240 VAC, 50/60 Hz
  • Max Power Consumption: 1404W
  • Typical Power Consumption: 900W
  • Supports both lowline and highline AC power modes

Redundancy

  • Hot swappable redundant power (2 per switch, 1 + 1 redundancy except with using lowline power)
  • Hot swappable redundant fans (7 per switch, 6 + 1 redundancy)

Performance

  • Switch fabric capacity: 25.6Tbps (full duplex)
  • Forwarding capacity: 5.2Bpps
  • Latency: Sub 850ns
  • Packet buffer memory: 132MB
  • NPU Pipeline: Programmable via NPL
  • CPU: Intel Denverton C3758 8 core @ 2.2GHz
  • Memory: 32GB DDR4 ECC

Routing & Tables

  • MAC addresses: 156K
  • ARP: 16K standalone, 8K shared
  • IPv4 Routes: up to 400K (ALPM)
  • IPv6 Routes: 300K
  • Multicast Hosts: 1K | Multicast IPv6: 4K
  • Layer 2 VLANs: 4K | MSTP: 64 instances
  • LAG load balancing: Based on Layer 2, IPv4 or IPv6 headers

Timing & Synchronization

  • PTP/1588 and SyncE with Timing Card

Security

  • Trusted Platform Module (TPM)

Optics & Airflow

  • Supports up to 4 ports of 20W optics (IO/PSU airflow direction)
  • Supports up to 15W optics in all QSFP56-DD ports

Software & Protocols

  • Compliant with Dell SmartFabric OS10
  • IEEE Standards: 802.1AB LLDP, 802.3ad LAG, 802.1Q VLAN, 802.1X NAC, 802.1Qbb PFC, 802.1Qaz ETS, and more
  • Layer 2: MSTP, RSTP, RPVST+, VLT, VRRP
  • IPv4 & IPv6 Protocols: DHCP, NTP, VRRPv3, BGP, OSPFv2/v3, ICMPv6, Static Routing
  • Security: RADIUS, TACACS+, 802.1X, IP ACLs
  • QoS: Rate Shaping, Scheduling (WRR, DRR, Strict Priority), WRED
  • Multicast: IGMPv2, MLDv2 Snooping
  • Network Monitoring: SNMPv1/2c, Syslog, Port Mirroring, sFlow
  • Automation: ZTD, Ansible, Puppet, Chef, SaltStack, RestConf APIs
  • SDN: OpenFlow 1.3 (Native)

MIB Support

  • Includes standard and Dell-vendor MIBs: IP, IF, LLDP, SNMPv2, SFLOW, PFC, etc.

Operating System

  • Debian Linux version 9
  • Linux Kernel 4.19

Regulatory Compliance

  • Safety: UL, IEC/EN standards
  • Emissions & Immunity: EN55032, FCC Part 15, EN 61000 series
  • RoHS Compliant
