Juniper QFX5230

MFG.PART: QFX5230-64CD
Item Condition : Brand New

Earn 9,999 points when you buy me!

Hurry! Other 3 people are watching this product
SKU
QFX5230
Add a Review
Be the first to review this product
$9,999.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 3 people are watching this product

The QFX5230 Switch supports high-speed, high-density, spine-and-leaf IP fabrics. Use cases include AI data center networking deployments with AI/ML workloads where scalability, performance, and low latency are critical.

The switch offers 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE connections and features such as advanced Layer2/Layer 3 capabilities and secure zero-touch provisioning. The QFX5230 enables network operators to build large, next-generation IP fabrics based on a proven, Internet-scale software suite with best-in-class automation capabilities.

Details

The QFX5230 is a high-performance data center switch provided by Juniper Networks. It is designed to support high-speed, high-density, spine-and-leaf IP fabrics, making it an ideal choice for AI data center networking and other demanding use cases.



One of the key features of the QFX5230 is its impressive port density. With 64 x 400GbE ports, this switch offers a significant amount of bandwidth for data-intensive applications. The line-rate, high-density QSFP+/QSFP28 ports support a wide range of connection speeds, including 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE.



In terms of performance, the QFX5230 delivers exceptional throughput and low latency, ensuring smooth and efficient data transmission. It leverages advanced switching technologies to optimize network performance and minimize packet loss. This makes it suitable for high-bandwidth network switching devices that require reliable and fast connectivity.



The QFX5230 is built with scalability in mind. It supports a modular design, allowing for easy expansion and customization based on specific network requirements. The switch is also equipped with a fully programmable chipset, enabling flexible configuration and management of Layer 2, Layer 3, and EVPN-VXLAN features.

QFX5230
QFX5230
QFX5230

When it comes to management and control, the QFX5230 offers comprehensive capabilities. It runs on Junos OS, a robust and feature-rich operating system developed by Juniper Networks. Junos OS provides a wide range of tools and protocols for network management, monitoring, and security. It also supports automation and orchestration, simplifying the deployment and operation of network infrastructure.



In terms of physical specifications, the QFX5230 is a compact and space-efficient switch. It is designed to fit into standard rack units, making it easy to integrate into existing data center environments. The switch has a sleek and modern design, with a user-friendly interface for easy configuration and monitoring.



the QFX5230 is a powerful and versatile data center switch that offers high-performance networking capabilities. With its impressive port density, scalability, and advanced features, it is well-suited for modern data centers that require reliable and high-speed connectivity. Whether it's for AI applications, cloud computing, or other demanding workloads, the QFX5230 provides the performance and flexibility needed to meet the requirements of today's data-driven environments.











Tech Specs

Tech specs

System Capacity

System ThroughputUp to 25.6/51.2 Tbps (uni/bidirectional)
Forwarding Capacity10.6 billion packets per second

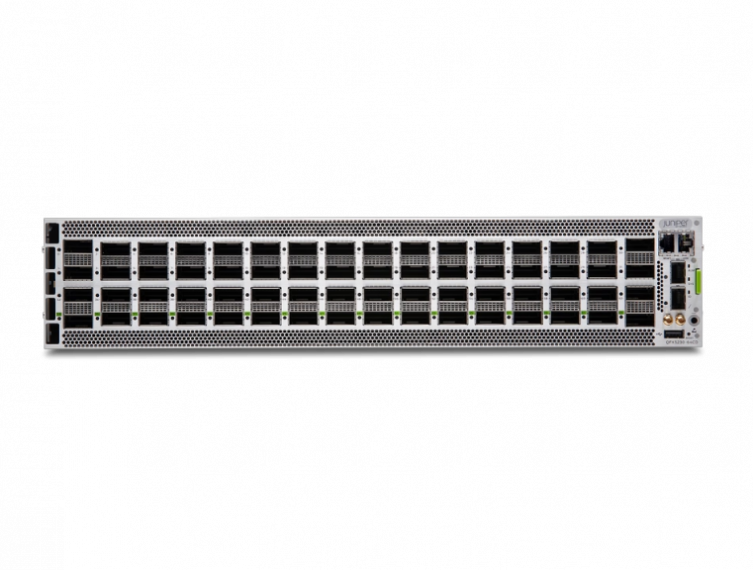

Port Density64 ports of QSFP56-DD 400GbE
Maximum Ports with Breakout128 × 200GbE, 256 × 100GbE, 64× 40GbE, 256 × 25GbE, or 256 × 10GbE
Dimensions (W x H x D)17.4 x 3.43 x 25.6 inches
Rack Units2 U
Weight55 lbs (25 kg) with power supplies and fans installed
Operating SystemJunos OS Evolved
CPUIntel Hewitt Lake (6 core)
Memory32GB (16GBx2) of DDR4
Storage2x100GB

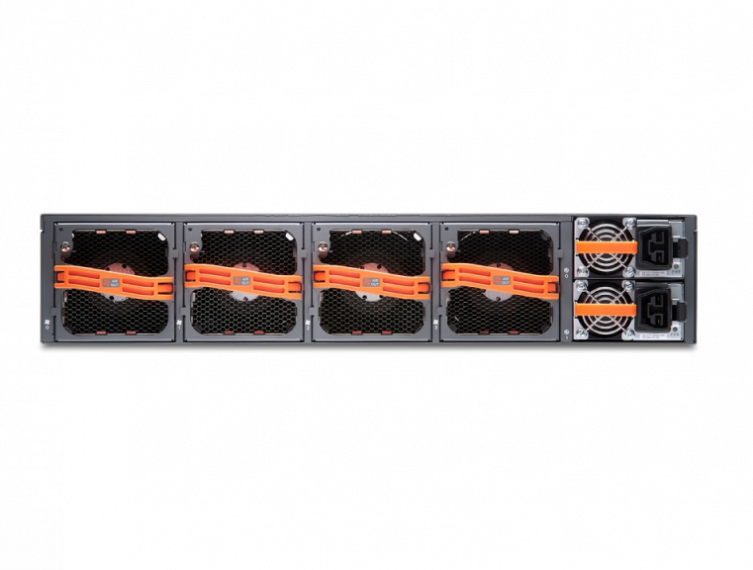

PowerRedundant (1+1) hot-pluggable 3000 W AC/2400W DC power supplies
CoolingPorts-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling
Redundant (5x2+1) +1 hot-pluggable fan modules
Total Packet Buffer112 MB
WarrantyJuniper standard one-year warranty

System Specifications

System throughputUp to 25.6 Tbps
Forwarding rateUp to 10.6 Bpps
Dimensions (W x H x D)17.4 x 3.43 x 25.6 in
Switching capacity25.6 Tbps / 10.6 Bpps


Environmental Ranges

Operating Temperature- AFO System: 0°C to 40°C @ 6000 ft
- AFI Systems: 0°C to 40°C @ sea level
Storage Temperature-40°C to 70°C
Operating Altitude- AFO: 6000 ft
- AFI: Sea level
Relative Humidity (Operating)5% to 90% non-condensing
Relative Humidity (Non-operating)5% to 90% non-condensing
SeismicZone 4 earthquake rating
Typical Power Draw580 W (50% traffic with DACs @ 25°C-31°C)


Security

UL 60950-1:2007 R5.19Information Technology Equipment – Safety (UL standard)
CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014Information Technology Equipment—Safety (Canadian standard)
IEC 62368-1:2014Audio/Video, Information and Communication Technology Equipment—Safety (International standard with country deviations)
IEC 62368-1:2018Audio/Video, Information and Communication Technology Equipment—Safety (International standard with country deviations)
EN 62368-1:2014+A11:2017Audio/Video, Information and Communication Technology Equipment—Safety (European standard)
UL 62368-1:2019 R10.21Audio/Video, Information and Communication Technology Equipment—Safety (UL standard)
CSA C22.2 No. 62368-1:19Audio/Video, Information and Communication Technology Equipment—Safety (Canadian standard)
IEC/EN 60825-1Safety of Laser Products—Part 1: Equipment Classification and Requirements (International standard)
IEC/EN 60825-2Safety of Laser Products—Part 2: Safety of Optics Fibre Communication Systems (International standard)

Electromagnetic Compatibility

FCC 47 CFR Part 15Federal Communications Commission (FCC) regulations for radio frequency devices in the United States
ICES-003 / ICES-GENIndustry Canada (IC) standards for electromagnetic compatibility and emissions in Canada
BS EN 55032European standard for electromagnetic compatibility (EMC) for multimedia equipment
BS EN 55035European standard for electromagnetic compatibility (EMC) for multimedia equipment
EN 300 386 V1.6.1European Telecommunications Standards Institute (ETSI) standard for electromagnetic compatibility (EMC) of telecommunications equipment
EN 300 386 V2.2.1European Telecommunications Standards Institute (ETSI) standard for electromagnetic compatibility (EMC) of telecommunications equipment
BS EN 300 386European standard for electromagnetic compatibility (EMC) of telecommunications equipment
EN 55032European standard for electromagnetic compatibility (EMC) for multimedia equipment
CISPR 32International Special Committee on Radio Interference (CISPR) standard for multimedia equipment EMC
EN 55035European standard for electromagnetic compatibility (EMC) for multimedia equipment
CISPR 35International Special Committee on Radio Interference (CISPR) standard for multimedia equipment EMC
IEC/EN 61000 SeriesSeries of International Electrotechnical Commission (IEC) and European standards for electromagnetic compatibility (EMC)
IEC/EN 61000-3-2IEC and European standard for the limitation of harmonic current emissions
IEC/EN 61000-3-3IEC and European standard for the limitation of voltage fluctuations and flicker
AS/NZS CISPR 32Australian and New Zealand EMC standard for multimedia equipment
VCCI-CISPR 32Voluntary Control Council for Interference (VCCI) standard for multimedia equipment EMC in Japan
BSMI CNS 15936Bureau of Standards, Metrology and Inspection (BSMI) standard for EMC in Taiwan
KS C 9835 (Old KN 35)Korean industrial standard for EMC (previous standard)
KS C 9832 (Old KN 32)Korean industrial standard for EMC (previous standard)
KS C 9610Korean industrial standard for EMC
BS EN 61000 SeriesEuropean standards for electromagnetic compatibility (EMC)
NEBS GR-1089-Core Issue 8Network Equipment-Building System (NEBS) standard for EMC and electrical safety for network telecommunications equipment
