Juniper EX2300
Earn 1,596 points when you buy me!

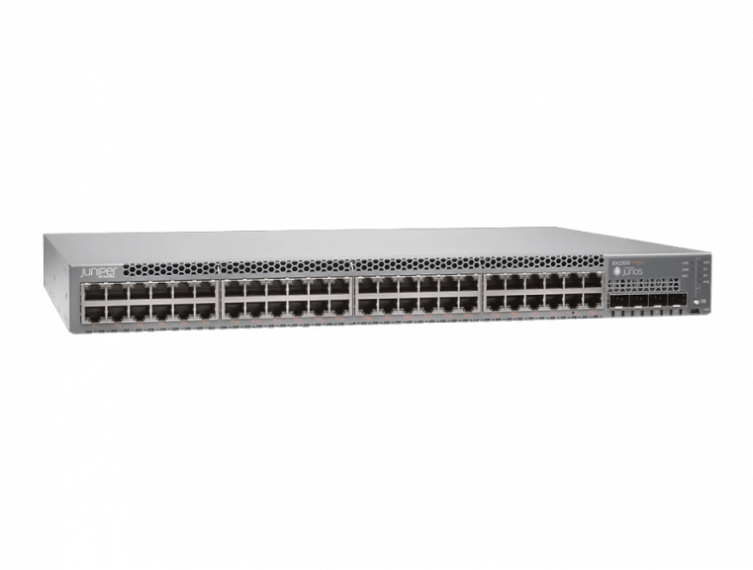

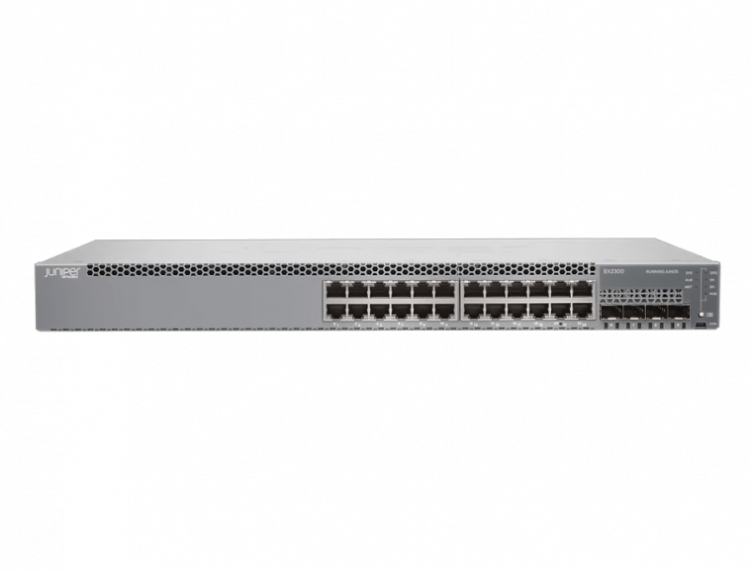

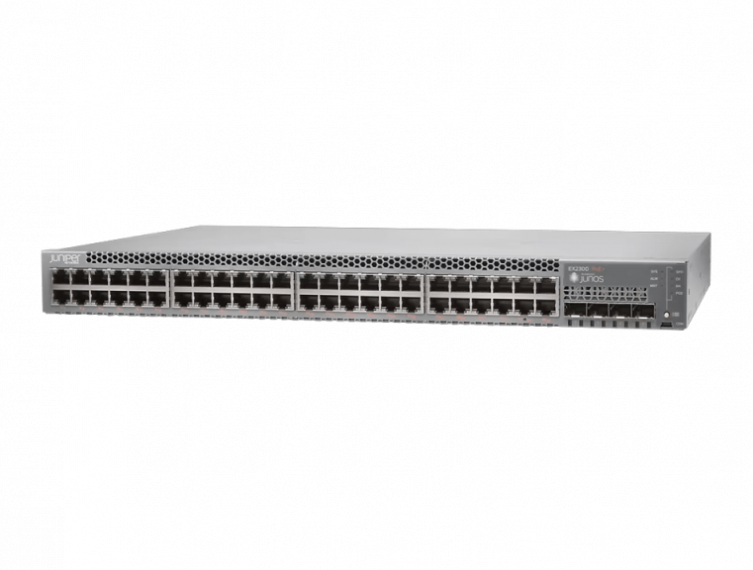

The EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The Juniper Networks EX2300 Ethernet Switch offers an economical, entry-level, standalone solution for accesslayer deployments in branch and remote offices, as well as enterprise campus networks. To simplify network operations, the EX2300 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller networks, up to four EX2300 switches can be interconnected in a Virtual Chassis configuration, allowing them to be managed as a single switch.
The Juniper Networks EX2300 line of Ethernet switches offers a compact, highperformance solution for supporting today’s converged network access deployments.
Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. Based on existing, field-proven Juniper Networks technology, the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world’s largest service provider networks.
Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 740 watts to deliver up to 30 watts to select ports.
The EX2300 is cloud-ready and ZTP-enabled, so you can onboard, configure, and manage it with Juniper Mist™ Wired Assurance for improved connected-device experiences. In addition, the Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI simplifies operations and improves visibility into the performance of connected devices. EX2300 switches support Juniper’s Virtual Chassis technology, which simplifies operations by interconnecting up to four switches that can be managed as a single logical device.
Additional features include:
-PoE-enabled EX2300 switches can simultaneously deliver up to 15.4 watts of standards-based 802.3af Class 3 PoE to a maximum of 48 ports or 30 watts of standards-based 802.3at PoE+ to a maximum of 24 ports, based on a total system budget of 740 watts.
-Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE optics interfaces (optional license required).
-Fixed power supply and uplink ports ensure operational simplicity.
-Low power consumption, low acoustic fans, and a small 10-inch deep footprint enable flexible, environmentally friendly deployment.
-Support for L2 protocols as well as L3 protocols like RIP and static routing are included in the base license.
-An optional enhanced license is available for supporting additional L3 protocols such as OSPF, Internet Group Management Protocol (IGMP v1/v2/v3), Protocol Independent Multicast (PIM), Bidirectional Forwarding Detection (BFD), and Virtual Router Redundancy Protocol (VRRP).
-Support is available for IPv6 management, including neighbor discovery, telnet, SSH, DNS, system log, and NTP.
-A single release train for Juniper Networks Junos operating system is supported to ensure a consistent control plane feature implementation.
-Modular Junos OS prevents a switch reboot if a single protocol feature fails.
-The device integrates with Juniper Networks Unified Access Control to provide per-user access control and policing.
-Built-in Web interface (Juniper Networks J-Web Software) is provided.

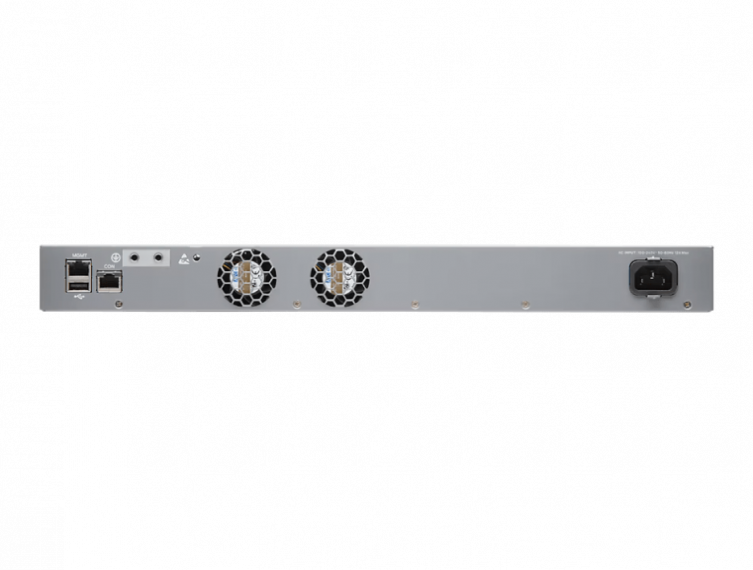

-RJ-45 serial console port is available.
-USB mini console port is included.
-Out-of-band Ethernet management port is provided.
-Reduction of Hazardous Waste (RoHS) is certified.
| MFG Number | MFG.PART: EX2300-24P |
|---|---|
| Condition | Item Condition : Brand New |
| Price | $3,232.00 |
| Switches Rack Unit | 1U |
| Capacity | 64/128 Gbps (uni/bidirectional) |
| Power | 80W AC |
| Order Processing Guidelines | Order Processing Guidelines:
Inquiry First – Please reach out to our team to discuss your requirements before placing an order. |
| Special Price | $1,596.99 |
| Special Price From Date | Feb 22, 2024 |
