Juniper MX10008 Router

MFG.PART: MX10008-BASE
Item Condition : Brand New

Earn 77,593 points when you buy me!

Hurry! Other 2 people are watching this product
SKU
Juniper-MX10008-Router
Add a Review
Be the first to review this product
Special Price $77,593.35 Regular Price $96,390.00
In stock
Free shipping
could be yours in 1 - 5 days
favorite
Hurry! Other 2 people are watching this product

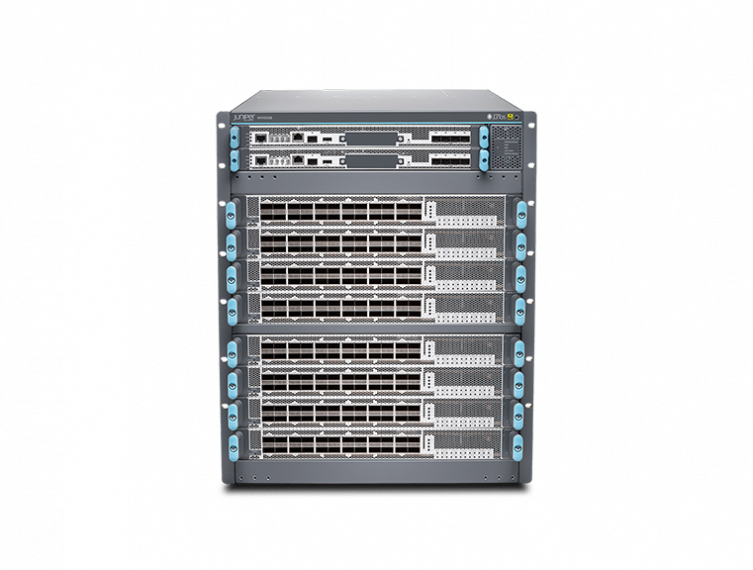

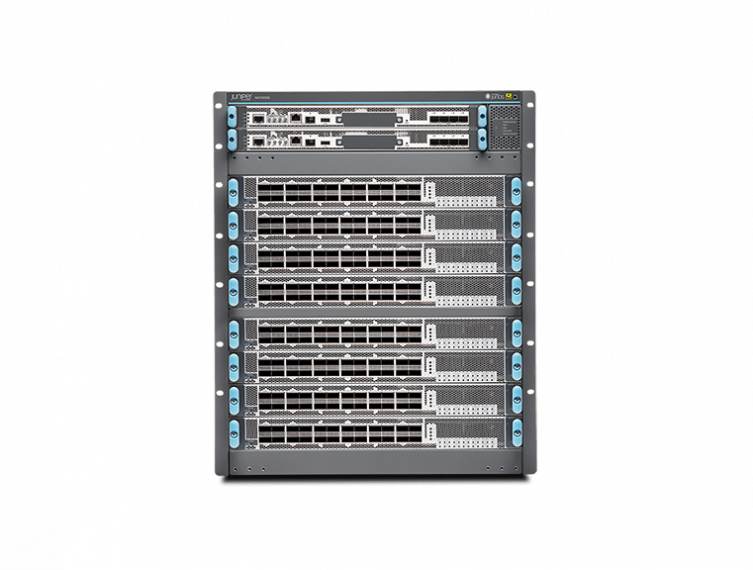

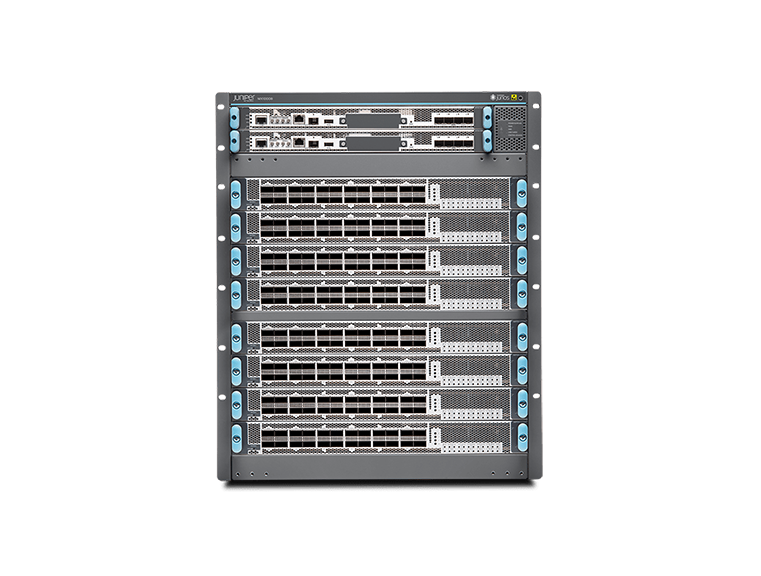

Juniper Networks MX10008 Universal Routing Platform enables cloud and data center operators to transition from 10-Gigabit Ethernet and 40-Gigabit Ethernet networks to 100-Gigabit Ethernet high-performance networks. The 13 rack unit (13 U) modular chassis can provide 76.8 Tbps of throughput and 20 Bpps of forwarding capacity.

MX10008 provides 1-Gigabit Ethernet, 10-Gigabit Ethernet, 40-Gigabit Ethernet, 100-Gigabit Ethernet, or 400-Gigabit Ethernet modular solutions that support up to 76.8 Tbps of throughput. MX10008 provides redundancy and resiliency. All major hardware components including the power system, the cooling system, and the control board are fully redundant.

Details

The MX10000 line of 5G Universal Routing Platforms give cloud and service providers the performance and scalability needed to outpace increased traffic demands. MX10008 provides 1-Gigabit Ethernet, 10-Gigabit Ethernet, 40-Gigabit Ethernet, 100-Gigabit Ethernet, or 400-Gigabit Ethernet modular solutions that support up to 76.8 Tbps of throughput. MX10008 provides redundancy and resiliency. All major hardware components including the power system, the cooling system, and the control board are fully redundant.

Juniper Networks MX10008 Universal Routing Platform enables cloud and data center operators to transition from 10-Gigabit Ethernet and 40-Gigabit Ethernet networks to 100-Gigabit Ethernet high-performance networks. The 13 rack unit (13 U) modular chassis can provide 76.8 Tbps of throughput and 20 Bpps of forwarding capacity. The MX10008 router has eight slots for the line cards that can support a maximum of 768 100-Gigabit Ethernet ports (4x100 GbE breakout cables), 192 40-Gigabit Ethernet ports, 192 100-Gigabit Ethernet ports, or 192 400-Gigabit Ethernet ports. You can deploy the MX10008 router in an IP edge network.

System capacity: MX10008 scales to 76.8 Tbps (153.6 Tbps half- duplex) in a single chassis, with support for up to 768 100-Gigabit Ethernet (4x100 GbE breakout cables), 192 40-Gigabit Ethernet, 192 100-Gigabit Ethernet interfaces, or 192 400-Gigabit Ethernet ports.

Investment Protection:Protect your investment over the long term with a cloud-grade, future-ready platform that can scale with your business as traffic and services grow with fully backward compatible silicon and hardware and the consistency of Junos.

Rich MultiService Edge Features:Supports diverse service provider, enterprise, network security, and data center requirements for today, and prepares for those of the future, with an innovative universal chassis design. This includes IP Transport, BNG, business edge, consumer edge, peering, SDN gateway, data center gateway, cloud edge, and metro aggregation use cases.

EX2300-C
EX2300-C
EX2300-C


SDN-Enabled:Integrates seamlessly with standards-based SDN controllers such as Paragon Automation platform, making the MX10000 an ideal anchor point for service chains that include physical and virtual elements.

Always-on infrastructure base: MX10008 is engineered with full hardware redundancy for cooling, switch fabric, and host subsystems—Routing and Control Boards (RCBs)—allowing service providers to meet stringent service-level agreements across the core.

Source Packet Routing in Networking (SPRING): SPRING on MX10008 provides additional flexibility per packet source. SPRING provides features such as network path and node protection to support MPLS fast reroute (FRR) mechanisms, enhanced network programmability, OAM functionality, simplified network signaling, load balancing, and traffic engineering functions.

Carrier Grade Platform:Combine support for the carrier-grade Junos OS with a fully redundant architecture to maintain nonstop service availability under any network conditions.

Power Efficient:Control operational costs (OpEx) and meet high energy efficiency standards with a suite of advanced power-saving features in a small form factor.

Tech Specs

Tech specs

Brand Name

Juniper Networks

System capacity

76.8 Tbps

Switch fabric capacity per slot9.6 Tb (24 x 400GbE)
DPCs and/or MPCs per chassis8 (MPCs only)
Chassis per rack3
Dimensions (W x H x D)17.4 x 22.75 x 32 in (44.2 x 57.76 x 81.28 cm), 39.3-in (1000 mm) deep with EMI door; 13 RU
Maximum weight330 lb (149.69 kg) excluding line cards or 582.6 lb (264.26 kg) with 8 line cards
Mounting4-post rack mounting
Power options

200-240 VAC / 50-60 Hz or -48 VDC at 60A

Operating temperature

32° to 115° F (0° to 46° C) at sea level
