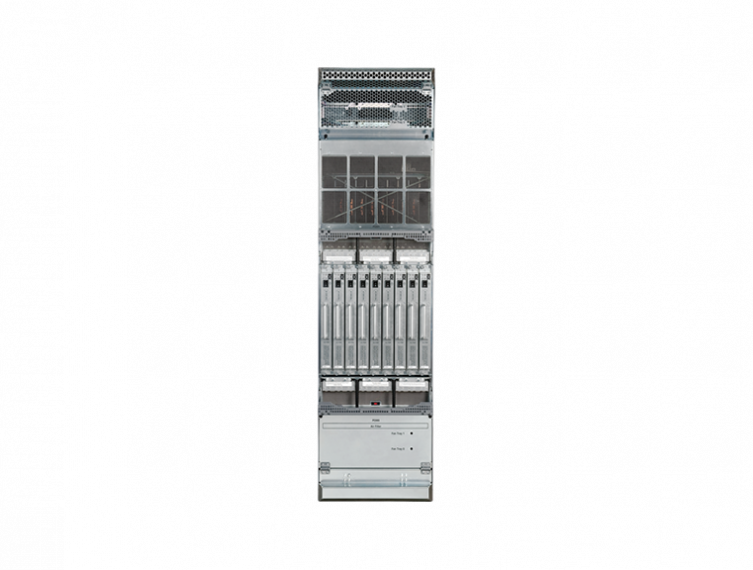

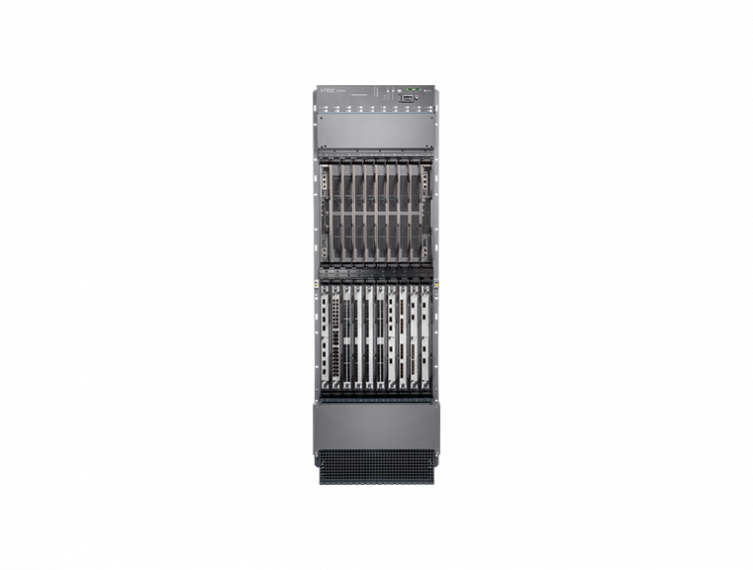

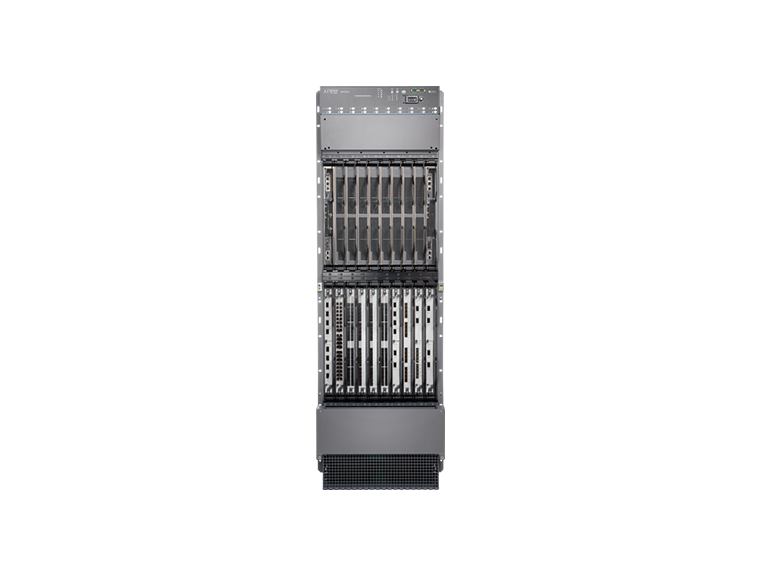

Juniper MX2010 Router

The MX2010 Universal Routing Platform is an Ethernet-optimized router that provides both switching and carrier-class Ethernet routing. The MX2010 router supports service provider core, converged core and edge, and edge applications, and enables a wide range of business and residential and services, including high-speed transport and VPN services, next-generation broadband multiplay services, and high-volume Internet data center internetworking.

The MX2010 chassis provides redundancy and resiliency. All major hardware components including the power system, the cooling system, the Control Board and the switch fabrics are fully redundant.

The MX2010 router is 34 rack units (U) tall. One router can be installed in an open-frame rack, four-post rack, or cabinet. The MX2010 router has 10 dedicated line-card slots which means a maximum of 10 Modular Port Concentrators (MPCs) including adapter cards (ADCs), and Modular Interface Cards (MICs), a host subsystem consisting of 2 Control Board with Routing Engines (CB-REs), and 8 Switch Fabric Boards (SFBs).

High Scale and Density: Provides 40 Tbps of system capacity and support for up to 400 100GbE or 80 400GbE interfaces.

Carrier Grade Platform: Combines support for the carrier-grade Junos operating system with a fully redundant architecture for uninterrupted service availability under any network conditions.

Versatile MultiService Edge: Addresses core, edge, and converged edge and core applications with its ultra-high density and performance. Supports residential and business services, Data Center Interconnect (DCI), SDN gateway, services routing, and many other applications.
