Juniper QFX10016
Earn 74,700 points when you buy me!
QFX10016 switches offer a highly scalable network foundation to support demanding data center, campus, and routing environments. Using our custom silicon Q5 ASICs, the switches include deep buffers and 1GbE/10GbE/40GbE/100GbE/200GbE interface options. With up to 96 Tbps throughput and an extensive set of line cards that support rich Layer 2 and Layer 3 services, they provide long-term investment protection.
Architectural flexibility means you’ll never be locked into a proprietary solution. The switches operate in diverse network environments, including spine-and-leaf fabrics and EVPN-VXLAN overlay architectures.
The Juniper Networks® QFX10000 line of modular Ethernet switches delivers up to 96 Tbps of system throughput, scalable to over 200 Tbps in the future, to meet the rapid and ongoing traffic growth in the data center. Industry-leading scale and density on the QFX10000 modular switches redefine per-slot economics, enabling customers to do more with less while simplifying network design and reducing OpEx. Based on purpose-built Q5 ASICs, the QFX10000 line delivers unparalleled intelligence and analytics, providing deeper insights into application performance.
The QFX10000 line can be deployed in a number of different network designs and fabrics, including Layer 3 fabric, Junos Fusion, and Juniper MC-LAG for Layer 2 and Layer 3 networks, giving customers complete architectural flexibility. Additionally, the open architecture ensures that customers can innovate on top of Juniper Networks Junos® operating system to accelerate the pace of innovation. The QFX10000 line also supports Junos Fusion, a simple, easy-to-deploy fabric that scales to support mid-to-large data center deployments while simplifying network management and configuration.
The QFX10000 is also a key component of Juniper Networks MetaFabric™ Architecture, which provides a simple, open and smart approach to building data center networks. Additionally, the QFX10000 supports Data Center Interconnect (DCI), critical to workload mobility and application availability.
Manage your QFX10016 with turnkey Juniper Apstra intent-based networking software, which automates the entire network lifecycle to simplify design, deployment, and operations and provides closed-loop assurance.
For networks evolving to SDN, the QFX10000 integrates with VMware NSX SDN controllers and can act as a Virtual Extensible LAN (VXLAN) Layer 2 and Layer 3 gateway. The open and standards-based QFX10000 switches also interoperate with the Open vSwitch Database (OVSDB) to support automated management and control capabilities. The QFX10000 line integrates with OpenContrail SDN controller to allow users to choose their
preferred SDN systems.Two QFX10000 modular chassis options are available, providing full deployment flexibility:

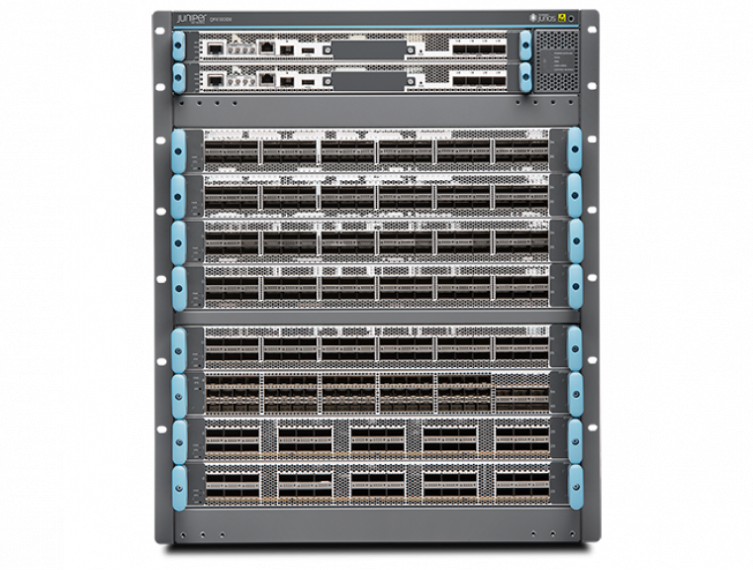

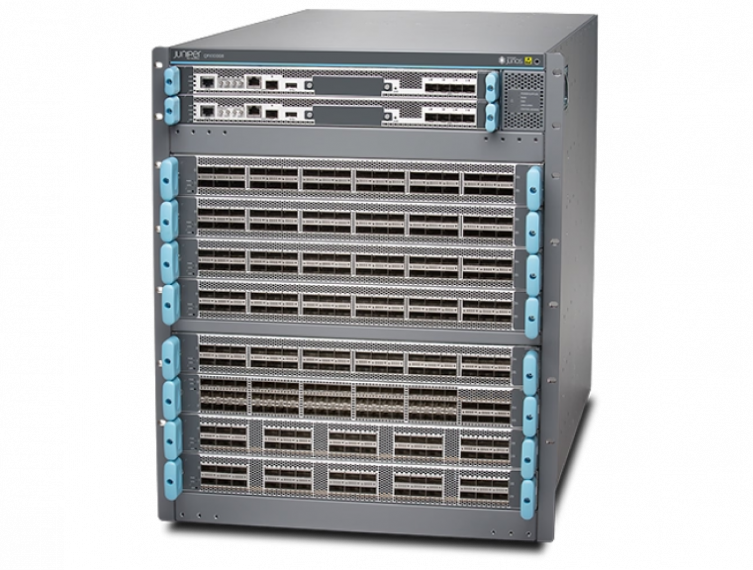

• QFX10008 Ethernet Switch, an 8-slot, 13 U chassis that supports up to eight line cards

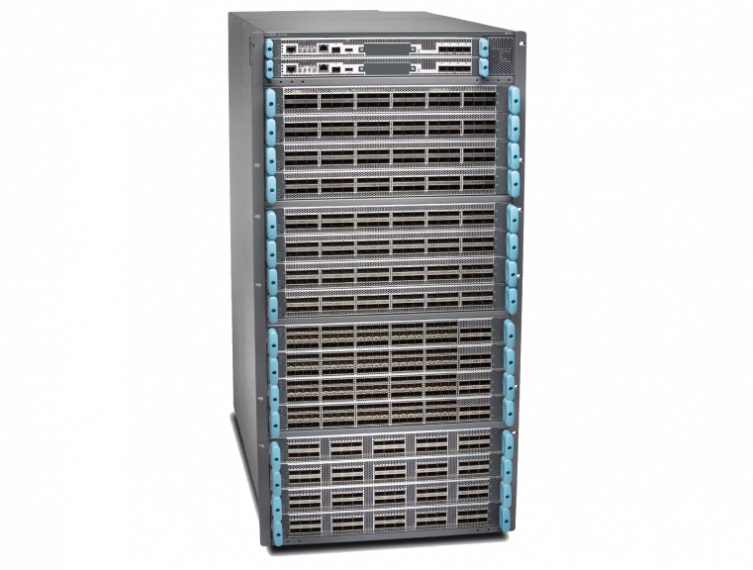

• QFX10016 Ethernet Switch, a 16-slot, 21 U chassis that supports up to 16 line cards
Both QFX10000 modular chassis can accommodate any combination of the following QFX10000 Ethernet line cards:
• QFX10000-36Q, a 36-port 40GbE quad small form-factor pluggable plus transceiver (QSFP+) or 12-port 100GbE QSFP28 line card
• QFX10000-30C, a 30-port 100GbE QSFP28/40GbE QSFP+ line card
• QFX10000-60S-6Q, a 60-port 1GbE/10GbE SFP/SFP+ line card with six-port 40GbE QSFP+ / two-port 100GbE QSFP28
| MFG Number | MFG.PART: QFX10016-BASE |
|---|---|
| Condition | Item Condition : Brand New |
| Price | $92,796.00 |
| Switches Rack Unit | 21U |
| Capacity | 96 Tbps/32Bpps |
| Order Processing Guidelines | Order Processing Guidelines:
Inquiry First – Please reach out to our team to discuss your requirements before placing an order. |
| Special Price | $74,700.78 |
| Special Price From Date | Feb 22, 2024 |
