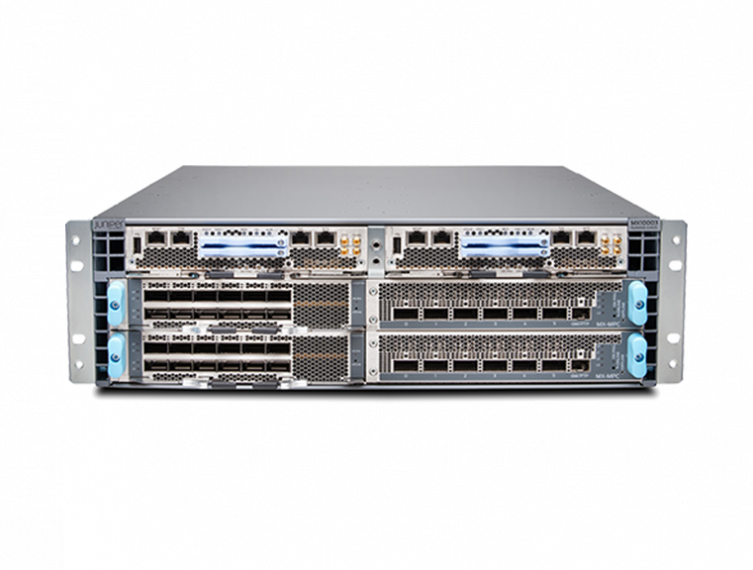

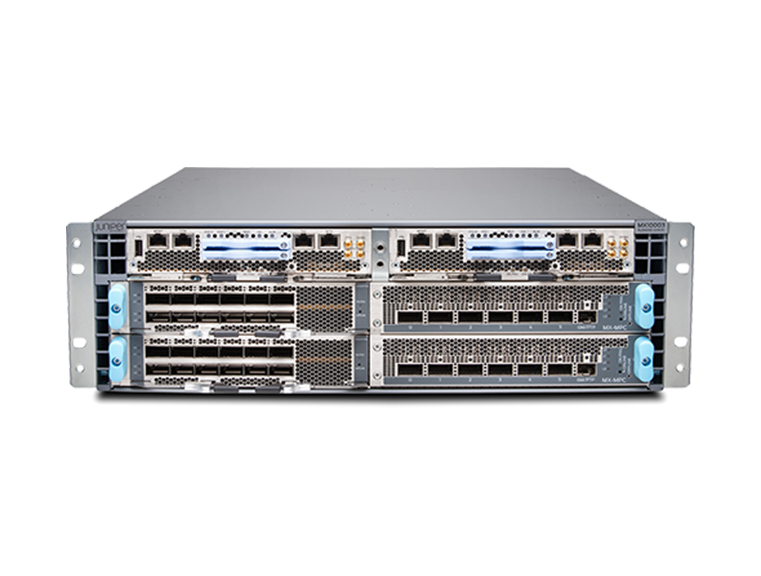

Juniper MX10003 Router
Earn 52,132 points when you buy me!
The service-centric MX10003 Universal Routing Platform helps service providers and cloud operators address long-term traffic, subscriber, and services growth. The space- and power-optimized routing platform offers 2.4 Tbps of system capacity and supports up to 144 10GbE, 36 40GbE, or 24 100GbE interfaces in a single chassis. The MX10003 can be deployed for business VPNs, next-generation broadband multiplay, high-volume Internet, Metro Ethernet services, and data center internetworking.
The MX10003 also delivers the highest levels of network availability with resiliency features that include control plane redundancy and N+1 power supply module redundancy. Virtual Chassis technology supports chassis-level redundancy and allows operators to manage two routers as a single element.
High Scale and Density: MX10003 provides 2.4 Tbps of system capacity and supports up to 144 10GbE, 36 40GbE, or 24 100GbE interfaces per chassis.
Investment Protection:Offers cloud-grade, future-oriented scale for long-term traffic, subscriber, and services growth.
Space and Power Optimized: Control operational costs (OpEx) and meet high energy efficiency standards with a suite of advanced power-saving features in a small form factor.
Carrier Grade Platform: Combines support for the carrier-grade Junos OS with a fully redundant architecture for nonstop service availability under any network conditions.
Routing Engine: Dual redundant Routing Engines (REs) on the MX10003 run the Junos OS, where they manage all routing protocol processes, router interface control, and control plane functions such as chassis component, system management, and user access to the router. These processes run on top of a kernel that interacts with the Packet Forwarding Engine (PFE) on Modular Port Concentrators (MPCs) via dedicated high-bandwidth management channels, providing a clean separation of the control and forwarding planes.
Integrated Timing: MX Series routers support highly scalable and reliable hardware based timing that meets the strictest LTE requirements, including Synchronous Ethernet for frequency and the Precision Time Protocol (PTP) for frequency and phase synchronization. Synchronous Ethernet and PTP can be combined in a “hybrid” mode to achieve the highest level of frequency (10 ppb) and (< 1.5 uS) phase accuracy required for LTE-Advanced, eliminating the need for external clocks. The MX10003 supports advanced timing standards such as G.8275.1.
Rich MultiService Edge Features: IP Transport, Business, Customer Edge, Data Center Gateways, Peering, BNG, L3VPN Services, Meets MEF CE 2.0 certification for E-Line (100GbE), E-LAN (10GbE), E-Tree (10GbE), and E-Access (100GbE) services.
| MFG Number | MFG.PART: MX10003-PREMIUM |
|---|---|
| Condition | Item Condition : Brand New |
| Price | $109,350.00 |
| Order Processing Guidelines | Order Processing Guidelines:
Inquiry First – Please reach out to our team to discuss your requirements before placing an order. |
| Special Price | $52,132.99 |
| Special Price From Date | Jan 8, 2024 |
