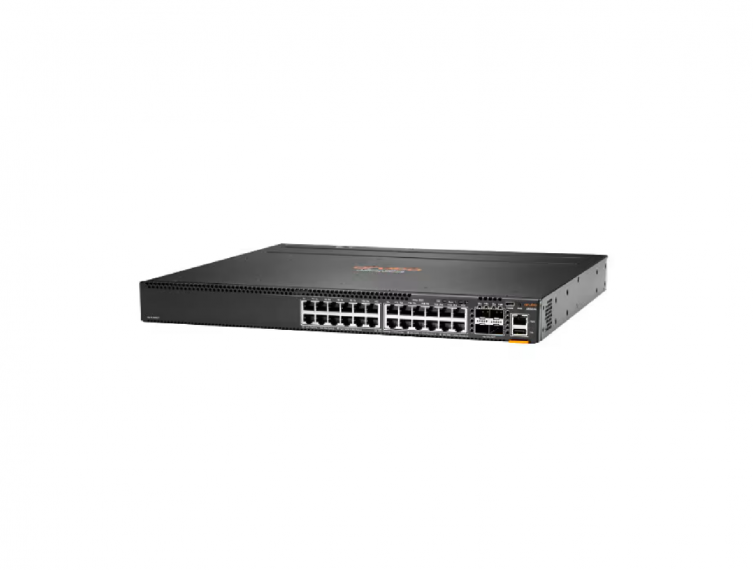

This modern, flexible, and intelligent stackable switch series is ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments.
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

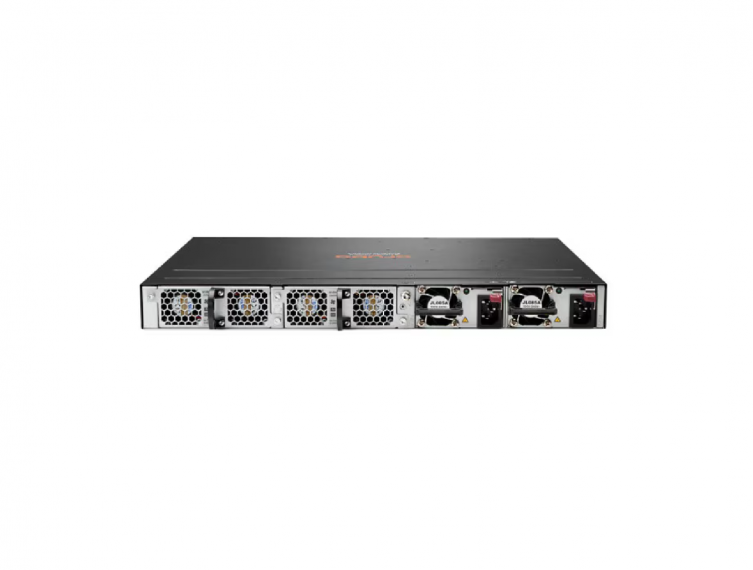

A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1GbE/10GbE/25GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.
Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Prepare your network with a switch that is ready to handle it all.
A powerful, distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. This series has built-in, high-speed uplinks and includes models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network.
Created for game-changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks.
Stackable switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.
High-performance 880 Gbps system switching capacity, 660 MPPS of system throughput, and redundant, hot swappable power supplies and fans.
Convenient built-in wire speed 10/25/50GbE uplinks, high-density SFP+, and choice of HPE Smart Rate multi-gig with 60W PoE on every port.
| System Switching Capacity | 448 Gbps |
| System Throughput Capacity | 334 Mpps |
| Stack size | 10 members |
| Stacking bandwidth | 200 Gbps |
| Switched virtual interfaces (dual stack) | 1,024 |
| IPv4 host table (ARP) | 49,152 |
| Description | 48x ports 10/100/1000 BaseT ports 4x 1G/10G/25G/50G1 SFP ports 1x USB‑C Console Port |
| Power supplies | 2 Field‑replaceable, |
| Dimensions | (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73” x 17.4” x 15.2”) |
| Configuration Weight | 5.43 kg (11.97 lbs) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash | 8 GB DDR4 32 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate ‑1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods1 of time. |
| Operating Relative Humidity | 5% to 95% 104°F (40°C) non‑condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
| Non-Operating Storage relative humidity | 5% to 95% @ 149°F (65°C) non‑condensing |
| Max. Operating Altitude | 10,000 feet (3.04 km) |
| Max Non-operating Altitude | 15,000 feet (4.6 km) |
| Primary airflow | Front and side to back |
| Frequency range | 50-60 Hz |
| 80plus.org certification | - |
| AC Voltage | PSU: 100V‑240V |
| Current | 3A/1.2A |
| Power Output | Idle: 49W 100% Traffic Rate: 64W |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC/EN 61000-3-2 |
| Flicker | IEC/EN 61000-3-3 |
| Mounts in an EIA‑standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2‑post rack kit included. |
|  |
|  |
