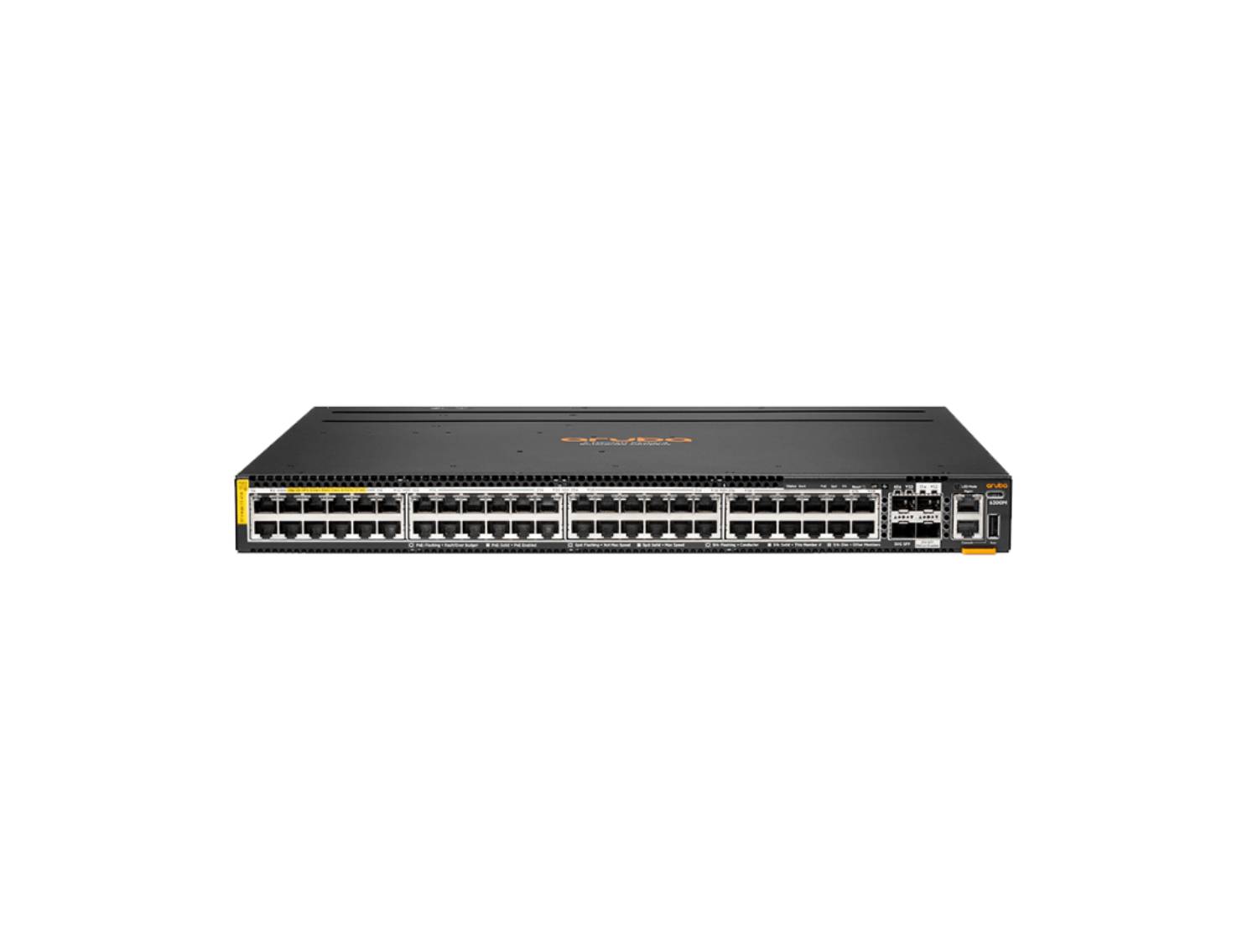

Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A)

Aruba 6300M 48‑Port Smart Rate 1/2.5/5 GbE Class 8 PoE + 2 × 50 Gb + 2 × 25 Gb Uplink Switch (R8S90A)

From

Special Price $15,047.99 Regular Price $21,529.00

Home
Aruba 6300M 48‑Port Smart Rate 1/2.5/5 GbE Class 8 PoE + 2 × 50 Gb + 2 × 25 Gb Uplink Switch (R8S90A)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sale

See all specs

Have questions about this purchase?

Chat with Uvation Assistant

Ask An Expert → +1 833 631 7912 (North America)

R8S90A

Item Condition : Brand New

Earn 15,047 points when you buy me!

Hurry! Other 1 people are watching this product

SKU

HPE-AR-R8S90A

Add a Review

Be the first to review this product

Special Price $15,047.99 Regular Price $21,529.00

In stock

Hurry! Other 1 people are watching this product

High-density, Layer 3 managed Aruba CX 6300M switch featuring 48 Smart Rate multigigabit PoE Class 8 ports (up to 90 W per port) and dual high-speed uplinks (2 × 50 Gb, 2 × 25 Gb), with full MACsec and Aruba AOS‑CX automation.

Details

High Performance and Power

The HPE Aruba Networking CX 6300 Switch Series leverages Gen7 ASICs and a fully distributed architecture for ultra-low latency, increased buffering, and wire-speed performance. VSF stacking enables flexible expansion, while uplinks scale up to 100GbE for high throughput.

Support for Smart Rate PoE (Class 4/6/8) on every port allows deployment of high-density wireless and IoT devices with up to 2880W PoE budget options. CX 6300L models offer cost-effective Layer 2 scalability for high-capacity access layer connectivity.

Automation and Analytics

Built-in analytics and a Time Series Database provide real-time operational visibility, while HPE Aruba Networking Central introduces AI-powered automation for faster problem resolution.

With NAE, Multi-Edit Software, REST API, and Python scripting support, CX 6300 ensures network-wide configuration, validation, and auditing. The mobile app enables one-touch deployments and streamlines stacking and integration.

Unified Management and Smarter Segmentation

Manage at scale with Aruba Networking Central and leverage AI-based visibility and Dynamic Segmentation for policy-based automation. Features like Layer 7 firewall, role-based access control, VXLAN to VRF mapping, and colorless ports simplify IT tasks and enhance user experience.

Supports VXLAN for multi-tenancy and LMA for seamless configuration changes across the wired/wireless infrastructure.

HPE Aruba Networking Data Center Solution

Integrated into HPE Compute, Storage, and Networking environments, the CX 6300 series complements enterprise-grade data center solutions including HPE ProLiant, Nimble, SimpliVity, Synergy, and HPE GreenLake.

Use CX switches in pre-engineered IT stacks with virtualization, SAP HANA, HPC, and more. Accelerate deployment, reduce risk, and simplify operations with tracking SKUs (R9FXXX) for integrated infrastructure rollouts.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Power Consumption

JL086A PSU: Hibernation: 43W, Idle: 104W, 100% Traffic: 173W
JL087A PSU: Hibernation: 41W, Idle: 104W, 100% Traffic: 173W
JL670A PSU: Hibernation: 37W, Idle: 115W, 100% Traffic: 184W

Input Voltage

JL670A PSU: 110V-120V / 208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V

Ports

48-port Smart Rate 100M/1G/2.5G/5G BaseT Class 8 PoE (up to 90W per port)
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACsec)
1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port

Latency

1Gbps: 4.24μSec
10Gbps: 1.50μSec
25Gbps: 2.91μSec
50Gbps: 3.49μSec

Capacity & Performance

Routing/ Switching: 880 Gbps
Switching Capacity: 780 Gbps
Throughput: 580 Mpps
Stacking: Up to 10 switches (CX 6300L with same model only)

Memory and Processor

Quad Core Arm Cortex™ A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC
16 MB Shared Packet Buffer Memory

Power Supply

2 field-replaceable, hot-swappable slots
1 required (ordered separately)
Supported PSUs: JL086A, JL087A, JL670A, JL758A
Max PoE Power: 2880W

Management Features

HPE Aruba Networking Central
HPE Aruba AirWave
HPE Aruba Switch Multi-Edit
CLI, SNMP v2c/v3, RMON

Warranty

Limited lifetime warranty. See documentation for details.

Detailed Product Description

CX 6300M 48p Smart Rate PoE ports (up to 90W)
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACSEC)
Bluetooth dongle for CX Mobile App

Weight & Dimensions

Weight: 6.71 kg (14.8 lbs)
Dimensions: 4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)

Models

HPE Aruba Networking

HPE Aruba Networking

HPE Aruba Networking 8400Xâ€32Y 32p 1/10/25G SFP/SFP+/SFP28 Module (JL687A)

Price

15047.99

Aruba 6300M 48‑Port Smart Rate 1/2.5/5 GbE Class 8 PoE + 2 × 50 Gb + 2 × 25 Gb Uplink Switch (R8S90A)
