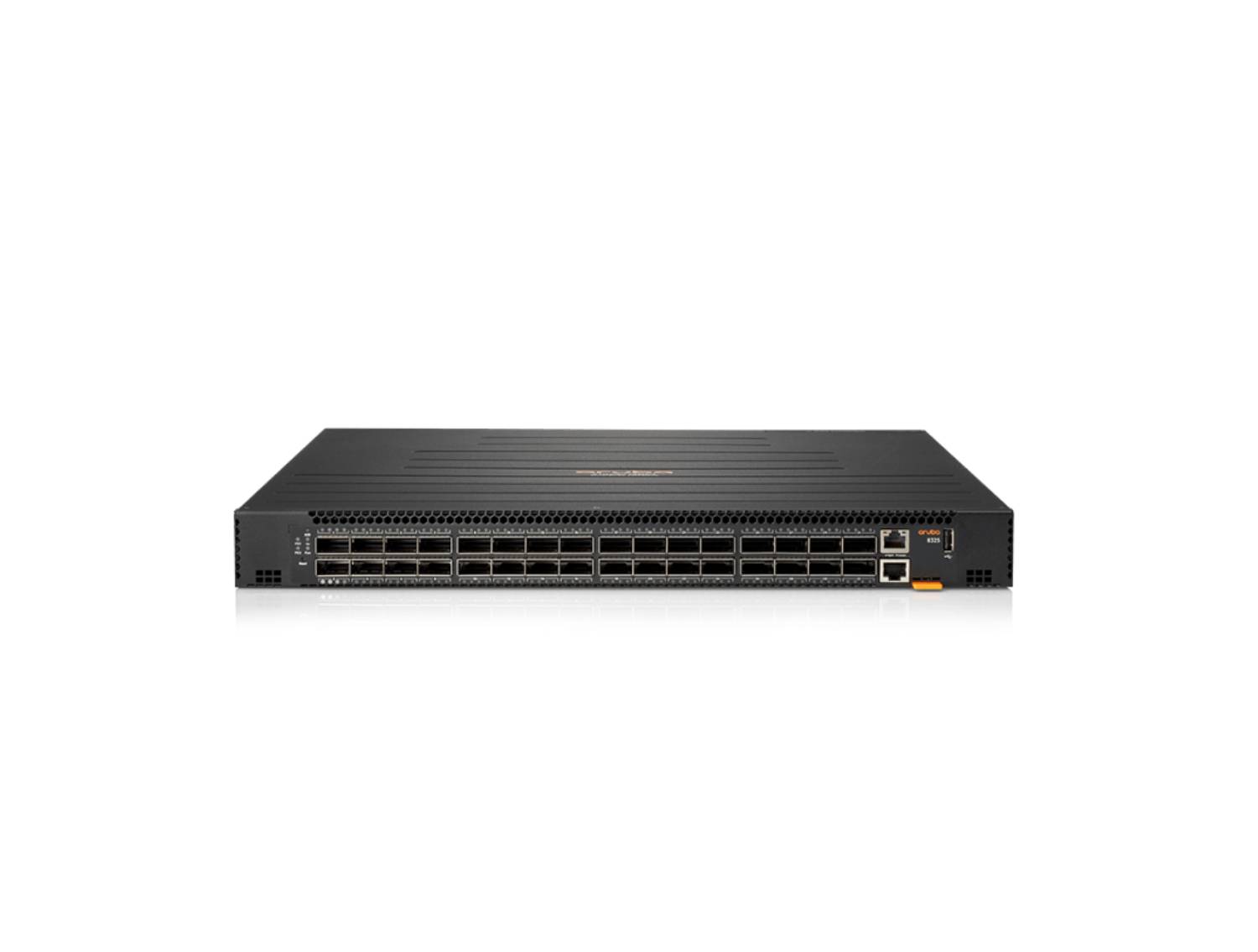

HPE Aruba Networking 8325-32C Front-to-Back Switch Bundle (JL626A)

HPE Aruba Networking 8325-32C Front-to-Back Switch Bundle (JL626A)

From
Special Price $32,635.75 Regular Price $48,785.00
Rewards Banner

HPE Aruba Networking 8325-32C Front-to-Back Switch Bundle (JL626A)

MFG Part : JL626A
Item Condition : Brand New

Earn 32,635 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
HPE-8325-32C-FB-JL626A
Special Price $32,635.75 Regular Price $48,785.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

The HPE Aruba Networking CX 8325 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks. Delivering complete network configuration and assurance, AOS-CX key innovations are its microservices-style modular architecture, REST APIs, Python-scripting capabilities, and the HPE Aruba Networking Network Analytics Engine.

Details



The HPE Aruba Networking CX 8325 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks. Delivering complete network configuration and assurance, AOS-CX key innovations are its microservices-style modular architecture, REST APIs, Python-scripting capabilities, and the HPE Aruba Networking Network Analytics Engine.



The 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/ SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports. Every CX switch includes an active, embedded CX Foundational license at no additional cost with the option to upgrade to a CX Advanced license.



Every HPE Aruba Networking CX switch includes AOS-CX at no cost and with an active, perpetual set of native features which has everything needed to deploy, connect, and troubleshoot an enterprise network, including:
• HPE Aruba Networking Network Analytics Engine (NAE)
• Dynamic Segmentation
• Switch Stacking
• High Availability and Resiliency
• Quality of Service (QoS)
• Layer 2 Switching
• Layer 3 Services and Routing
• IP Multicast
• Network Security
• Support for HPE Aruba Networking Switch

JL626A
JL626A
JL626A

High-speed, fully distributed architecture
Provides over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces, including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.

Future proof your Enterprise network infrastructure
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6. Switching and routing is performed in the I/O modules, meeting the demands of bandwidth-intensive applications today and in the future.

Common operational model
Spanning campus and data center networks with traditional and cloud managed flexibility.

High-performance networking
Compact 1U switch with 1/10/25GbE and 40/100GbE connectivity.

Tech Specs

Tech specs

Technical Specification

System Switching Capacity6.4 Tbps
Power SupplyField-replaceable, hot-swappable, and up to 2 power supplies. Bundles (JL479A, JL579A, JL581A) include
2 power supplies.
Description

1 x JL636A base
8325-32C switch
• 6 x JL630A
Front-to-Back Fan
• 2 x JL632A Front-to-Back
650W 100-240VAC
Power Supply

FansField-replaceable, hot-swappable, and up to 6 fans.
IPv4 host table120,000
IPv6 host table52,000


Physical characteristics

Dimensions(H) 4.395 cm x
(W) 44.25 cm x
(D) 47.3 cm
(1.73” x 17.42” x 18.62”)
Configuration Weight10.87 kg (23.96 lb)

Additional Specifications

CPU2.2GHz
Memory and Flash16 GB RAM, 64 GB SSD, 8 GB flash
Packet Buffer32 MB

Environmental

Operating temperature0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.)
Operating Relative Humidity5% to 95% at 40°C (104°F) non-condensing
Non-Operating-40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.)
Non-Operating Storage relative humidity5% to 95% @ 65°C (149°F)
Max. Operating AltitudeUp to 10,000ft (3.048 km)
Max Non-operating AltitudeUp to 15,000ft (4.6km)
Primary airflowFront-to-back or back-to-front

Electrical Characteristics

Frequency range50-60Hz
Power consumption
(230 VAC)
Max: 618 W, 2110 BTU/hr
Idle: 143 W, 489 BTU/hr
AC Voltage100-240 VAC
Current6.2A (low voltage)–3.1A (high voltage)

Models

HPE Aruba Networking
