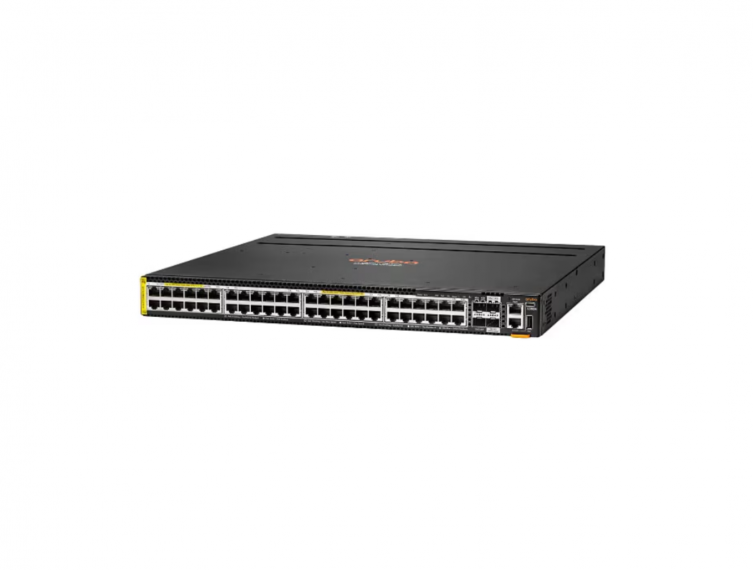

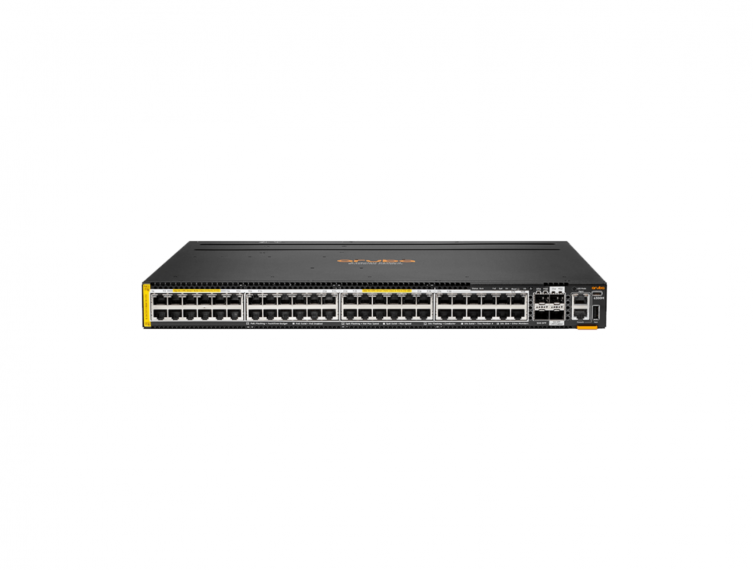

Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)

Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)

From
Special Price $14,114.99 Regular Price $19,949.00
Rewards Banner

Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)

MFG.PART: R8S91A
Item Condition : Brand New

Earn 14,114 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
Aruba 6300M 12p Class 8 PoE 2p 10G Switch (R8S91A)
Special Price $14,114.99 Regular Price $19,949.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

This modern, flexible, and intelligent stackable switch series is ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments.

Details

The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1GbE/10GbE/25GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.



R8S91A
R8S91A
R8S91A

High performance stackable switches

Prepare your network with a switch that is ready to handle it all.

Amazing performance

A powerful, distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. This series has built-in, high-speed uplinks and includes models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network.

Versatile switches ready for cloud, mobile, and IoT

Created for game-changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks.

Layer 3 switching

Stackable switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.

Scalable, always on performance

High-performance 880 Gbps system switching capacity, 660 MPPS of system throughput, and redundant, hot swappable power supplies and fans.

Speed and power for users and IoT

Convenient built-in wire speed 10/25/50GbE uplinks, high-density SFP+, and choice of HPE Smart Rate multi-gig with 60W PoE on every port.

Tech Specs

Tech specs

Performance

System Switching Capacity720Gbps
System Throughput Capacity535 Mpps
Stack size10 members
Stacking bandwidth200 Gbps
Switched virtual interfaces
(dual stack)
1,024
IPv4 host table (ARP)49,152

Technical Specification

Description

48x ports SmartRate 100M2 /1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port on ports 1‑12, and up to 60W per port on ports 13‑48 (MACsec)


2x 10G/25G/50G1 SFP ports
2x 1G/10G SFP ports (LRM + MACsec)


Supports PoE Standards IEEE 802.3af, 802.3at
and 802.3bt (up to 90W)


1x USB‑C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile
App

Power supplies

2 field‑replaceable, hot‑swappable power supply slots

Physical characteristics

Dimensions(H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73”
x 17.4” x 15.2”)
Configuration Weight5.47 kg (12.06 lbs)

Additional Specifications

CPUQuad Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash8 GB DDR4 32 GB eMMC
Packet Buffer16 MB

Environmental

Operating temperature32°F to 113°F (0°C to 45°C) up to 5000 ft derate ‑1°C for every 1000 ft from 5000 ft to 10000 ft
Operating Relative Humidity5% to 95% @ 104°F (40°C) non‑condensing
Non-Operating‑40°F to 158°F (‑40°C to 70°C) up to 15,000 ft
Non-Operating Storage relative humidity5% to 95% @ 149°F (65°C) non‑condensing
Max. Operating Altitude10,000 feet (3.04 km)
Max Non-operating Altitude15,000 feet (4.6 km)
Primary airflowFront and side to back

Electrical Characteristics

Frequency range50-60 Hz
80plus.org certification-
AC Voltage PSU: 100V‑240V

Immunity

RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic fieldIEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3

Mounting and enclosure

Mounts in an EIA‑standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2‑post rack kit included.
