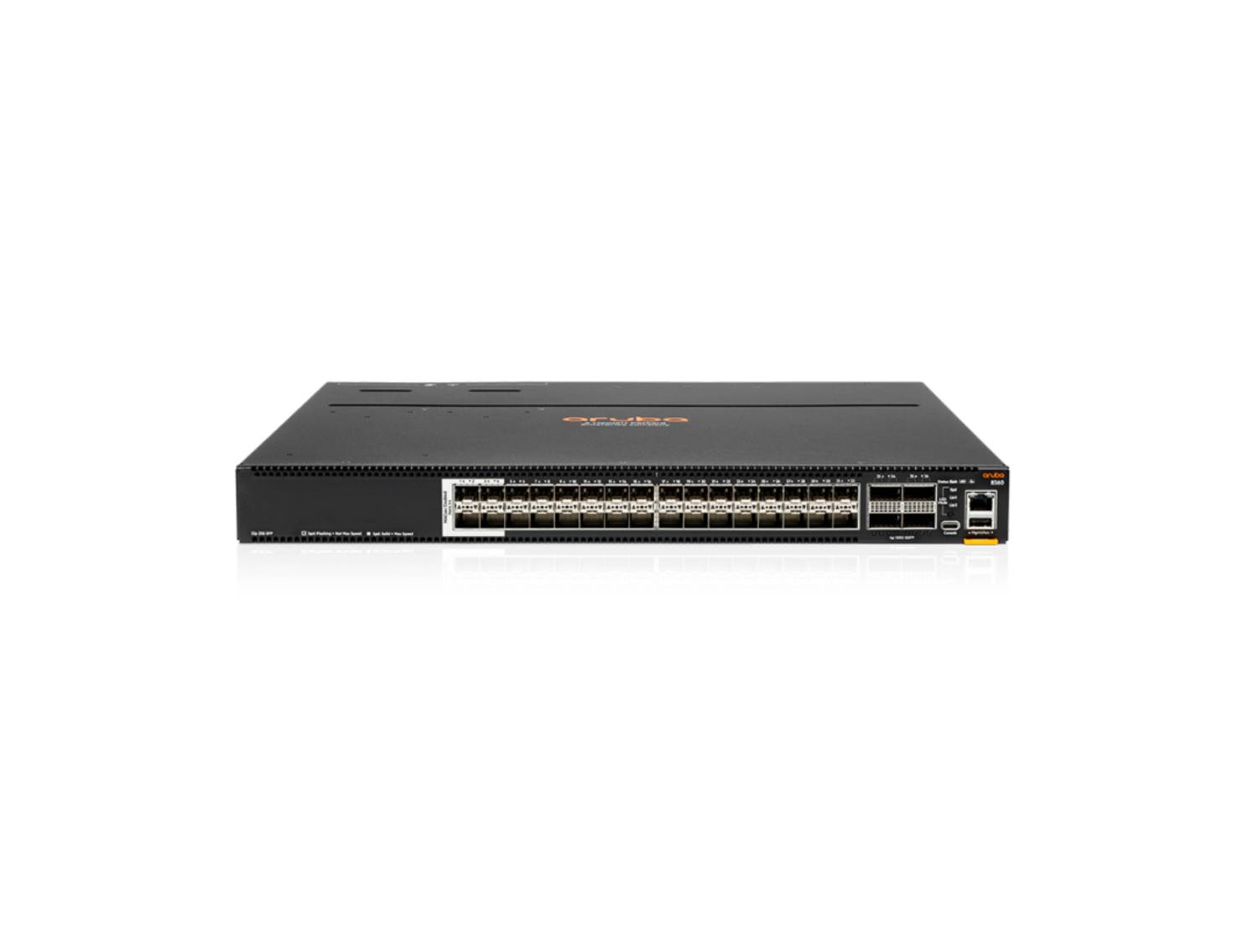

HPE Aruba Networking 8360-32Y4C v2 MACsec Front-to-Back 3 Fans, 2 Power Supplies (JL700C)

HPE Aruba Networking 8360-32Y4C v2 MACsec Front-to-Back 3 Fans, 2 Power Supplies (JL700C)

From
Special Price $20,937.99 Regular Price $29,955.00
Rewards Banner

HPE Aruba Networking 8360-32Y4C v2 MACsec Front-to-Back 3 Fans, 2 Power Supplies (JL700C)

MFG Part : JL700C
Item Condition : Brand New

Earn 20,937 points when you buy me!

Hurry! Other 1 people are watching this product
SKU
HPE-8360-2PS-JL700C
Special Price $20,937.99 Regular Price $29,955.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

Offering a combination of cutting-edge hardware, a cloud-native operating system, and intuitive software-defined orchestration tools, the CX 8360 helps to simplify operations, improve IT efficiency, and enable always-on network availability.

Details

The HPE Aruba Networking CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps
of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50 Gbps, and 100Gbps.



The HPE Aruba Networking CX 8360 switch series is based on HPE Aruba Networking OS-CX, a modern, database driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of HPE Aruba Networking OS-CX provide a unique set of differentiators for campus and data center switching.



Every CX switch includes HPE Aruba Networking OS-CX at no cost and with an active, perpetual set of native features which has everything needed to deploy, connect, and troubleshoot an enterprise network, including:
• HPE Aruba Networking Network Analytics Engine (NAE)
• Dynamic Segmentation
• Switch Stacking
• High Availability and Resiliency
• Quality of Service (QoS)
• Layer 2 Switching
• Layer 3 Services and Routing
• IP Multicast
• Network Security
• Support for HPE Aruba Networking

JL708C
JL708C
JL708C

High performance

Provides up to 2.4Tbps for bidirectional switching and 1,145Mpps for forwarding to meet the demands of bandwidth-intensive applications today and in the future.

Secure communications

MACsec secured connectivity over untrusted domains.

Core Layer Switching options

Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6.

HPE Aruba Networking Virtual Switching Extension (VSX)

Offering high availability, fast wire-speed, a compact 1U switch delivers 1/10/25GbE and 40/100GbE connectivity even during live upgrades.

Tech Specs

Tech specs

Technical Specification

System Switching Capacity2.4Tbps
Power Supply2 field-replaceable and hot-swappable power supplies
I/O ports and slots

Up to 12 ports of 50G 28 ports of 1GbE/10GbE/25GbE (SFP/ SFP+/SFP28) 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)

Fans3 field-replaceable and hot-swappable fans
IPv4 host table145,780
IPv6 host table145,780


Physical characteristics

Dimensions1.73in x 17.4in x 16.0in
44.0mm x 442.5mm x 406.4
Configuration Weight18.05 lb
8.19 kg

Additional Specifications

CPU1.8 GHz 4-core 64-bit
Memory and Flash16GB RAM, 32GB Flash/Storage
Packet Buffer32 MB

Environmental

Operating temperature32°F to 113°F (0°C to 45°C) up to 5000 ft
Operating Relative Humidity15% to 95% relative humidity at 113°F (45°C), noncondensing
Non-Operating-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.)
Non-Operating Storage relative humidity15% to 95% at 149°F (65°C) non-condensing
Max. Operating AltitudeUp to 10,000ft (3.048Km)
Max Non-operating AltitudeUp to 15,000ft (4.6Km)
Primary airflowFront to Back and Back to Front

Electrical Characteristics

Frequency range47-63 Hz
Power consumptionMax: 425W
Idle: 120W
AC Voltage7.1A for 100-127VAC
3.4A for 200-240VAC
