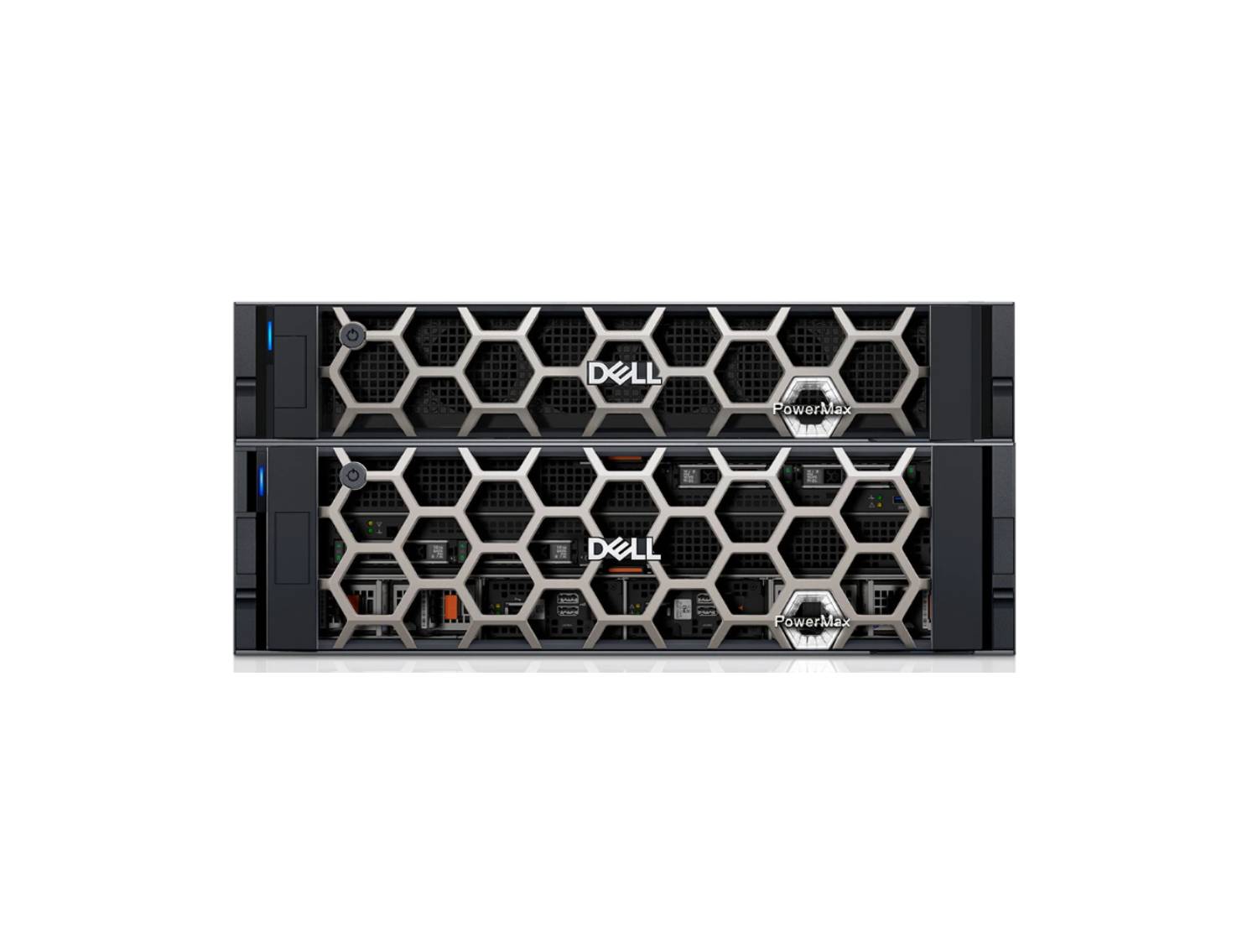

PowerMax 2500

The PowerMax 2500 provides organizations with an attractive entry point into mission-critical storage with up to 7x1 more storage capacity (8PBe) packaged in half the footprint vs. previous models. Combined with the industry’s richest data services, the 2500 offers flexibility and agility to support demanding mixed workloads of block, file, and mainframe storage with the highest levels of availability and cyber resiliency. Both models come with a 5:1 data reduction guarantee for Open Systems and 3:1 for Mainframe.

Based on the powerful Dynamic Fabric architecture and Flexible RAID, PowerMax offers a powerful yet flexible design to independently grow nodes and storage capacity in increments of a single drive. The PowerMax 2500 utilize Intel® Xeon® Scalable processors and today’s most advanced storage technologies including end-to-end NVMe, InfiniBand 100Gb/s, dual-ported NVMe flash drives, NVMe/TCP connectivity, and hardware-based data reduction. Each PowerMax model is designed for 6 nines of availability, ships with new intelligent PDUs that provide real time power consumption monitoring and alerting, and delivers continuously modern storage throughout its product lifecycle with Dell’s Future-Proof program.

Scale up and Scale out
PowerMax is built from modular storage components for compute and storage media. The compute modules are packaged as node pairs. Each node pair contains two PowerMax compute nodes, complete software and licensing, cache memory, redundant power, and connectivity modules. These are combined with 48-slot Dynamic Media Enclosures (DMEs) to configure NVMe flash drives. PowerMax arrays are delivered with the Inclusive Software package. NVMe drive capacity can be added to the system to scale up to a total effective capacity of 8 PBe on the PowerMax 2500.
