ECS, the leading object storage platform from Dell EMC, boasts unmatched scalability, performance, resilience, and economics. Deployable as a turnkey appliance or in a software-defined model, ECS delivers rich S3-compatibility on a globally distributed architecture, empowering organizations to support enterprise workloads such as cloud-native, archive, IoT, AI, and big data analytics applications at scale.
With ECS, any organization can deliver scalable public cloud services with the reliability and control of a private-cloud infrastructure. ECS provides comprehensive protocol support for unstructured—object and file—workloads on a single modern storage platform. Using ECS, organizations can easily manage globally distributed storage infrastructure under a single global namespace with anywhere access to content. ECS features a flexible software-defined architecture that is layered to promote limitless scalability. Each layer is completely abstracted and independently scalable with high availability and no single points of failure. ECS also comes in a fullyintegrated turnkey appliance that bundles software and Dell PowerEdge servers into an easily deployed object system.
ECS is currently in its third generation of hardware appliances, the EX-Series, building on the legacy of the EMC Centera and Atmos object storage platforms which predated ECS. The ECS EX-Series is comprised of four unique hardware products: the EX300, EX500, EX3000 and the all-flash EXF900.

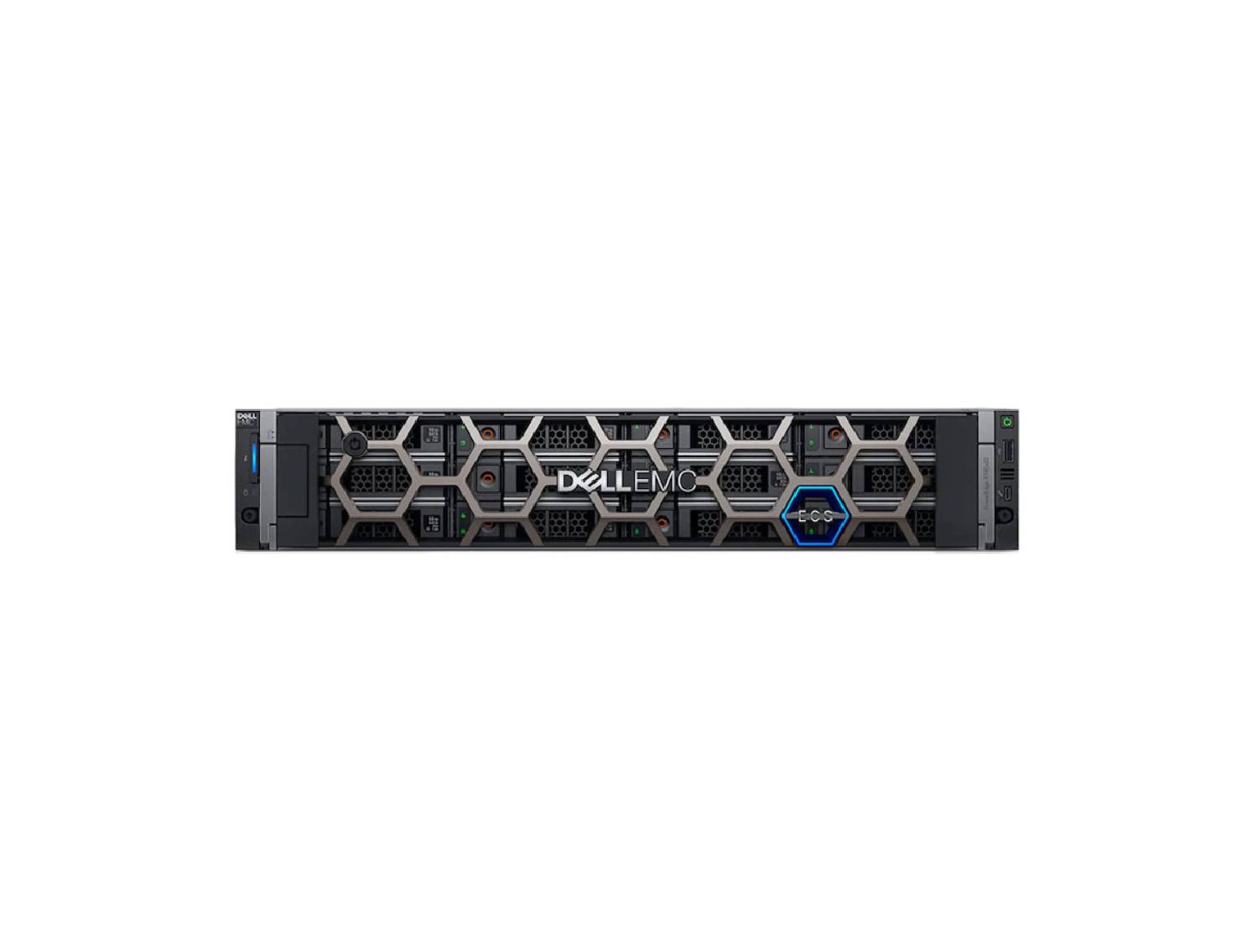

Built with NVMe-based SSDs on Dell PowerEdge servers, the EXF900 appliance delivers extreme performance at scale for modern workloads such as AI, machine learning, IoT and real-time analytics applications.
The new all-flash ECS appliance, the EXF900, delivers extreme performance at scale
-Scale-out nodes.
-High performance NVMe SSDs with dual 24-core processors.
-Identical performance characteristics with every node.
-Powers AI, machine learning, IoT and real-time analytics apps.
| Node architecture | Intel x86 servers Integrated storage 12 or 24 disk drives per node |
| Network connectivity | 25GbE FrontEnd 25GbE BackEnd |
| 40U rack configurations | 1, through 16 node configurations (5 node minimum initial rack) HA power |
| Multiple storage configurations | Unstructured storage up to 5898TB per rack |
| Architecture | Standard 40U cabinet 2U node containing server and disks Fully accessible – field serviceable Conventional front to back cooling HA power cablingand cooling |
| Min / max cluster size | Single: 5 node minimum Maximum:112 nodes |
| Min / max rack configuration | Min: 1 node = 1 server with included disks Max: 16 nodes = 16 servers with included disks |
| Disk type (7200rpm, SATA) | 3.84TB, 7.68TB, 15.36TB (RI NVMe U.2 SSD) |
| Optional cache SSD | Optional SSD (960GB) drive for improved metadata read/write cache performance |
| Raw capacity (per node) | 46TB, 92TB, 184TB, 368TB |
| Max raw capacity (per rack) | Up to 5898TB |
| Node dimensions | 2U x D (715.5 mm) Weight: 48lbs (with 12 drives) 52.5lbs (with 24 drives) |
| Rack dimensions | H(75”) x W(24“) x D(47“) + 4” for front door H(1905mm) x W(610mm) x D(1194mm) Weight: 887kg/1955lb with 4 switches, 16 2U chassis |
| Power specifications (server) | 2X1100W power supplies per node (HA) 2X1600W power supplies per node |
| Environmental specifications | Operating temperature (°F/°C): 41 - 90/ 5 - 32 Max. altitude: 7,500 ft/ 2,286 m @ 90°F/32°C Relative humidity: 20 - 80% non-condensing Raised floor: not required |
| Upgrade options | Scale out by additional nodes 12 drive capacity upgrade kit |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
