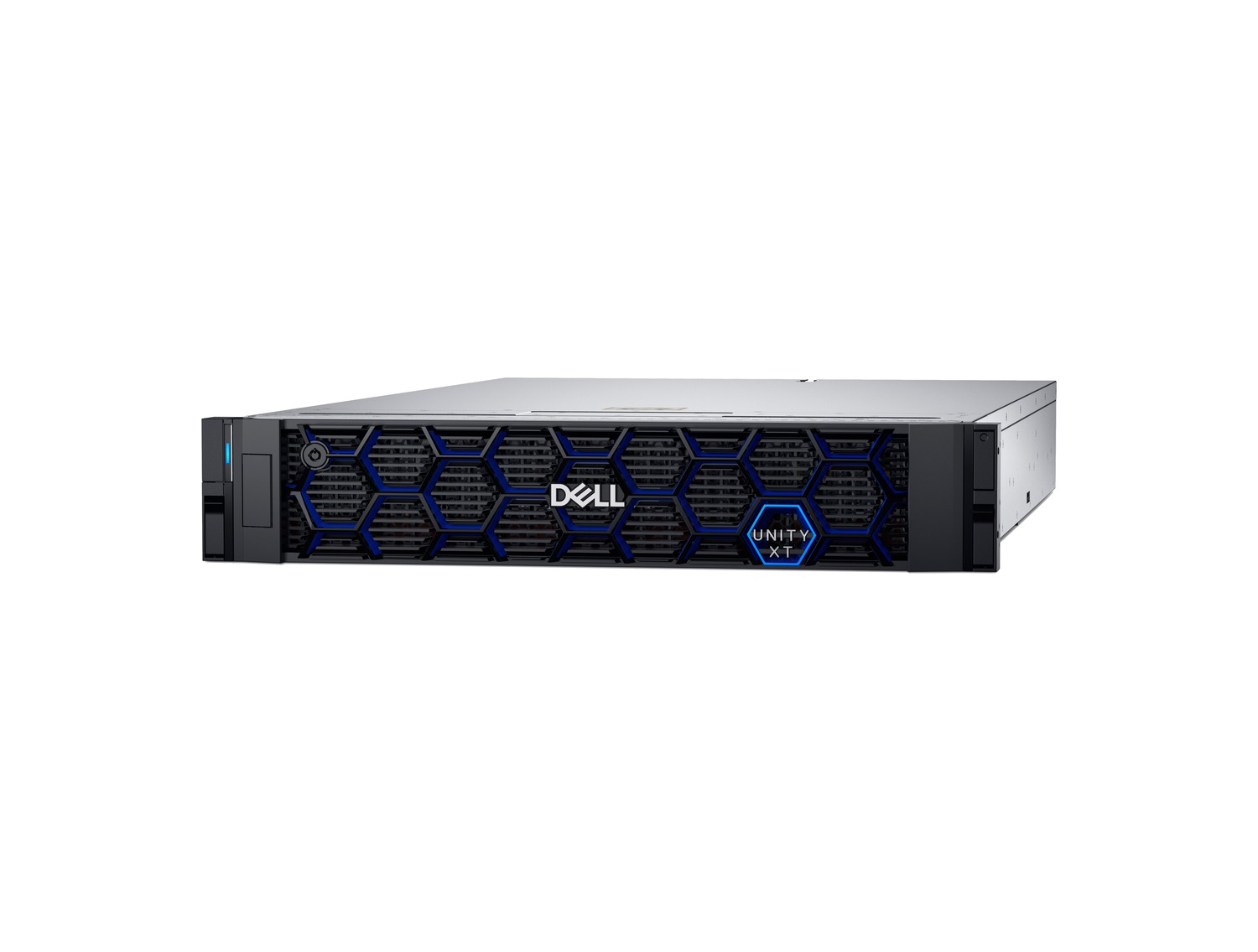

Ensure high performance and low latency for the broadest range of mixed workloads with Dell EMC Unity XT 680F all-flash. This unified storage platform is NVMe-ready and can deliver high-speed access to business data with the ability to simultaneously run mixed application workloads, process inline data reduction, and provide data services with no performance overhead.
With up to 5:1 data reduction, Dell EMC Unity XT 680F will reduce storage footprint and lower TCO. Plus, you will be able to enable your multi-cloud strategy whether you are looking for disaster recovery as a service in the cloud, integration with VMware Cloud Foundation, deploying storage in the cloud, or automatically tiering data to the cloud.
Dell EMC Unity XT 680F comes standard with support for file and block, point-in-time snapshots, local and remote data replication, built-in encryption, and deep integrations with VMware, Microsoft, and OpenStack.
This unified storage comes standard with support for file and block, point-in-time snapshots, local and remote data replication, built-in encryption, and deep integration with VMware, Microsoft, and OpenStack.
Gain intelligent insight into your storage health with CloudIQ, which provides cloud-based proactive monitoring and predictive analytics. Additionally, ongoing operation is simple with proactive assistance and automated remote support.
Maximum Cable Lengths
Shortwave optical OM4: 125 meters (16 Gb) 190 meters (8 Gb), 400 meters (4 Gb), and 500 meters (2 Gb) Each storage processor connects to one side of each of two redundant pairs of four-lane x 12 Gb/s Serial Attached SCSI (SAS) buses, providing continuous drive access to hosts in the event of a storage processor or bus fault
-Unified management of block, file and VMware vVol storage objects.
-Guaranteed 3:1 data reduction delivering more usable capacity.
-Provides up to 8.0 PB max raw capacity and uses Dynamic Pools for faster data recovery and simpler capacity expansion.
-Protect your investment with data-in-place controller upgrades to cost effectively increase performance, capacity, and system limits.
| Min/Max Drive Count | Min. 6 SSDs or 10 HDDs / Max. 1000 |
| Array Enclosure | A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives |
| CPU per Array | 2 x dual-socket Intel CPUs, 48 cores per Array, 2.1GHz |
| System Memory/Cache per Array | 384 GB |
| Max FAST Cache per Array* | Up to 3.2 TBs |
| Total CacheA | Up to 3.58 TBs |
| Max IO Modules per ArrayC | 4 |
| Embedded SAS IO Ports per Array | 4 x 4 lane 12Gb/s SAS ports for BE Connection |
| Base 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane |
| Max 12 Gb/s SAS BE Buses per Array | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane |
| Max FE (front end) Total Ports per Array (all types) | 24 |
| Max Initiators per Array | 2,048 |
| Max FC Ports per Array | 16 |
| Embedded CNA ports per Array | NA |
| 1 Gbase-T/iSCSI Max Total Ports per Array | 24 |
| 10/25 GbE/iSCSI Max Total Ports per Array | 24 |
| Max Raw CapacityE | 8.0 PBs |
| Max SAN Hosts | 1024 |
| Max Number of Pools | 40 |
| Max Number of LUNs per Array | 2000 |
| Max File Systems per Array | 2000 |
| Max File System Size | 256 TB |
| IOPSF (All Flash Models 380F – 880F) | up to 2.36M |
| AC Line Current (operating maximum) | 11.72 A max at 100 VAC; 5.86 A max at 200VAC |
| Power Consumption (operating maximum) | 1172 VA (1161 W) max at 100 VAC; 1172 VA (1161 W) max at 200 VAC |
| Heat Dissipation (operating maximum) | 4.18 x 106 J/hr, (3,960 Btu/hr) max at 100 VAC; 4.18 x 106 J/hr, (3,960 Btu/hr) max 200VAC |
| AC Inlet Type (Low Line) | IEC320-C20 appliance coupler, per power zone |
| Weight kgs/lbs | empty 25.90/57.10 |
| Vertical size | 2 NEMA units |
| Height cm/inches | 8.72/3.43 |
| Width cm/inches | 444.72/17.61 |
| Depth cm/inches | 79.55/31.32 |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
