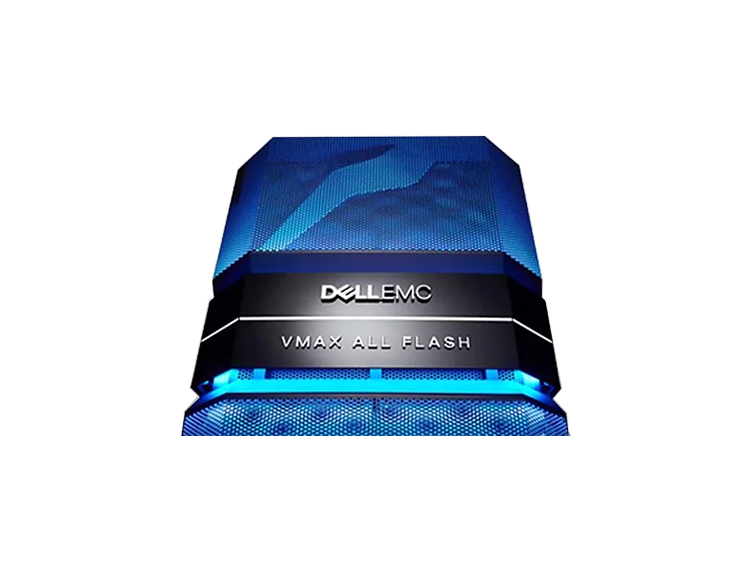

Dell EMC VMAX 950F

Dell EMC VMAX 950F

Dell EMC VMAX 950F

Hurry! Other 2 people are watching this product
SKU
Dell EMC VMAX 950F
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 2 people are watching this product

With performance of up to 6.7 million IOPS, the VMAX 950F is ideal for the modern data center with mission-critical availability, rich data services, and consolidation of mixed workloads.

  • Designed for leading performance up to 6.7 million IOPS, 150 GB/s bandwidth
  • Scales up to 4 PB effective flash capacity
  • Scales out to 8 V-Bricks
  • High performance to support massive workload consolidation
Details

Features

When your enterprise applications demand the performance of flash storage along with massive scalability, mission-critical reliability, and advanced data services, select Dell EMC VMAX 950F. Predictably meet SLAs for essential enterprise storage, consolidation at scale, and mix open and mainframe workloads.

IOPS and capacity scale linearly as you expand. The scale-out building block of the Dell EMC VMAX 950F storage array is the V-Brick, which includes a VMAX engine and base storage capacity. Flash Capacity Packs let you scale up in 13 TB increments.

Getting the trusted data services you need is simple with included software and the optional FX software package.

Mission-Critical Storage at Scale

All flash arrays are accelerating the pace of business transformation as IT professionals search for the most relevant technologies to modernize their operation and drive down operational and capital expenditures. As flash prices rapidly decline, capacity points exceed spinning disk, and data reduction techniques advance, more organizations are evaluating, testing, and deploying all-flash solutions to tackle the most demanding mixed workloads that span across the modern datacenter.

Dell EMC VMAX All Flash arrays are architected to solve the CIO challenge of embracing a modernized flash-centric datacenter for mission- critical applications while simultaneously simplifying, automating, and consolidating IT operations. VMAX All Flash is engineered for the latest, high density flash technology and to specifically exploit the rich set of data services of VMAX All Flash. These data services address the new requirements of the modern datacenter while continuing to deliver the reliability and mission-critical availability Dell EMC customers have relied on for years.

Tech Specs

Tech specs

V-BRICKS

Number of V-Bricks1 to 8
CPUIntel Xeon E5-2697-v4, 42.8 GHz 18 core
DYNAMIC VIRTUAL MATRIX INTERCONNECTInfiniBand Dual Redundant Fabric:, 56 Gbps per port

CACHE

CACHE-SYSTEM MIN (RAW)1,024 GB
CACHE-SYSTEM MAX (RAW)16 TB (with 2,048 GB engine)
CACHE-PER ENGINE OPTIONS1 TB, 2 TB

CAPACITY, DRIVES

Max Capacity per Array (Open)4.42 PBe
Base Capacity per V-Brick (Open)52.6 TBu
Max Drives per System Bay480
Min Drive Count per V-Brick16 + 1 spare

FLASH DRIVES

Flash Drives Supported (2.5”)960 GB, 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
BE Interface6 Gbps SAS

I/O PROTOCOLS SUPPORTED

Maximum/V-Brick24
Maximum/array192

Maximum IOPS

6.7 million

Response Time (Mixed Workloads)

350 microseconds

Typical Effective Max Capacity with Data Reduction

4 PBe

Base TB per V-Brick

53 TB (open systems) 13 TB (mainframe)

Maximum Front-End Host Ports

192 (open systems) 256 (mainframe)

Use Case

Enterprise storage, consolidation at scale, mixed open and mainframe workloads

Storage Type

Block, file, open systems, IBM i, and mainframe
Models
