Fortinet FortiGate FG-7081F-DC – High-Performance Chassis Firewall with DC Power Supply

Fortinet FortiGate FG-7081F-DC – High-Performance Chassis Firewall with DC Power Supply

From
Special Price $229,500.00 Regular Price $255,000.00

Fortinet FortiGate FG-7081F-DC – High-Performance Chassis Firewall with DC Power Supply

FG-7081F-DC
Item Condition : Brand New
Hurry! Other 2 people are watching this product
SKU
FOR-FG-7081F-DC
Special Price $229,500.00 Regular Price $255,000.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 2 people are watching this product

FortiGate FG-7081F-DC is a DC-powered, high-capacity chassis firewall offering ultra-fast threat protection and scalability for critical enterprise and telco networks.

Details

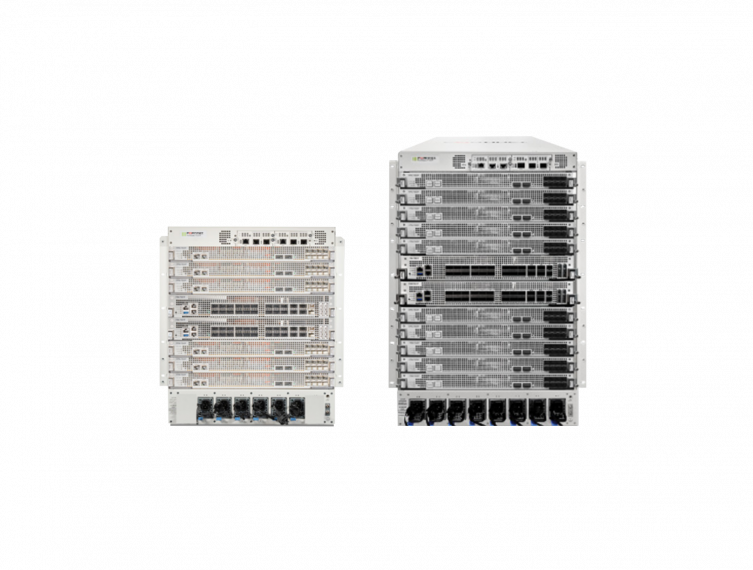

FortiGate 7081F Front View

High-Performance Security for the Modern Enterprise

The FortiGate 7081F delivers ultra-fast threat protection and scalability to safeguard large enterprise and service provider networks.

FortiGate 7081F High Throughput

Exceptional Throughput and Real-Time Protection

With up to 1.2 Tbps firewall throughput and 312 Gbps threat protection throughput, FortiGate 7081F secures high-volume traffic with no performance trade-offs, powered by FortiASIC processors.

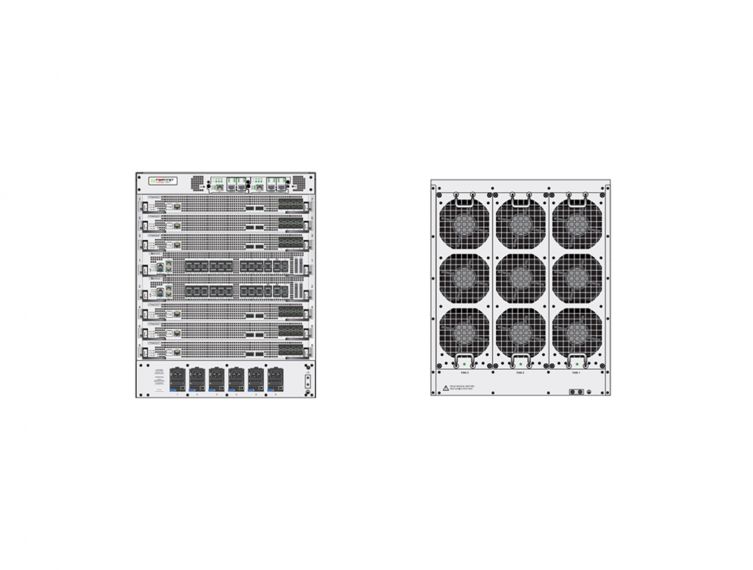

FortiGate 7081F Network Security Appliance

Flexible, Scalable, and Data Center-Ready

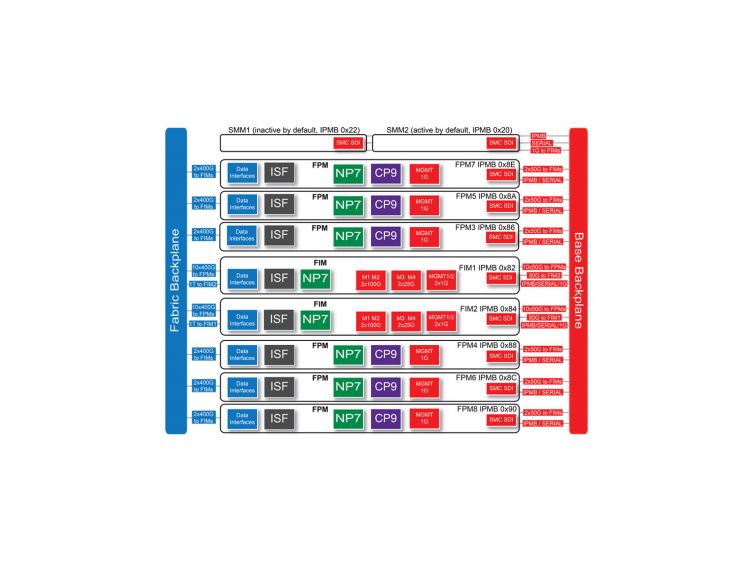

The chassis-based design with 8 slots and a 1 Tbps fabric backplane ensures future-ready scalability. Compatible with multiple Ethernet and fiber interfaces for seamless integration across enterprise networks.

Comprehensive Threat Protection

Combining firewall, VPN, IPS, application control, and web filtering, the FortiGate 7081F protects against malware, ransomware, and zero-day attacks—ideal for mission-critical data center environments.

FortiOS Management Console

Centralized Management and Monitoring

Powered by FortiOS and managed through FortiManager, it offers a unified management experience for configuring, monitoring, and securing your entire infrastructure from a single console.

Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Interfaces and Modules

  • 400 GE QSFP-DD / 100 GE QSFP28 / 40 GE QSFP+ Slots: 16 (HW Accelerated)
  • 100 GE QSFP28 / 40 GE QSFP+ Slots: 36 (HW Accelerated)
  • 100 GE QSFP28 / 40 GE QSFP+: 48 (HW Accelerated)
  • 25 GE SFP28 / 10 GE SFP+ Slots: 80 (HW Accelerated)
  • 25 GE SFP28 / 10 GE SFP+ Management/HA Slots: 4
  • Management/HA Slots: 4
  • USB Ports: 2
  • Console Ports: 8

System Performance – Enterprise Traffic Mix

  • IPS Throughput: 405 Gbps
  • NGFW Throughput: 330 Gbps
  • Threat Protection Throughput: 312 Gbps

Performance and Capacity

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte): 1.89 / 1.88 / 1.129 Tbps
  • IPv6 Firewall Throughput (1518 / 512 / 86 byte): 1.89 / 1.88 / 1.129 Tbps
  • Firewall Latency (64 byte): 7.50 μs
  • Packets per Second: 1680 Mpps
  • Concurrent Sessions (TCP): 600 Million
  • New Sessions per Second (TCP): 5.4 Million
  • Firewall Policies: 200,000
  • IPsec VPN Throughput: 378 Gbps
  • Gateway-to-Gateway VPN Tunnels: 40,000
  • Client-to-Gateway VPN Tunnels: 260,000

SSL & Application Performance

  • SSL-VPN Throughput: 13.5 Gbps
  • Concurrent SSL-VPN Users (Tunnel Mode): 30,000
  • SSL Inspection Throughput: 324 Gbps
  • SSL CPS (IPS, avg. HTTPS): 288,000
  • SSL Concurrent Sessions (IPS, avg. HTTPS): 60 Million
  • Application Control Throughput: 900 Gbps

Virtualization & Licensing

  • Virtual Domains (Default / Max): 10 / 500
  • Maximum FortiTokens: 12,000

Dimensions and Weight

  • Dimensions (inches): 21.41 x 17.33 x 26.6
  • Dimensions (mm): 543.9 x 440 x 675.5
  • Weight: 165.68 kg / 365.26 lbs

Power & Cooling

  • Power Consumption (Avg / Max): 6100 W / 7300 W
  • DC Power Supply: -48V to -60V DC
  • DC Current (Average/Maximum): 127A@48V / 152A@48V
  • Heat Dissipation: 24,900 BTU/h

Operating Environment

  • Operating Temperature: 32–104°F (0–40°C)
  • Storage Temperature: -31–158°F (-35–70°C)
  • Humidity: 5% to 90% non-condensing
