Fortinet FortiGate 6301F – Next‑Gen Chassis Firewall with Dual NVMe

Fortinet FortiGate 6301F – Next‑Gen Chassis Firewall with Dual NVMe

From
Special Price $183,892.50 Regular Price $204,325.00

Fortinet FortiGate 6301F – Next‑Gen Chassis Firewall with Dual NVMe

FG-6301F
Item Condition : Brand New
Hurry! Other 2 people are watching this product
SKU
FOR-FTG-6301F
Special Price $183,892.50 Regular Price $204,325.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 2 people are watching this product

The FortiGate 6301F is a high-performance chassis-based next-generation firewall offering modular scalability, dual 1 TB NVMe storage, and advanced threat protection for enterprise and telecom environments

Details

Features

FortiGate: Next-Generation Firewall Overview

FortiGate next-generation firewalls (NGFWs) utilize purpose-built security processors and threat intelligence security services from AI-powered FortiGuard labs to deliver top-rated protection, high performance inspection of clear-texted and encrypted traffic. Next-generation firewalls reduce cost and complexity with full visibility into applications, users and networks and provides best of breed security. As an integral part of the Fortinet Security Fabric next-generation firewalls can communicate within Fortinet’s comprehensive security portfolio as well as third-party security solutions in a multivendor environment to share threat intelligence and improve security posture.

As enterprises consider how to provide comprehensive visibility and advanced layer 7 security, including threat protection, intrusion prevention, web filtering and application control, they face a major complexity hurdle managing these point products with no integration and lack of visibility. Gartner estimates that by 2019 80% of enterprise traffic will be encrypted and 50% of attacks targeting enterprise will be hidden in encrypted traffic to infiltrate networks or exfiltrate data, therefore employing HTTPS inspection is a requisite.

FortiGate: Next-Generation Firewall Product Details

FortiGate next-generation firewalls offer flexible deployments from the network edge to the core, data center, internal segment, and the Cloud. FortiGate enterprise firewalls leverages purpose-built security processors (SPUs) that delivers scalable performance of advanced security services like Threat Protection, SSL inspection, and ultra-low latency for protecting internal segments and mission critical environments.

FortiGate NGFW provides automated visibility into cloud applications, IoT devices and automatically discovers end to end topology view of the enterprise network.

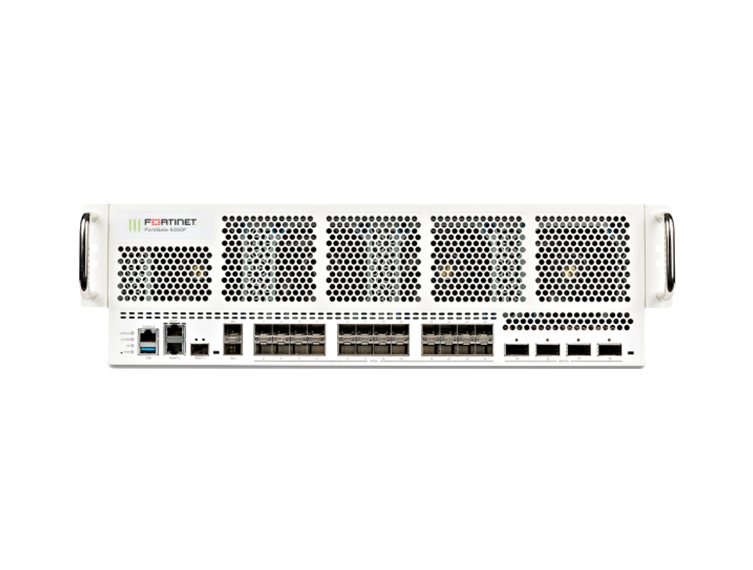

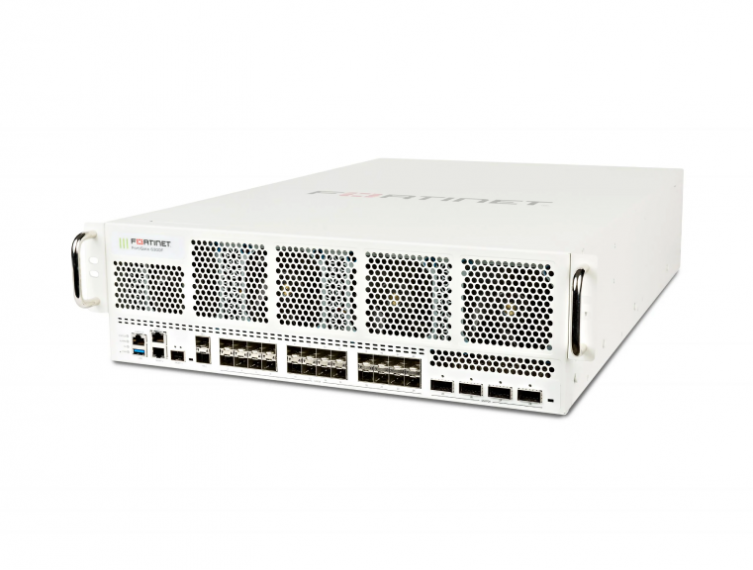

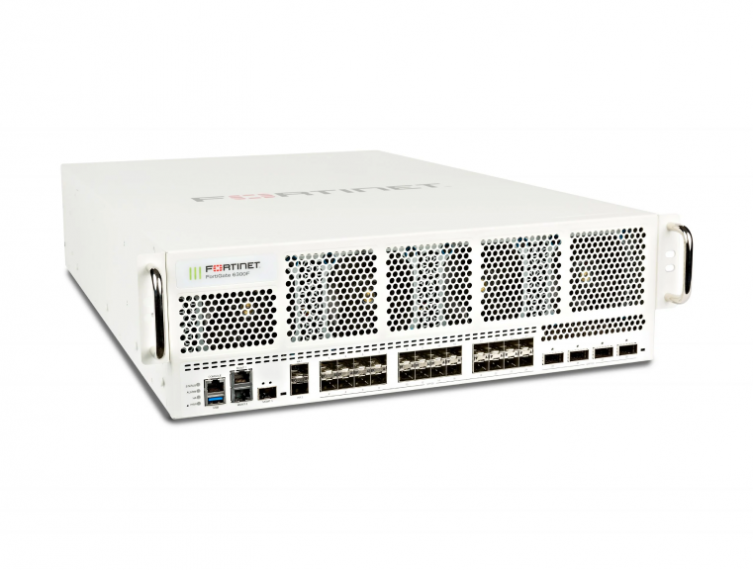

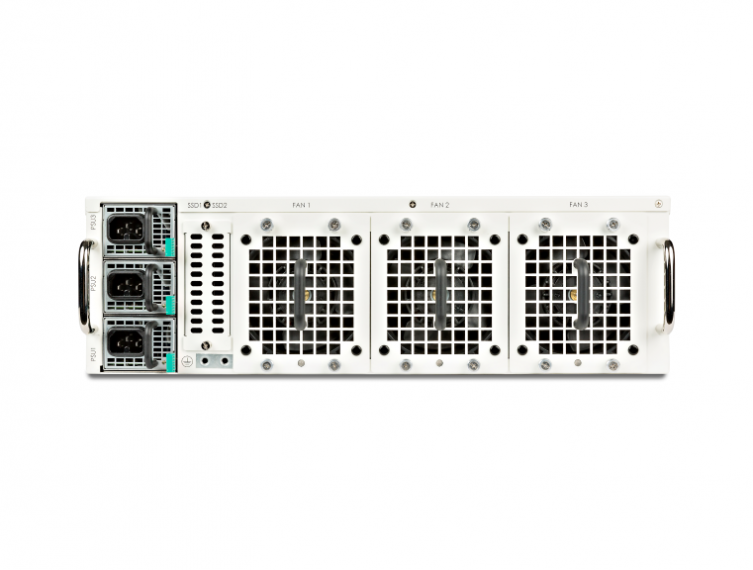

FortiGate 6300F
FortiGate 6300F
FortiGate 6300F

Features and Benefits

High-performance threat protection

Industry's highest threat protection and SSL inspection performance to protect from malware attacks hiding in encrypted traffic

Validated security effectiveness

Independently certified and continuous threat intelligence updates provide robust protection from known and unknown attacks

Protect mission critical applications

Highly scalable segmentation and ultra-low latency to protect network segments

Continuous risk assessment via automation

Leverage automated workflow and auditing features to deal with scarce security staff and continuously maintain compliance posture

Security Fabric integration

Intelligently share threats across the entire digital attack surface to provide quick and automated protection

Enterprise class security management

Deliver consistent security policy -- Single pane-of-glass to manage security assets irrespective of location and form factor

Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Product Number

  • FG‑6301F

Interfaces and Modules

  • 4× 40/100 GE QSFP28 (HW Accelerated)
  • 24× 1/10/25 GE SFP28 (HW Accelerated)
  • 3× 10 GE SFP+ (HW Accelerated)
  • 2× GE RJ45 Management Ports
  • 1× USB Port
  • 1× Console Port
  • Included Transceivers: 2× 10 GE SFP+ SR
  • Internal Storage: 2 TB NVMe

System Performance – Enterprise Traffic Mix

  • IPS Throughput: 110 Gbps
  • NGFW Throughput: 90 Gbps
  • Threat Protection Throughput: 60 Gbps

System Performance & Capacity

  • IPv4 Firewall Throughput: 239 / 238 / 135 Gbps
  • IPv6 Firewall Throughput: 239 / 238 / 135 Gbps
  • Firewall Latency (64 byte, UDP): 4.80 μs
  • Firewall Throughput: 202.5 Mpps
  • Concurrent Sessions (TCP): 120 Million
  • New Sessions/sec (TCP): 2 Million
  • Firewall Policies: 200,000
  • IPsec VPN Throughput: 96 Gbps
  • Gateway-to-Gateway VPN Tunnels: 16,000
  • Client-to-Gateway VPN Tunnels: 90,000
  • SSL-VPN Throughput: 9 Gbps
  • Concurrent SSL-VPN Users: 30,000
  • SSL Inspection Throughput: 66 Gbps
  • SSL Inspection CPS: 30,000
  • SSL Inspection Concurrent Sessions: 10 Million
  • Application Control Throughput: 150 Gbps
  • CAPWAP Throughput: N/A

Virtualization

  • Virtual Domains (Default / Max): 10 / 500
  • Max FortiSwitches Supported: 256
  • Max FortiTokens: 20,000
  • High Availability: Active‑Active (FGSP), Active‑Passive, Clustering

Form Factor & Dimensions

  • Rack Mount, 3 RU
  • Size (inches): 5.20 × 17.20 × 26.18
  • Size (mm): 132 × 437 × 665
  • Weight: 69.00 lbs (31.3 kg)

Power & Cooling

  • AC Power Supply: 100–240 V AC, 50–60 Hz
  • AC Current (Max): 30 A @100 VAC, 20 A @240 VAC
  • Power Consumption (Avg / Max): 977 / 1,237 W
  • Heat Dissipation:4,221 BTU/h
  • Power Supply Efficiency: 80Plus Compliant
  • Redundant PSUs: 2+1 or 1+1, Hot Swappable
  • Fan Trays: Hot Swappable

Environment & Certifications

  • Operating Temp: 32–104 °F (0–40 °C)
  • Storage Temp: -31–158 °F (-35–70 °C)
  • Humidity: 10–90% non‑condensing
  • Noise Level: 57.43 dBA
  • Airflow: Front to Back
  • Operating Altitude: Up to 10,000 ft (3,048 m)
  • Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
  • Certifications: USGv6 / IPv6
