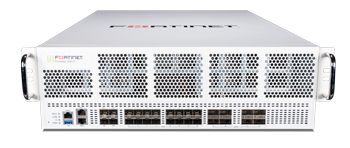

Fortinet FortiGate 4200F | Hyperscale Next-Gen Firewall

Details

Advanced Security with High Performance

FortiGate next-generation firewalls (NGFWs) combine AI-powered threat intelligence and purpose-built security processors to deliver top-rated protection and high-performance inspection, even of encrypted traffic.

Integrated Threat Intelligence

FortiGuard Labs delivers continuously updated threat intelligence, ensuring FortiGate NGFWs stay ahead of known and unknown attacks through automated protection and centralized visibility.

Seamless Security Fabric Integration

FortiGate NGFWs form the backbone of Fortinet's Security Fabric, enabling intelligent threat sharing across the digital attack surface while supporting third-party integration to improve visibility and simplify security operations.

Features and Benefits

High-performance threat protection: Industry-leading threat detection and SSL inspection to defend against encrypted malware.
Validated security effectiveness: Certified performance and threat intelligence for robust defense.
Protect mission critical applications: Ultra-low latency and scalable segmentation for internal and core environments.
Continuous risk assessment: Automation-driven workflows for efficient compliance and auditing.
Security Fabric integration: Unified visibility and response across all connected environments.
Enterprise-class management: Centralized policy control via a single pane-of-glass dashboard.

Tech Specs

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Product Number

FG-4200F

Threat Protection

Threat Protection Throughput: 45 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS): 50 Gbps

Interfaces and Modules

8x 100 GE QSFP28 / 40 GE QSFP+ Slots
16x 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots
2x 25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots
2x 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots
2x SFP+ (SR 10GE) Transceivers Included
2x GE RJ45 Management Ports
1x USB Port, 1x Console Port

System Performance (Enterprise Mix)

IPS Throughput: 52 Gbps
NGFW Throughput: 47 Gbps

Firewall Performance

IPv4 Throughput (1518/512/64 byte): 800 / 788 / 400 Gbps
IPv6 Throughput: 800 / 788 / 400 Gbps
Latency (64 byte): 3.02 μs
Packets Per Second: 600 Mpps

Sessions & Policies

Concurrent TCP Sessions: 210M / 450M
New Sessions per Second: 1M / 7M
Firewall Policies: 400,000

VPN Performance

IPsec VPN Throughput: 210 Gbps
Gateway-to-Gateway Tunnels: 40,000
Client-to-Gateway Tunnels: 200,000
SSL-VPN Throughput: 16 Gbps
Max SSL-VPN Users (Tunnel Mode): 30,000

SSL Inspection

Throughput: 50 Gbps
CPS: 34,000
Concurrent Sessions: 9M

Application Control

Throughput (HTTP 64K): 135 Gbps

CAPWAP Throughput

47 Gbps

Scalability

Virtual Domains: 10 / 500
Max FortiSwitches Supported: 300
Max FortiAPs: 8192 / 4096 (Tunnel Mode)
Max FortiTokens: 20,000
Registered FortiClients: 50,000

High Availability

Active-Active, Active-Passive, Clustering

Dimensions & Weight

132.5 x 437 x 664.8 mm
5.22 x 17.20 x 26.17 inches
Weight: 27.10 kg (59.75 lbs)

Form Factor

Rack Mount, 3RU

Power Supply

AC: 100–240V, 50/60 Hz
Redundant: 1+1, Hot Swappable
Efficiency: 80Plus Compliant

Power Consumption

Average: 931 W
Maximum: 1291 W
Heat Dissipation: 4405 BTU/h

Cooling & Noise

Fan Tray: Hot Swappable
Forced Airflow: Front to Back
Noise Level: 57 dBA

Environment & Certifications

Operating Temp: 0–40°C (32–104°F)
Storage Temp: -35–70°C (-31–158°F)
Humidity: 20–90% non-condensing
Altitude: Up to 2,250 m (7,400 ft)
Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications: USGv6 / IPv6
