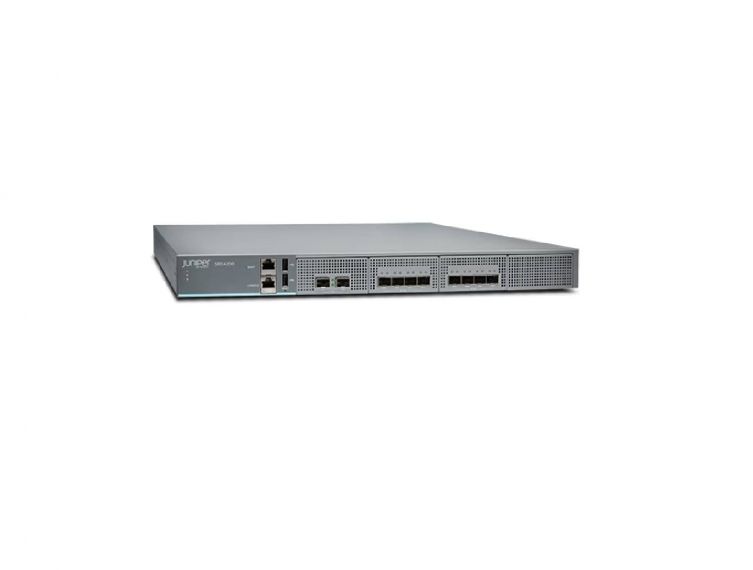

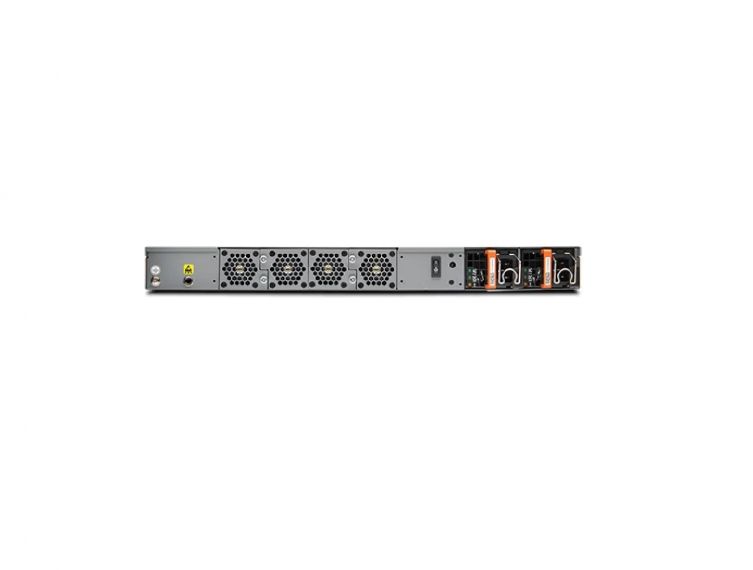

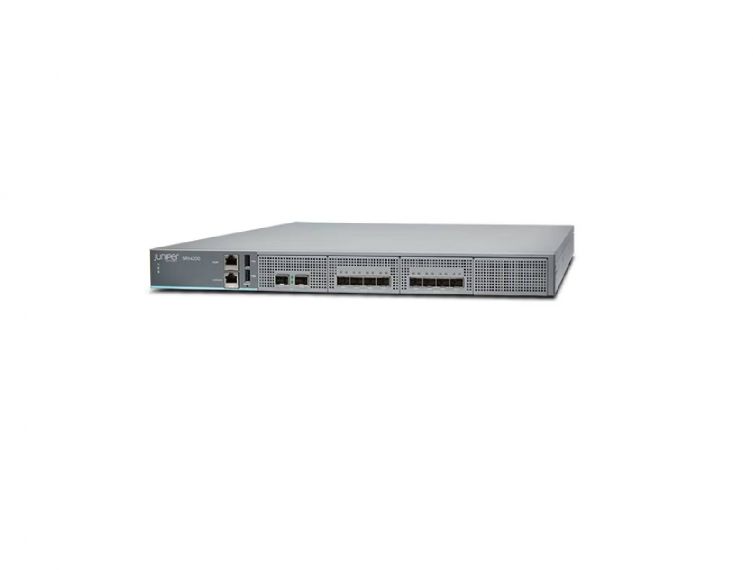

Juniper SRX4200 Firewall

Juniper Networks® SRX4200 Firewall

The SRX4200 Firewall is a high-performance, next-generation firewall (NGFW) that protects small and midsized enterprise campus, data center, and regional headquarters networks. It’s an integral part of the Juniper Connected Security portfolio, which extends security to every connection point on the network to safeguard users, data, and infrastructure against advanced threats.

The SRX4200 integrates networking and security into a single platform that provides high-performance, scalable intrusion detection/prevention and dynamically protects against malware. Centrally managed by Juniper Security Director Cloud software, it delivers IPsec VPN, fully automated SD-WAN, and easy policy management capabilities for reliable network security.

Integrated Networking and Security

The SRX4200 integrates networking and security in a single platform to deliver industry-leading intrusion prevention and malware protection with high-performance throughput, IPSec VPN, and easy policy management to reliably secure the network. Advanced application identification and classification enables greater visibility, enforcement, control, and protection over network traffic, application access, and data. These next-generation firewalls provide detailed analyses of application volume and usage, fine-grained application control policies, and prioritization of traffic based on application information and context to reduce complexity across traditional, cloud, and hybrid IT networks.

The SRX4200 delivers fully automated SD-WAN to both enterprises and service providers. Its high performance and scale allow the SRX4200 to act as VPN hubs, terminating VPN/secure overlay connections in various SD-WAN topologies.

Key Features

Advanced Threat Prevention: Dynamic threat protection with Juniper Advanced Threat Prevention (ATP), including malware sandboxing, threat intelligence feeds, and Encrypted Traffic Insights to detect malware hidden in SSL-encrypted traffic.
Next-Generation Firewall: Detect and mitigate threats using software-enabled NGFW features, including an intrusion prevention system (IPS), application security (AppSecure), user identity services, and role-based access control (RBAC). For content security, the firewall supports integrated network antivirus, antispam, and enhanced web filtering capabilities.
Secure SD-WAN: Unify control of WAN connections across multiple network interfaces while managing and securing MPLS, Internet broadband, and 4G LTE and 5G links.
AI-Predictive Threat Prevention: AI-Predictive Threat Prevention feature keeps known and zero-day threats off the network at line rate for the entire attack lifecycle—not just for 24 hours—helping your network stay safe from initial and subsequent attacks.
Juniper Secure Connect: Our highly flexible SSL VPN and IPsec application provides remote employees with dynamic, adaptive, and secure VPN access to your corporate and cloud resources.

Centralized Management and Efficiency

Designed with centralized management and operational efficiency in mind, the SRX4200 series features:

Centrally managed by Juniper Security Director Cloud software for easy policy management.
High performance and scalability to act as VPN hubs in various SD-WAN topologies.
Advanced application identification and classification for greater visibility and control.

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Connectivity

Total Onboard ports: 8x1GbE/10GbE
Onboard small form-factor pluggable plus (SFP+) transceiver ports: 8x1GbE/10GbE
Out-of-Band (OOB) management ports: 1 x 1 GbE G (RJ-45)
Dedicated high availability (HA) ports: 2 x 1 GbE SFP
Console: 1 (RJ-45)
USB 3.0 ports (Type A): 1

Storage

System memory (RAM): 64 GB
Storage (SSD): 240 GB with 1+1 RAID

Dimensions and Power

Form factor: 1U
Size (W x H x D): 17.48 x 1.7 x 25 in
Weight (device and PSU): Chassis with two AC power supplies: 29 lb (13.15 kg), Chassis with package for shipping: 47.5 lb (21.54 kg)
Redundant PSU: 1+1
Power supply: 2x 650 W redundant AC-DC/DC-DC PSU
Average power consumption: 200 W
Average heat dissipation: 685 BTU / hour
Maximum current consumption: 4A (for 110 V AC power), 2A (for 220 V AC power)
Maximum inrush current: 50 A for 1 cycle of AC

Environment and Regulatory Compliance

Acoustic noise level: 70 dBA
Airflow/cooling: Front to back
Operating temperature: 32° to 104° F (0° to 40° C at 6000 ft altitude)
Operating humidity: 5% to 90% non-condensing
Mean time between failures (MTBF): Over 221,729 hours (about 25.3 years)
FCC classification: Class A
RoHS compliance: RoHS 2

Performance and Scale

Firewall (IMIX packet size) throughput Gbps: 44
Firewall (1518B packet size) throughput Gbps: 80
IPsec VPN (IMIX packet size) throughput Gbps: 29.6
Application Visibility and Control in Gbps: 39.8
IPS recommended in Gbps (TPS/CPS): 27.7
Next-generation firewall in Gbps (TPS/CPS): 18
Secure Web Access Firewall in Gbps (TPS): 13.3
Connections per second (CPS): 500,000
Maximum security policies: 60,000
Maximum concurrent sessions (IPv4 or IPv6): 10 Million
Route table size (RIB/FIB) (IPv4): 2 Million/1 Million
IPsec VPN tunnels: 7500
Number of remote access/SSL VPN (concurrent) users: 7500
