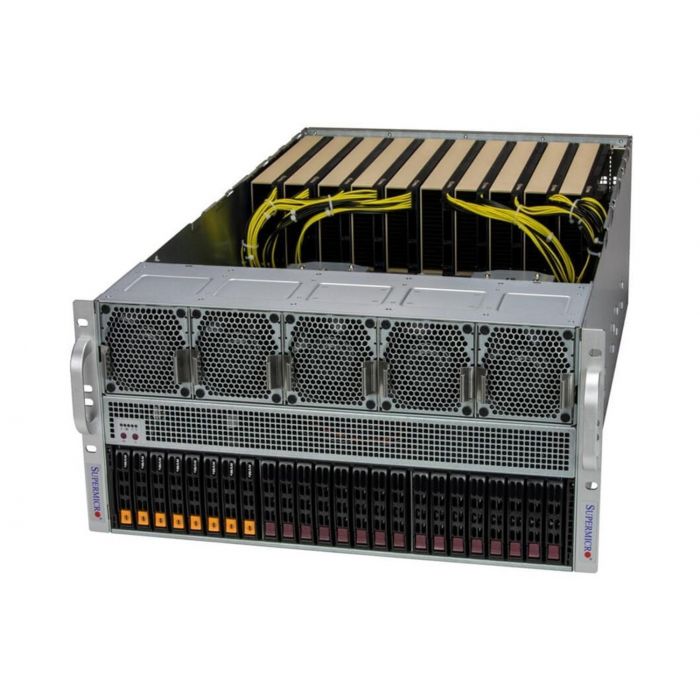

Supermicro SYS-521GE-TNRT GPU SuperServer DP Intel 5U Dual-Root PCIe GPU System

Earn 192,500 points when you buy me!

Rating:
96 % of 100
Special Price $192,500.00 Regular Price $252,686.55
In stock
SKU
GP-SPR-SYS-521GE-TNRT

Supermicro SYS-521GE-TNRT is a high-performance GPU SuperServer optimized for AI, HPC, and deep learning workloads. Supports up to 10 NVIDIA GPUs, dual Intel Xeon processors, and advanced liquid cooling.

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Product SKUs

  • SuperServer SYS-521GE-TNRT
  • SuperServer SYS-521GE-TNRT-G1 Gold Series version with pre-configured components

Motherboard

  • Super X13DEG-OA

Processor

  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 385W TDP CPUs (Liquid Cooled)

GPU

  • Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
  • NVIDIA PCIe: H100 NVL, RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), RTX 6000 Ada Generation, L40S, L4
  • PCIe 5.0 x16 Switch Dual-Root interconnect
  • NVIDIA® NVLink® Bridge (optional)
  • NVIDIA Certified

System Memory

  • 32 DIMM slots
  • Up to 4TB 5600MT/s ECC DDR5 RDIMM (1DPC)
  • Up to 8TB 4400MT/s ECC DDR5 RDIMM (2DPC)
  • Memory Voltage: 1.1V

On-Board Devices

  • Chipset: Intel® C741
  • Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
  • Video: 1 VGA port
  • BIOS Type: AMI 32MB SPI Flash EEPROM

Management

  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)
  • Power-on mode for AC power recovery
  • ACPI Power Management

Security

  • TPM 2.0
  • Silicon Root of Trust – NIST 800-193 Compliant
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
  • PC Health Monitoring
  • CPU Monitoring: Cores, Chipset Voltages, Memory
  • Fans with tachometer and PWM control
  • Temperature Monitoring for CPU & chassis environment

Chassis

  • Form Factor: 5U Rackmount (CSE-528GTS-R5K40P)
  • Dimensions: 8.75" H x 17.2" W x 31" D
  • Package Size: 17.32" (H) x 28.34" (W) x 42.51" (D)
  • Weight: Gross 100 lbs (45.3 kg), Net 65.5 lbs (29.7 kg)
  • Color: Black Front & Silver Body
  • LEDs: HDD, Network, Power, Overheat & Power Fail indicators
  • Buttons: Power On/Off, System Reset

Expansion Slots

  • 13 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

  • Default: 16 bays (8 x 2.5" NVMe + 8 x 2.5" SATA hot-swap)
  • Option A: 24 bays (16 x 2.5" NVMe + 8 x 2.5" SATA hot-swap)
  • 2 x M.2 NVMe slots (M-key)

System Cooling

  • Up to 10 heavy duty fans with optimal speed control
  • 1 Air Shroud
  • Optional Direct to Chip (D2C) Liquid Cooling

Power Supply

  • 4 x 2700W Redundant Titanium Level (96%) power supplies
  • Input: 200-240Vac / 50-60Hz or 240Vdc (CQC only)
  • +12V Max: 225A
  • +12V SB Max: 4A

Operating Environment

  • Operating Temp: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temp: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 8% to 90% (non-condensing)
  • Non-operating Humidity: 5% to 95% (non-condensing)
More Information
MFG Number SYS-521GE-TNRT
Condition Item Condition : Brand New
Price $252,686.55
Show Product Will Be Available Soon on FE No
Estimated time of Delivery Estimated Delivery 4 Weeks.
Product Card Description

Supermicro SYS-521GE-TNRT GPU SuperServer delivers industry-leading compute density and reliability for AI, machine learning, and scientific computing. Featuring dual Intel Xeon Scalable CPUs, support for up to 10 NVIDIA GPUs, advanced direct liquid cooling, and flexible storage options. Ideal for data centers and high-performance environments.
