Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU

Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU

From
$0.00
compare favorite favorite
Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU
Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU
Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU
Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU
Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU
See all specs
Have questions about this purchase?
Chat with Uvation Assistant

Supermicro GPU SuperServer SYS-422GA-NBRT-LCC with DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU

SYS-422GA-NBRT-LCC-G1
Item Condition : Brand New
Hurry! Other 1 people are watching this product
SKU
SM-SYS-422GA-NBRT-LCC-G1
Add a Review
Be the first to review this product
$0.00
In stock
Free shipping
could be yours in 1 - 5 days
Hurry! Other 1 people are watching this product

• High Performance Computing
• AI/Deep Learning Training
• Business Intelligence & Analytics

Details
AI Server Key Applications

Key Applications

Deploy powerful compute for:

  • Scientific Research
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Finance Services and Fraud Detection
  • AI/Deep Learning Training and Inference
  • Large Language Model (LLM) and Generative AI
  • High Performance Computing (HPC)
  • Autonomous Vehicle Technologies
Supermicro Server Open View

Key Features

  • *Complete liquid-cooled rack integration is required for purchase*
  • Dual Intel® Xeon® 6900 series processors with P-cores
  • 8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
  • 24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
  • 10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
  • 8x front hot-swap 2.5" NVMe U.2, 2x front hot-swap NVMe M.2
  • 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI
Tech Specs

Tech Specs & Customization

expert_image
Still have Questions?
Call +1 833 631 7912

Product SKUs

  • SuperServer SYS-422GA-NBRT-LCC
  • SuperServer SYS-422GA-NBRT-LCC-G1 Gold Series (Pre-configured)

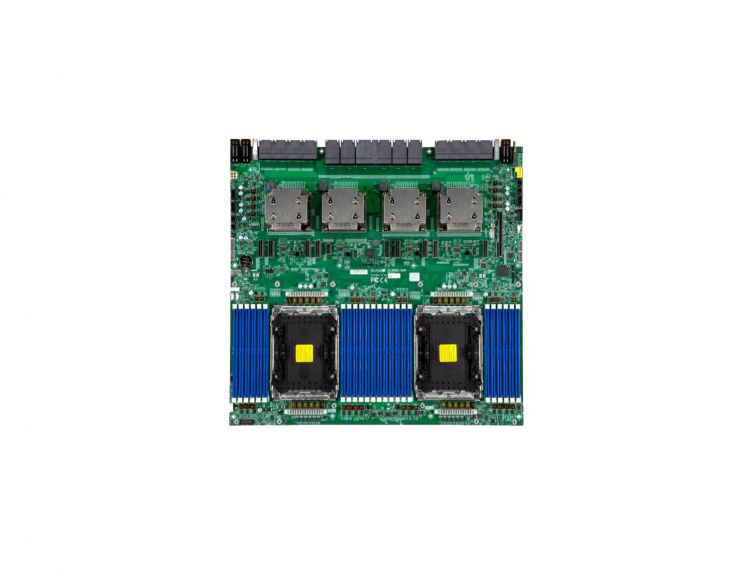

Motherboard

  • Super X14DBG-DAP

Processor

  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
  • Up to 128C/256T; Up to 504MB Cache per CPU
  • Supports up to 500W TDP CPUs (Liquid Cooled)

GPU

  • Max 8 onboard GPUs
  • NVIDIA SXM: HGX B200 8-GPU (180GB)
  • CPU-to-GPU Interconnect: PCIe 5.0 x16
  • GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™

Memory

  • 24 DIMM slots
  • Up to 6TB 6400MT/s ECC DDR5 RDIMM (1DPC)
  • Up to 6TB 8800MT/s ECC DDR5 MRDIMM (1DPC)
  • Voltage: 1.1V

On-Board Devices

  • Chipset: System on Chip
  • Network: 2 RJ45 10GbE (Intel® X710-AT2)

Management

  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

Security

  • TPM 2.0
  • Silicon Root of Trust (NIST 800-193 Compliant)
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Remote Attestation (Supply Chain Security)
  • Runtime BMC Protections
  • System Lockdown

Monitoring

  • CPU Monitoring: Core, Chipset, Memory
  • Voltage Regulator: 8+4 Phase-switching
  • Fan: Tachometer, Speed Control, PWM connectors
  • Temperature: CPU & Chassis Monitoring

Form Factor

  • 4U Rackmount
  • Chassis Model: CSE-GP403TS-R000NP

Dimensions & Weight

  • Height: 6.85" (174 mm)
  • Width: 17.6" (449 mm)
  • Depth: 35.25" (895.35 mm)
  • Package: 16.14"(H) x 50.39"(W) x 28.7"(D)
  • Net Weight: 203 lbs (92 kg)
  • Gross Weight: 236 lbs (107 kg)

Front Panel

  • LEDs: Network Activity, Overheat, UID
  • Buttons: Power, UID/Reset

Expansion Slots

  • 10 x PCIe 5.0 x16 LP slots
  • 2 x PCIe 5.0 x16 FHHL slots

Storage

  • 8 front hot-swap 2.5" NVMe bays
  • 2 M.2 NVMe slots (M-key)

Cooling

  • 5 x 60mm Fans
  • Direct to Chip (D2C) Cold Plate (Liquid Cooling)

Power Supply

  • 4x 6600W Redundant (2+2), Titanium Level (96%)
  • Input Range: 200–240Vac (varies by wattage)
  • +12V Max: 130A / 12V SB Max: 4A
  • Output Type: Backplanes (gold finger)

Operating Environment

  • Operating Temp: 10°C to 35°C (50°F to 95°F)
  • Non-Operating Temp: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 8% to 90% (non-condensing)
  • Non-Operating Humidity: 5% to 95% (non-condensing)
