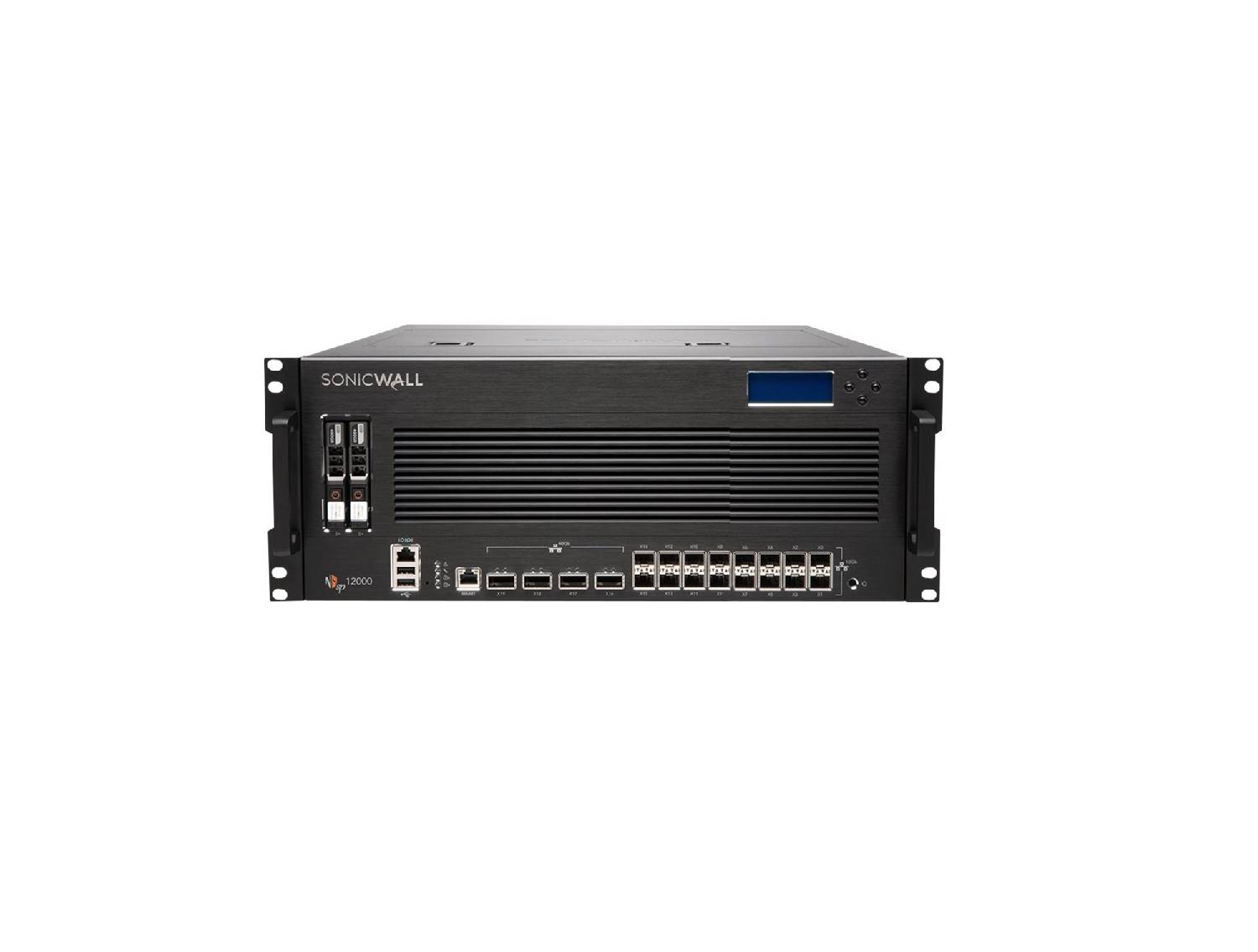

SonicWall NSsp 12800 Security Appliance

Advanced Threat Protection

Stop Zero-Day and unknown malware in its tracks with Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI). Pair robust on-box technology with cloud-based updates to stay ahead of the threats.

Multi-Instance Firewall

Take a modern approach to legacy multi-tenancy with Multi-Instance using containerized architecture. Run multiple independent firewall instances, software versions, and configurations on the same hardware without managing multiple appliances.

Unified Policy for Modern Enterprises

Unified Policy allows administrators to combine Layer 3 to Layer 7 access and security rules into a single policy to reduce rule management overhead. Intuitive policy creation and visual workflow reduce configuration errors and deployment time for a better overall security posture.

Scalability and Availability

With multiple configuration options and easy deployment build a security perimeter that will grow with you. Keep your business up and safe from threats to your network and beyond with redundant power supplies, fans and a built-in storage module to store logs, reports, firmware backup files and more.

High-Speed Performance

Featuring high port density and multiple 100/40/10 GbE interfaces, process several million simultaneous encrypted and unencrypted connections with unparalleled threat prevention technology. Get more from your investment as resource utilization and connection requirements grow with the explosion of connected devices and users.

Low Total Cost of Ownership

Reduce costs with budget-friendly pricing for a leading-edge hardware and software intelligence in a high-performance platform. Streamline operations with a centralized single-pane-of-glass management.

World-Class Threat Intelligence

SonicWall Capture Labs Threat Research team gathers, analyzes and vets information around the clock and around the globe. With a dedicated team of cyber security professionals, advanced machine learning algorithms, and more than one million security sensors spread over more than 200 countries and territories, SonicWall delivers up-to-date, world-class intelligence so decisions can be rendered in nanoseconds.

Flexible Deployment Options

Deploy at the network edge or the data center core. Deploy over a virtualized and cloud platform. Easily adapt to service-level changes. Get advanced protection that can be custom fit for your network needs, no matter how complex.

Cloud-Based and On-Premises Centralized Management

Gain greater visibility into your enterprise even as it becomes more complex and spans on-prem, in-cloud and hybrid environments. The NSsp firewalls can be tightly integrated into the SonicWall ecosystem for single-pane-of-glass management, licensing, reporting and analytics.

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Firewall/VPN Performance

Firewall Inspection Throughput: 120.3 Gbps
Application Inspection Throughput: 91.0 Gbps
IPS Throughput: 73.0 Gbps
Anti-Malware Inspection Throughput: 67.5 Gbps
IMIX Throughput: 29.0 Gbps
TLS/SSL Decryption & Inspection Throughput (DPI SSL): 17.6 Gbps
VPN Throughput: 47.0 Gbps
Connections per Second: 860,000/sec
Maximum Connections (SPI): 80,000,000
Maximum Connections (DPI): 32,000,000
Maximum Connections (DPI SSL): 2,600,000

VPN

Site-to-Site VPN Tunnels: 25,000
IPSec VPN Clients (Maximum): 2,000 (10,000)
SSL VPN NetExtender Clients (Maximum): 2 (3,000)
Encryption/Authentication: DES, 3DES, AES (128/192/256-bit), MD5, SHA-1, Suite B Cryptography
Key Exchange: Diffie Hellman Groups 1, 2, 5, 14v
Route-Based VPN: RIP, OSPF, BGP

Networking

IP Assignment: Static, DHCP, PPPoE, L2TP, PPTP client
NAT Modes: 1:1, many:1, 1:many, overlapping IPs, PAT, transparent
VLAN Interfaces: 512
Routing Protocols: BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS: Bandwidth priority, max/guaranteed bandwidth, DSCP marking, 802.1p
Authentication: LDAP, XAUTH/RADIUS, SSO, Novell, CAC, internal DB, Citrix, Terminal Services
VoIP: Full H323-v1-5, SIP
Standards: TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

Hardware

Interfaces: 4 x 40-GbE QSFP+, 16 x 10-GbE SFP+
Power Supply: Dual Redundant 1,200W
Fans: Dual, Removable
Input Power: 100-240 VAC, 50-60 Hz
Max Power Consumption: 965W
MTBF @25ºC: 91,118 hours / 10.4 years

Form Factor & Dimensions

Form Factor: 4U Rack Mountable
Dimensions: 24.0 x 16.9 x 7.1 in (61 x 43 x 18 cm)
Weight: 67.2 lb (30.5 kg)
WEEE Weight: 75.6 lb (34.3 kg)
Shipping Weight: 91.1 lb (41.3 kg)

High Availability

Active/Passive with State Sync
Active/Active DPI with State Sync
Active/Active Clustering

Regulatory & Environmental

Major Regulatory: FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL, TUV, CB, Mexico CoC, WEEE, REACH, BSMI, KCC, ANATEL
Certifications (in progress): ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP, UC APL, USGv6, CsFC
Operating Temperature: 32°–105°F (0°–40°C)
Storage Temperature: -40° to 158°F (-40° to 70°C)
Humidity: 10–95% non-condensing

Manufacturing Number

MFG Number: 02-SSC-0378
