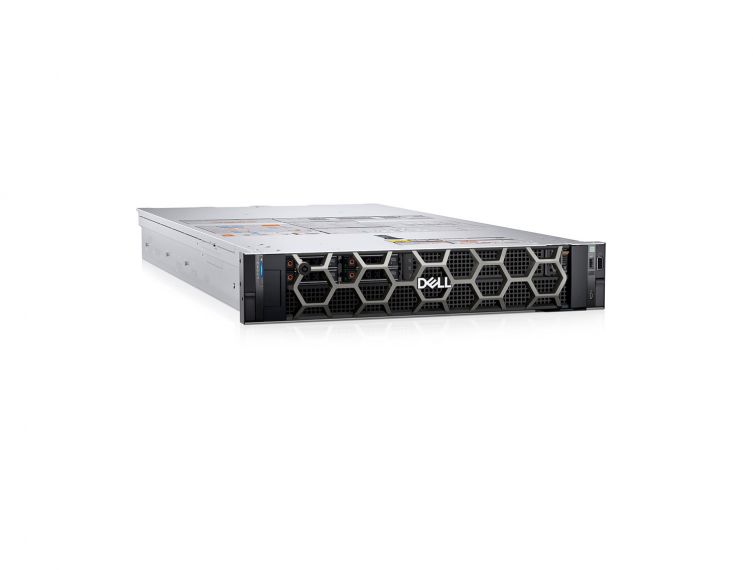

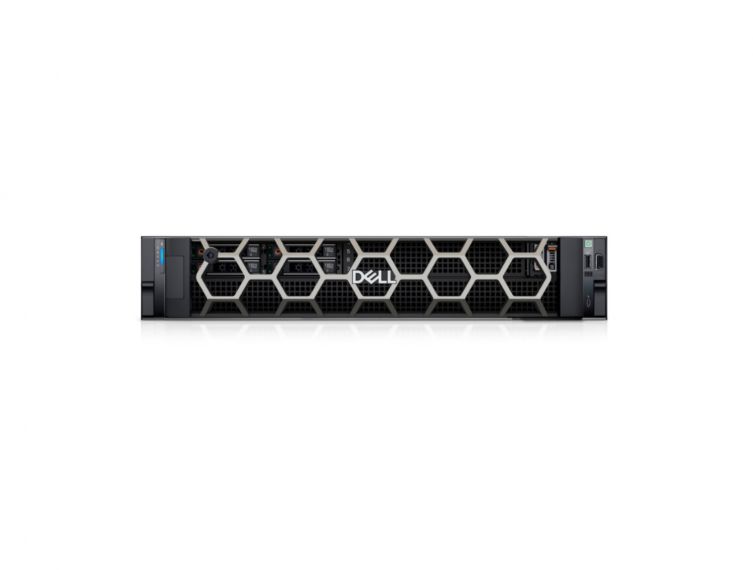

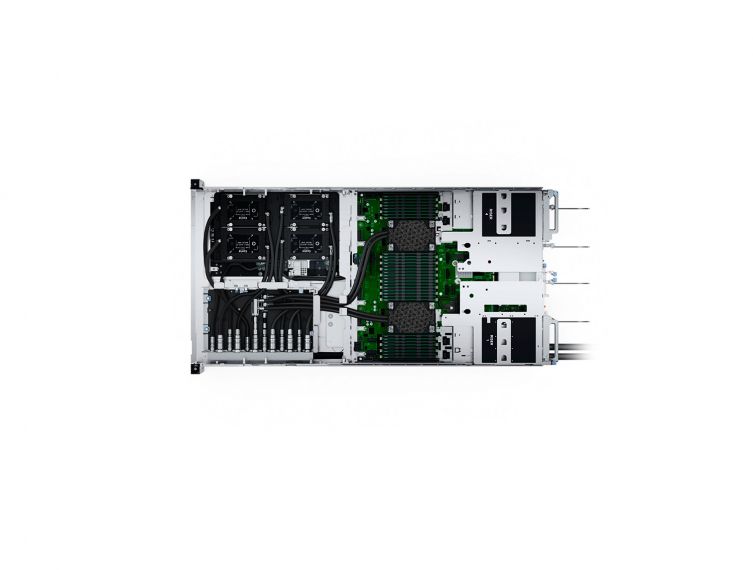

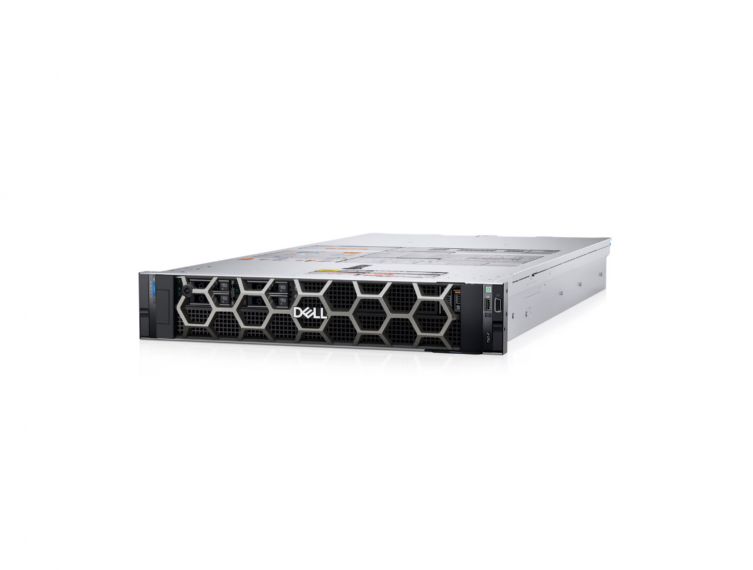

PowerEdge XE9640 Rack Server with 4 NVIDIA® H100® GPU's

PowerEdge XE9640 rack server resources

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

Accelerate your performance

Rapidly develop, train and deploy large machine learning models. Accelerate complex HPC applications and drive a wide range of complex processing needs. XE9640 delivers outstanding performance using Intel^® CPUs and new Intel^® Data Center Max Series GPUs.

Break through boundaries with two 4th generation Intel^® Xeon^® processors and four Intel^® Max Series 1550 GPUs interconnected with Xe Link or four NVIDIA^® H100 GPUs interconnected with NVLink
Increase performance and speed with liquid cooled CPUs and GPUs
Be more efficient with a slim 2U form factor and rack installation for high-density deployments

Built so you can scale seamlessly

Deploy and enable HPC applications and AI workloads across your business.

Efficiently cool data center and HPC cluster operations with Dell Smart Cooling technology with Direct Liquid Cooling on all CPUs and GPUs
Scale effectively with up to 32 DDR5 memory DIMM slots, up to four drives and up to 4 PCIe Gen5 expansion slots
Deploy AI operations with confidence thanks to built-in security features including Secured Component Verification and Silicon Root of Trust

Tech Specs & Customization

Still have Questions?

Call +1 833 631 7912

Processor

Two 4th Generation Intel® Xeon® Scalable processors with up to 56 cores per processor

Cooling Options

Liquid Cooling with internal manifold

Operating System

RedHat® Enterprise Linux

Chipset

Intel® C741 chipset

Accelerators

4 Intel PVC 600W XeLINK

Memory

DIMM Speed

Up to 4800 MT/s

Memory Type

RDIMM

Memory Module Slots

Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor)

Maximum RAM

RDIMM 1 TB max

Storage

Front Bay

Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB

Storage Controllers

Internal Boot

Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or USB

Software RAID

S160

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Consoles

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Tools

Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations

BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize™ Operations Manager

Power Supplies

2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap

Fans

Up to four sets (dual fan module) High performance (HPR) gold grade fans
All are hot swap fans

Ports

Network Options

1 x OCP 3.0 (optional)
2 x 1GbE LOM (optional)

Front Ports

1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

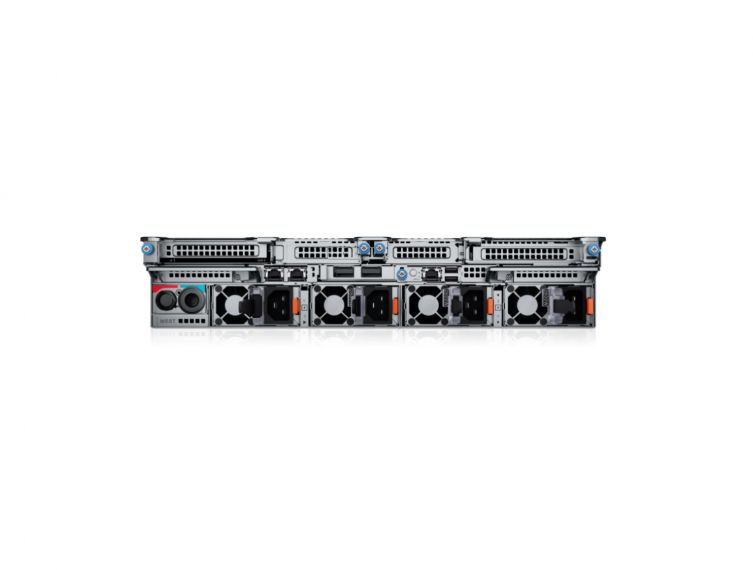

Rear Ports

1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x RJ45 iDRAC9 ethernet port

Slots

PCIe

2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)

Bezel

Optional LCD bezel or security bezel

Form Factor

2U rack server

Dimensions & Weight

Height

86.8 mm (3.41 inches)

Width

482 mm (18.97 inches)

Depth

926.5 mm (36.47 inches) with bezel
912.8 mm (35.93 inches) without bezel

Weight

43.2 kg (95.23 pounds)

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
