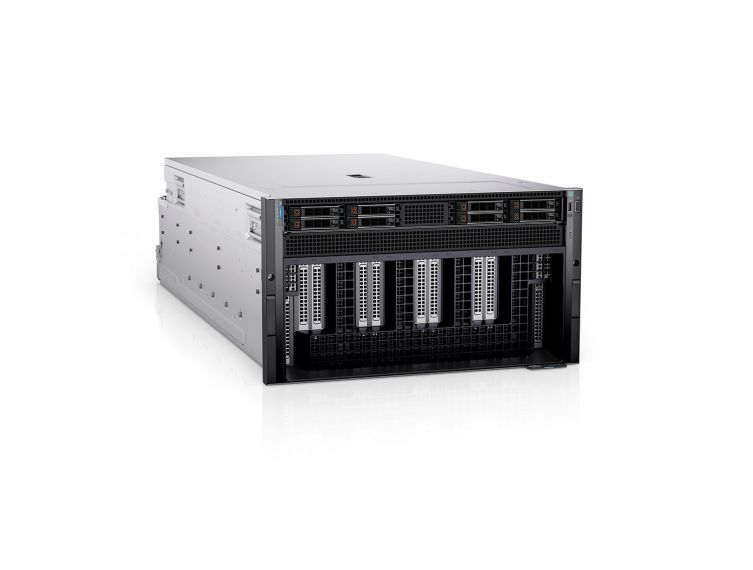

Dell PowerEdge XE9680 Rack Server with 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs

Processor

• Two 5th Generation Intel® Xeon® Scalable processors with up to 64 cores per processor
• Two 4th Generation Intel® Xeon® Scalable processors with up to 56 cores per processor

Operating System

• Canonical® Ubuntu® Server LTS
• Red Hat® Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Chipset

• Intel® C741 chipset

Accelerators

• 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
• 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
• 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity

Memory

DIMM Speed
• Up to 5600 MT/s on the 5th Generation Intel® Xeon® Scalable processors
• Up to 4800 MT/s on the 4th Generation Intel® Xeon® Scalable processors

Memory Type
• RDIMM

Memory Module Slots
• 32 DDR5 DIMM slots

Maximum RAM
• RDIMM 4 TB max

Storage

Front Bays
• Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
• Up to 16 x E3.S NVMe direct drives max 122.88 TB

Storage Controllers

Internal Boot
• Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
• Software RAID: S160

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

Consoles
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

Tools
• Dell System Update
• Dell Repository Manager
• Enterprise Catalogs
• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI

OpenManage Integrations
• BMC Truesight
• OpenManage Integration with ServiceNow

Power Supplies

• 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap

Fans
• Up to 6 High performance (HPR) gold grade fans installed in mid tray
• Up to 10 High performance (HPR) gold grade fans installed on the rear of the system
• All are hot swap fans

Ports

Network Options
• 1 x OCP 3.0 (optional)
• 2 x 1GbE LOM (optional)

Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Rear Ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x RJ45 iDRAC9 ethernet port

Slots

PCIe
• Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length

Bezel

• Optional LCD bezel or security bezel

Form Factor

• 6U rack server

Dimensions & Weight

Height
• 10.36 in. (263.20 mm)
Width
• 18.97 in. (482.00 mm)
Depth
• 39.71 in. (1008.77 mm) with bezel
• 39.17 in. (995.00 mm) without bezel
Weight
• up to 249.8 lb (113.30 kg)
